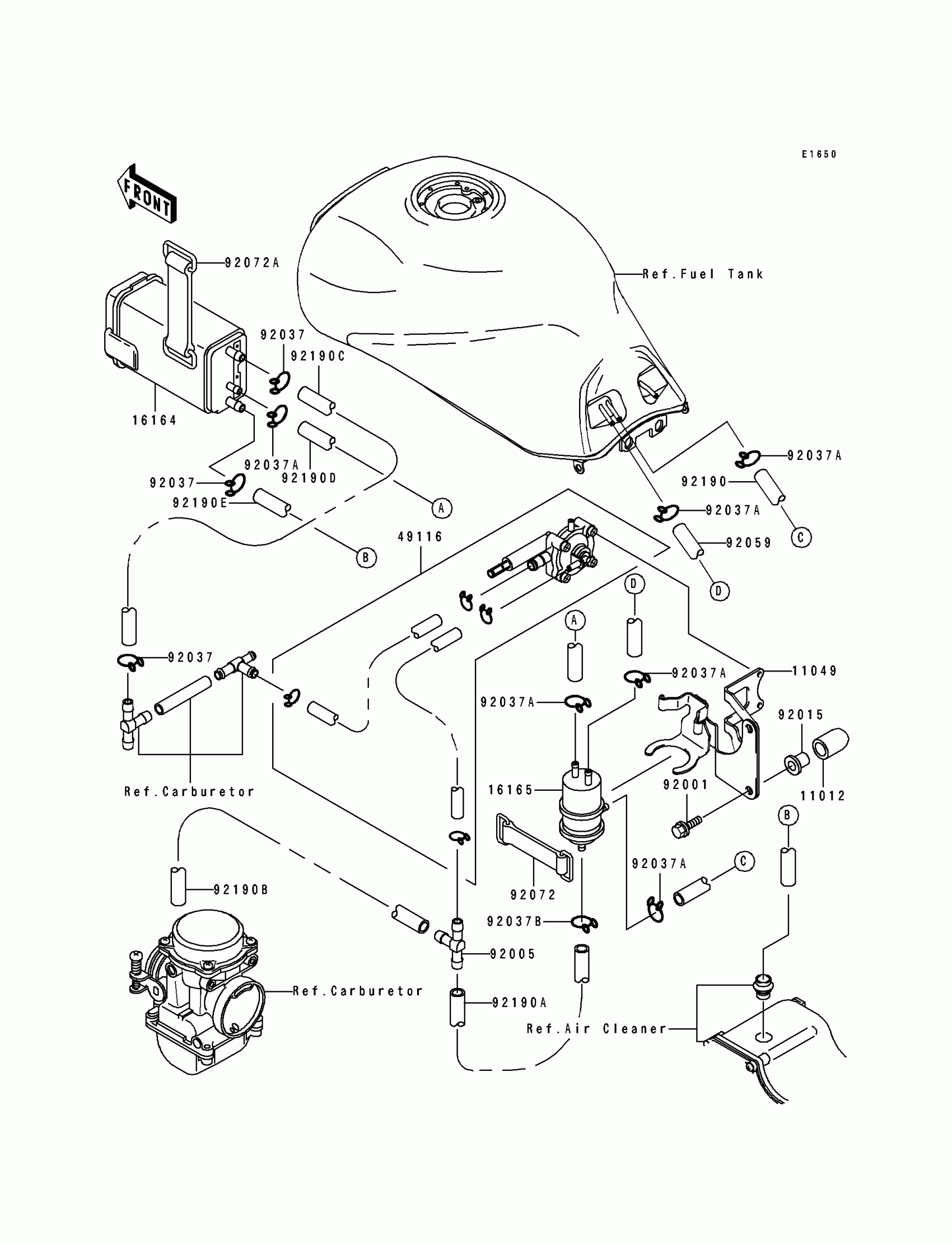

Kawasaki GPZ 1100 ABS Fuel Evaporative System Diagram

Description

Price

11012

CAP

11012-1438

$4.96

11049

BRACKET

11049-1259

Unavailable

16164

CANISTER

16164-1064

$145.44

16165

SEPARATOR

16165-1001

$90.01

49116

VALVE-ASSY

49116-1137

Unavailable

92001

BOLT,6X20,W/WASHER

92001-1791

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92015

NUT

92015-1700

$8.58

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP

92037-1712

$5.00

92059

TUBE,5X10X260,BLUE

92059-1728

$32.14

92072

BAND,L=50

92072-066

$16.08

92072A

BAND,L=100

92072-071

$9.53

92190

TUBE,TANK-SEPARATOR,RED

92190-1522

Unavailable

92190A

TUBE

92190-1623

Unavailable

92190B

TUBE,4X9X590,WHITE

92190-1624

Unavailable

92190C

TUBE,7X12X560,YELLOW

92190-1625

Unavailable

92190D

TUBE,5X10X1060,BLUE

92190-1626

Unavailable

92190E

TUBE,7X12X750,GREEN

92190-1627

Unavailable
