Description

Price

11009

GASKET,FORK DRAIN PLUG

11009-1553

$5.17

44005

PIPE-LEFT FORK OUTER

44005-1351

Unavailable

44006

PIPE-RIGHT FORK OUTER

44006-1349

$359.21

44013

PIPE-FORK INNER

44013-1408

$417.64

44022

CYLINDER-FORK

44022-1305

Unavailable

44026

SPRING-FRONT FORK

44026-1578

Unavailable

44029

SEAT-FORK SPRING

44029-1147

$45.76

44037

HOLDER-FORK UNDER

44037-1336

Unavailable

44039

HOLDER-FORK UPPER

44039-1258

Unavailable

44065

BUSHING-FRONT FORK

44065-1085

$32.93

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1086

$32.93

44070

DAMPER-ASSY,FORK

44070-1408

$1,370.32

92002

BOLT,FORK DRAIN

92002-1650

$14.64

92022

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92026

SPACER,FORK,L=183

92026-1465

Unavailable

92033

RING-SNAP

92033-1036

$6.51

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

$19.34

92055

RING-O

92055-1321

$1.35

92093

SEAL,FORK OUTER TUBE

92093-1359

$21.09

92150

BOLT,SOCKET,8X25

92150-1172

$2.06

92150A

BOLT,SOCKET,8X40

92150-1194

$2.80

92150B

BOLT,FLANGED,10X45

92150-1210

$9.22

92200

WASHER

92200-1191

$8.69

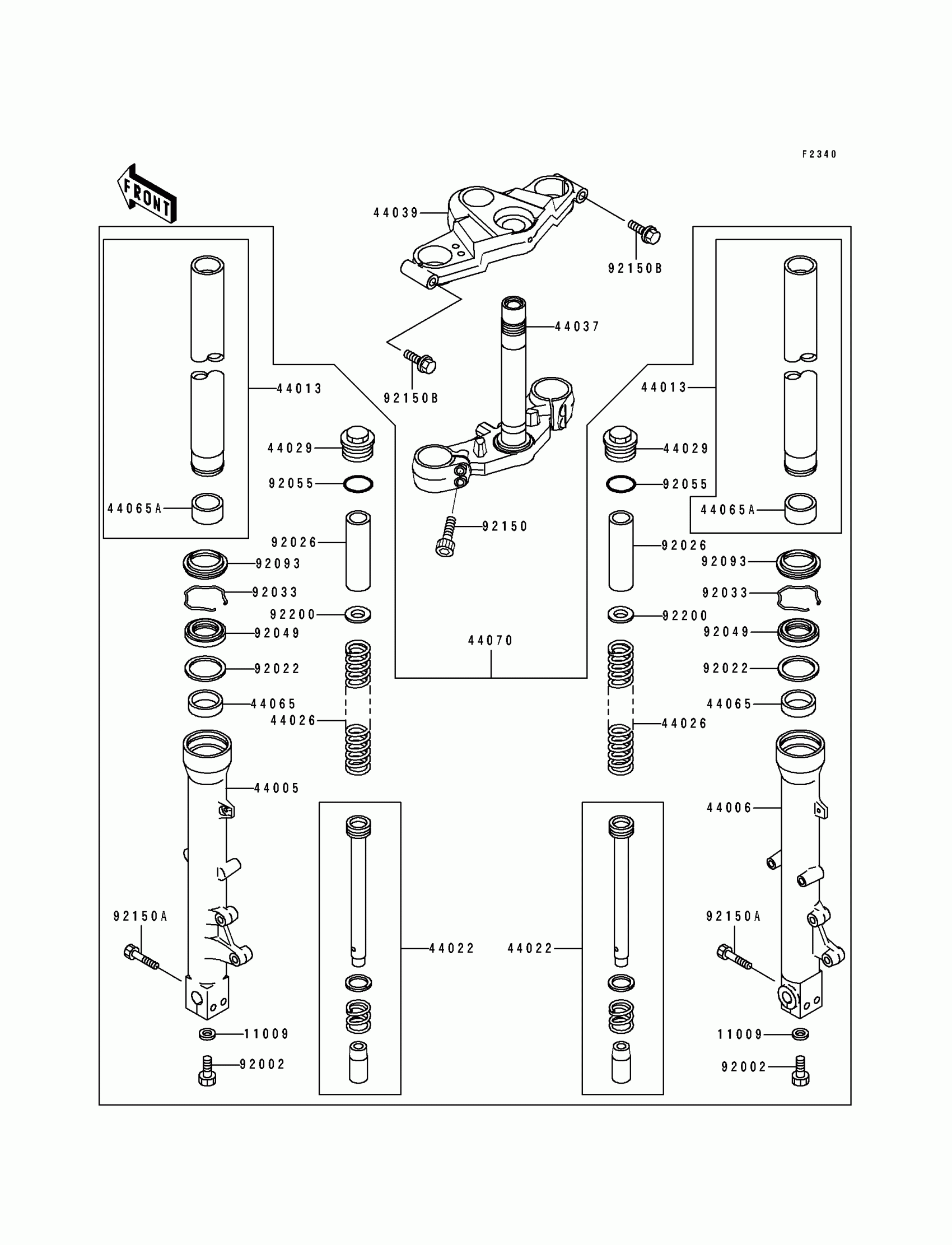

Kawasaki GPZ 1100 ABS Front Fork Diagram

GASKET,FORK DRAIN PLUG

PIPE-LEFT FORK OUTER

PIPE-RIGHT FORK OUTER

PIPE-FORK INNER

CYLINDER-FORK

SPRING-FRONT FORK

SEAT-FORK SPRING

HOLDER-FORK UNDER

HOLDER-FORK UPPER

BUSHING-FRONT FORK

BUSHING-FRONT FORK,INNER PIPE

DAMPER-ASSY,FORK

BOLT,FORK DRAIN

WASHER,FORK OUTER TUBE

SPACER,FORK,L=183

RING-SNAP

SEAL-OIL,FORK OUTER TUBE

RING-O

SEAL,FORK OUTER TUBE

BOLT,SOCKET,8X25

BOLT,SOCKET,8X40

BOLT,FLANGED,10X45

WASHER
