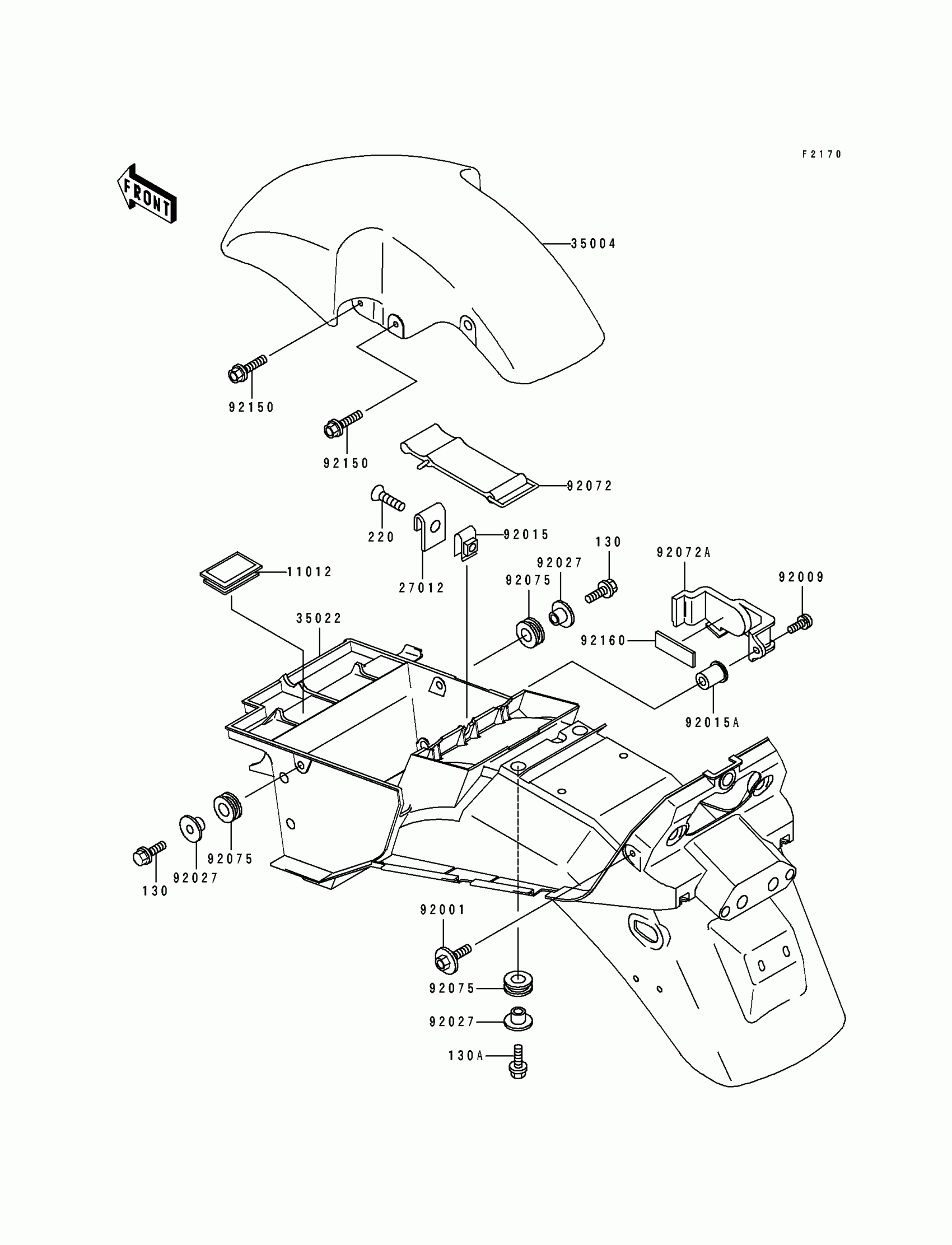

Kawasaki GPZ 1100 ABS Fenders Diagram

Description

Price

11012

CAP,TERMINAL,BATTERY(+)

11012-1939

Unavailable

27012

HOOK,BATTERY CASE

27012-1316

$11.01

35004

FENDER-FRONT,P.G.BLACK

35004-1328-RL

$215.92

35022

FENDER-COMP-REAR

35022-1309

Unavailable

92001

BOLT,6X14,BLACK

92001-1847

$3.96

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92015A

NUT

92015-1700

$8.58

92027

COLLAR,L=9.1,BLACK

92027-1935

$6.15

92072

BAND,TOOL

92072-1176

$15.60

92072A

BAND,BATTERY

92072-1318

Unavailable

92075

DAMPER

92075-1634

$4.69

92150

BOLT,6X16

92150-1909

$4.49

92160

DAMPER

92160-1075

$6.57

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED,6X18

130J0618

$1.69

220

SCREW-PAN-CROS,6X12

220C0612

$4.35
