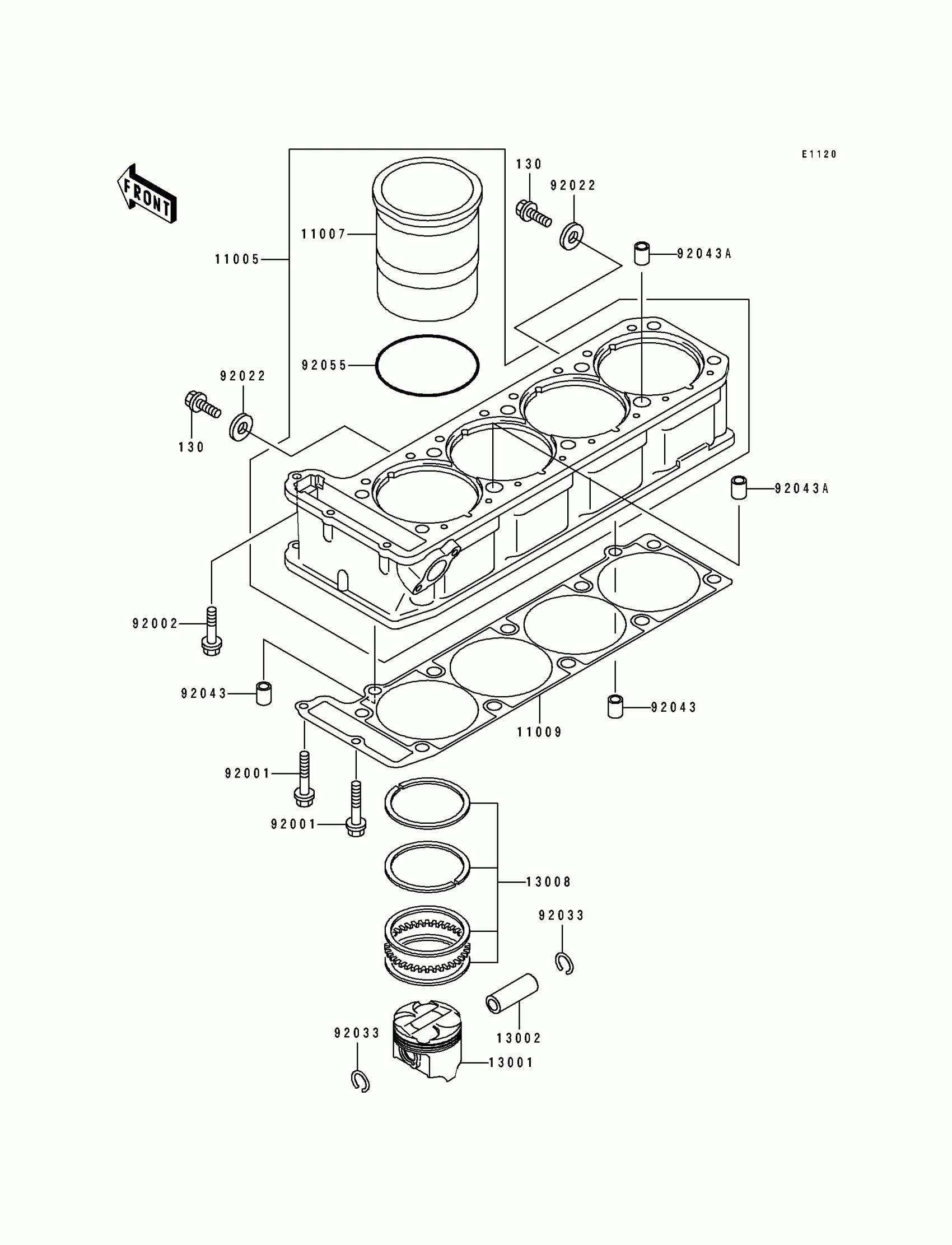

Kawasaki GPZ 1100 ABS Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1765

Unavailable

11007

LINER-CYLINDER

11007-1114

$157.86

11009

GASKET,CYLINDER BASE

11009-1847

$35.90

13001

PISTON-ENGINE

13001-1397

$142.53

13002

PIN-PISTON

13002-1058

$28.34

13008

RING-SET-PISTON

13008-1152

$76.81

92001

BOLT,6X38

92001-1899

$4.39

92002

BOLT,FLANGED,M6X30

92002-1138

$4.34

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP,20.5X1.2

92033-1099

$0.62

92043

PIN,8.2X10X14

92043-1264

$0.64

92043A

PIN,11.5X14X14

92043-1279

$5.00

92055

RING-O,82.6X2.4

92055-1465

$6.56

130

BOLT-FLANGED,6X10

130C0610

$3.84
