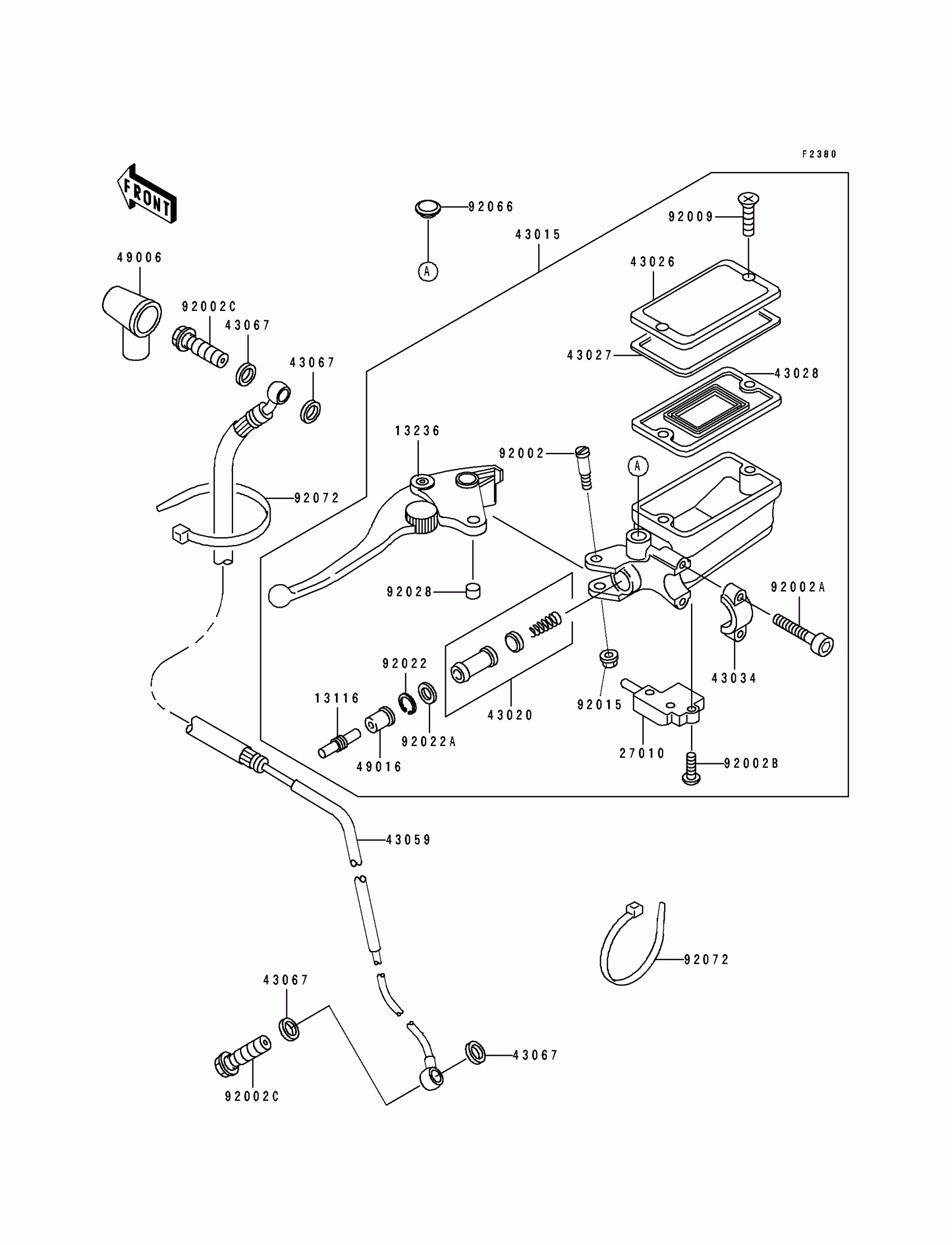

Kawasaki GPZ 1100 ABS Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$32.77

13236

LEVER-COMP,CLUTCH

13236-1186

$55.77

27010

SWITCH,CLUTCH

27010-1171

$36.01

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1499

$433.44

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$65.22

43026

CAP-BRAKE

43026-1076

$42.62

43027

PLATE-DIAPHRAGM

43027-1055

$7.81

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1054

$35.87

43059

HOSE-BRAKE,CLUTCH

43059-1878

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$2.15

49006

BOOT,DUST

49006-1040

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002B

SCREW,4X16

92002-1325

$7.99

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92022

CIRCLIP

92022-1605

$5.00

92022A

WASHER,PISTON

92022-1606

$4.69

92028

BUSHING,MASTER CYLINDER

92028-1310

$14.76

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92072

BAND,L=202

92072-1195

$1.56
