TRACK - SUSPENSION

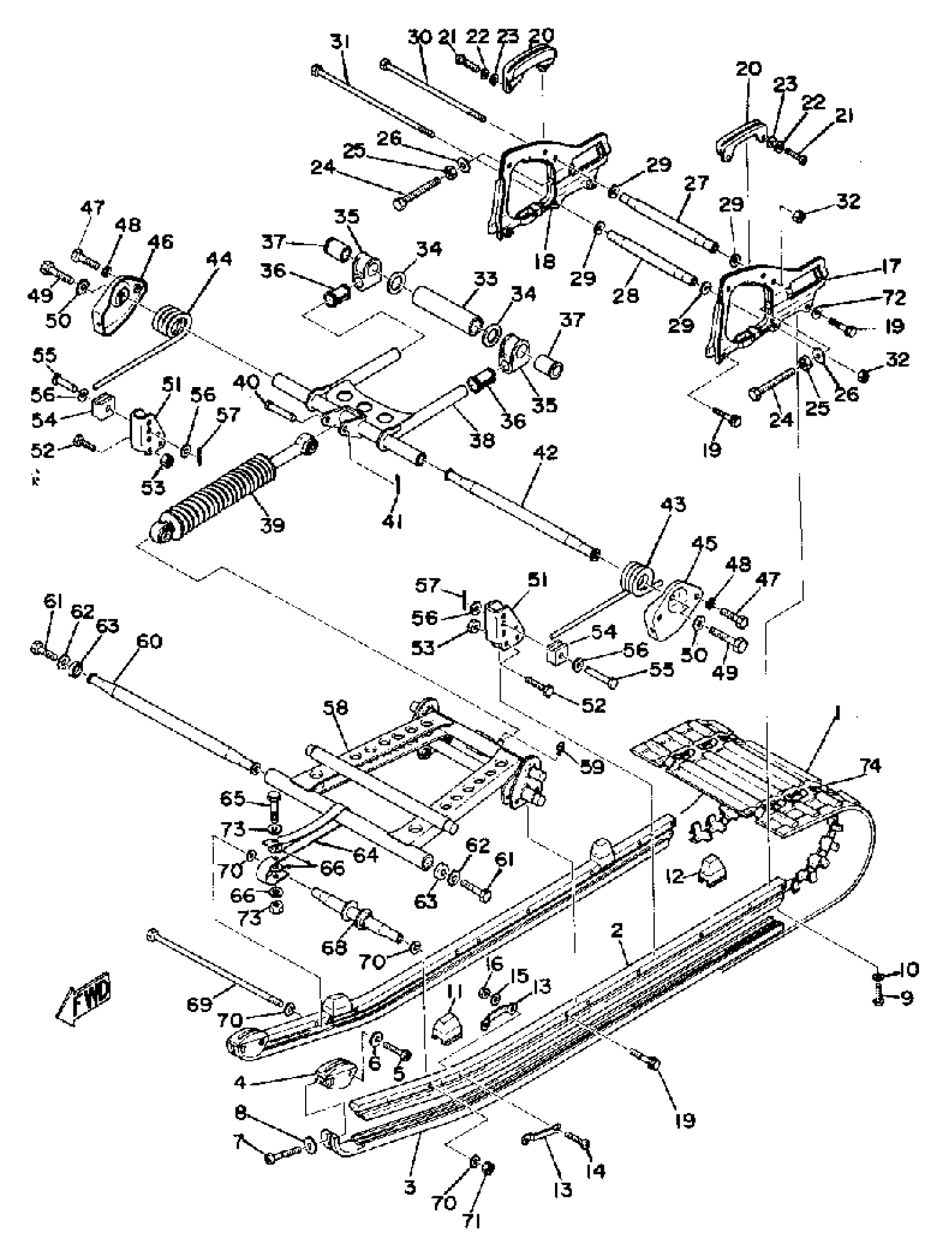

Yamaha GPX433G 1975 TRACK - SUSPENSION Diagram
#
1
TRACK ASSEMBLY
(890-47110-00-00)
Unavailable
2
FRAME, SLIDING 1
890-47411-00-00
Unavailable
3
RUNNER, SLIDING 1 (890-47421-00)
890-47421-90-XX
Unavailable
4
RUNNER, SLIDING 3
885-47423-00-00
Unavailable
5
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
6
WASHER, PLATE 8221447500
90201-06057-00
$5.60
7
SCREW PAN HEAD
98580-06040-00
$8.49
8
WASHER, PLATE
90201-06M02-00
Unavailable
9
BOLT,SOCKET
91317-06010-00
$9.49
10
WASHER, SPRING
92995-06100-00
Unavailable
11
DAMPER 1
888-47456-01-00
$9.99
12
DAMPER 2
885-47457-00-00
Unavailable
13
PLATE, DAMPER
885-47458-01-00
Unavailable
14
SCREW, PAN HEAD
98517-05030-00
$10.49
15
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
16
NUT, HEXAGON (663)
95380-05600-00
Unavailable
17
FRAME, SLIDING 2
(885-47412-00-00)
Unavailable
18
FRAME, SLIDING 3
(885-47413-00-00)
Unavailable
19
BOLT, WITH WASHER
90119-08008-00
Unavailable
20
RUNNER, SLIDING 2
888-47422-00-00
Unavailable
21
SCREW PAN HEAD
98580-06020-00
Unavailable
22
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
BOLT
90101-10270-00
Unavailable
25
NUT (682)
95380-10700-00
Unavailable
26
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
27
BRACKET 4
(885-47418-00-00)
Unavailable
28
BRACKET 2
(885-47416-00-00)
Unavailable
29
WASHER, PLAIN
92990-08200-00
Unavailable
30
BOLT, HEXAGON (97101-08245)
97321-08245-00
Unavailable
31
BOLT (8M8)
90101-08374-00
Unavailable
32
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
33
COLLAR
(90387-25471-00)
Unavailable
34
WASHER, PLATE
90201-25499-00
Unavailable
35
SLIDER 1
885-47441-00-00
Unavailable
36
BUSH, SPEC''L NYLON
90386-19081-00
Unavailable
37
BUSH, SPEC''L NYLON
(90386-25082-00)
Unavailable
38
ARM, PIVOT 2
(885-47332-00-00)
Unavailable
39
SHOCK ABSORBER
(8A0-47480-00-00)
Unavailable
40
PIN, CLEVIS(8N0)
90240-12115-00
Unavailable
41
PIN, COTTER
91490-30030-00
Unavailable
42
SHAFT 2
(885-47475-01-00)
Unavailable
43
SPRING, TORSION
(90508-90254-00)
Unavailable
44
SPRING, TORSION
90508-90255-00
Unavailable
45
BRACKET, REAR 1
(8A7-47426-00-00)
Unavailable
46
BRACKET, REAR 2
(8A7-47425-00-00)
Unavailable
47
BOLT(JA9)
90101-08691-00
Unavailable
48
WASHER (688)
92990-08400-00
Unavailable
49
BOLT (8J7)
97013-10030-00
Unavailable
50
WASHER, TTH
92907-10400-00
Unavailable
51
BRACKET 5
890-47463-00-00
Unavailable
52
BOLT
97013-08035-00
Unavailable
53
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
54
HOOK 2
890-47447-00-00
Unavailable
55
PIN WITH HOLE (890)
90249-12113-00
Unavailable
56
WASHER, PLATE
90201-12047-00
Unavailable
57
PIN, COTTER
91490-30030-00
Unavailable
58
ARM, PIVOT 1
(885-47331-02-00)
Unavailable
59
NIPPLE, GREASE
93700-06M03-00
Unavailable
60
SHAFT 1
885-47465-03-00
Unavailable
61
BOLT (8J7)
97013-10030-00
Unavailable
62
WASHER, TTH
92907-10400-00
Unavailable
63
SPACER
885-47341-00-00
Unavailable
64
STOPPER 1
888-47495-02-00
Unavailable
65
BOLT(JF7)
97080-06030-00
Unavailable
66
WASHER, PLATE
90201-06747-00
Unavailable
67
NUT, SELF-LOCKING
95617-06100-00
Unavailable
68
BRACKET 1
(885-47415-00-00)
Unavailable
69
BOLT (8M8)
90101-08374-00
Unavailable
70
WASHER, PLAIN
92990-08200-00
Unavailable
71
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
72
WASHER, PLATE
90201-08020-00
Unavailable
73
WASHER PLATE 137241870000
90201-06072-00
Unavailable
74
GUIDE CLIP
(ACC-11250-24-00)
Unavailable
