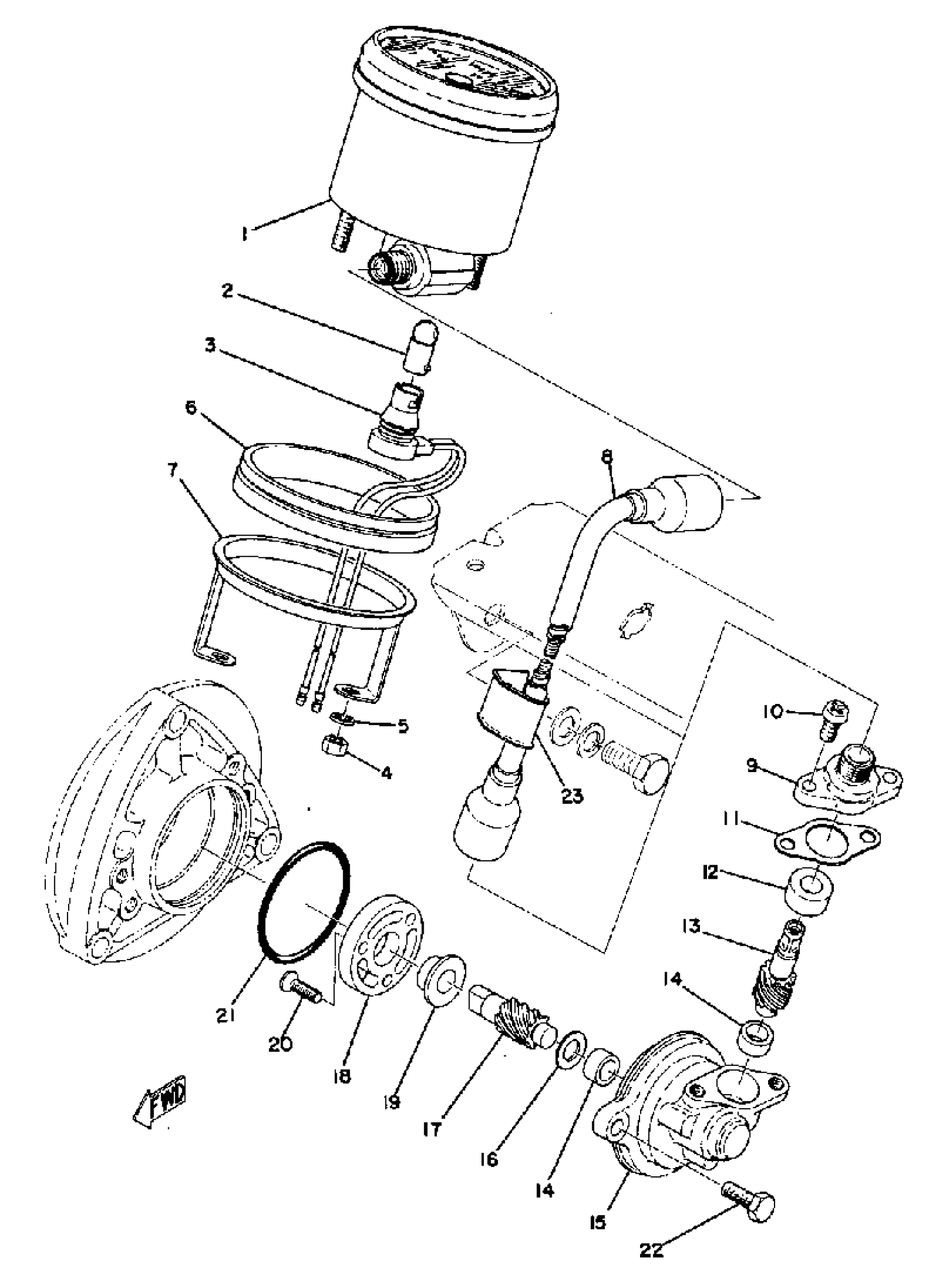

Yamaha GPX433G 1975 SPEEDOMETER UNIT Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

(888-83510-41-00)

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

3

SOCKET, METER

(861-83536-40-00)

Unavailable

4

NUT, HEXAGON (663)

95380-05600-00

$8.49

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

. DAMPER

861-83523-40-00

Unavailable

7

. PLATE, FITTING

861-83514-40-00

Unavailable

8

SPEEDOMETER CABLE

839-83550-01-00

Unavailable

9

COVER, HOUSING

(810-47721-10-00)

Unavailable

9

COVER, METER HOUSING

8E3-47721-10-00

Unavailable

10

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

11

GASKET

810-47727-11-00

Unavailable

12

BUSH, SOLID

90380-08005-00

Unavailable

13

GEAR, DRIVEN

(888-47741-01-00)

Unavailable

14

BUSH, SOLID

(90380-08002-00)

Unavailable

15

HOUSING

8E6-47711-10-00

Unavailable

16

SHIM

810-47717-10-00

Unavailable

17

GEAR, DRIVE

(888-47731-01-00)

Unavailable

18

JOURNAL

853-47712-10-00

Unavailable

19

BUSH, SOLID

90381-10003-00

Unavailable

20

SCREW, FLAT

98707-04012-00

Unavailable

21

O-RING

93210-43141-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

CLAMP (706)

90465-06100-00

Unavailable
