1975 Yamaha GPX433G SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

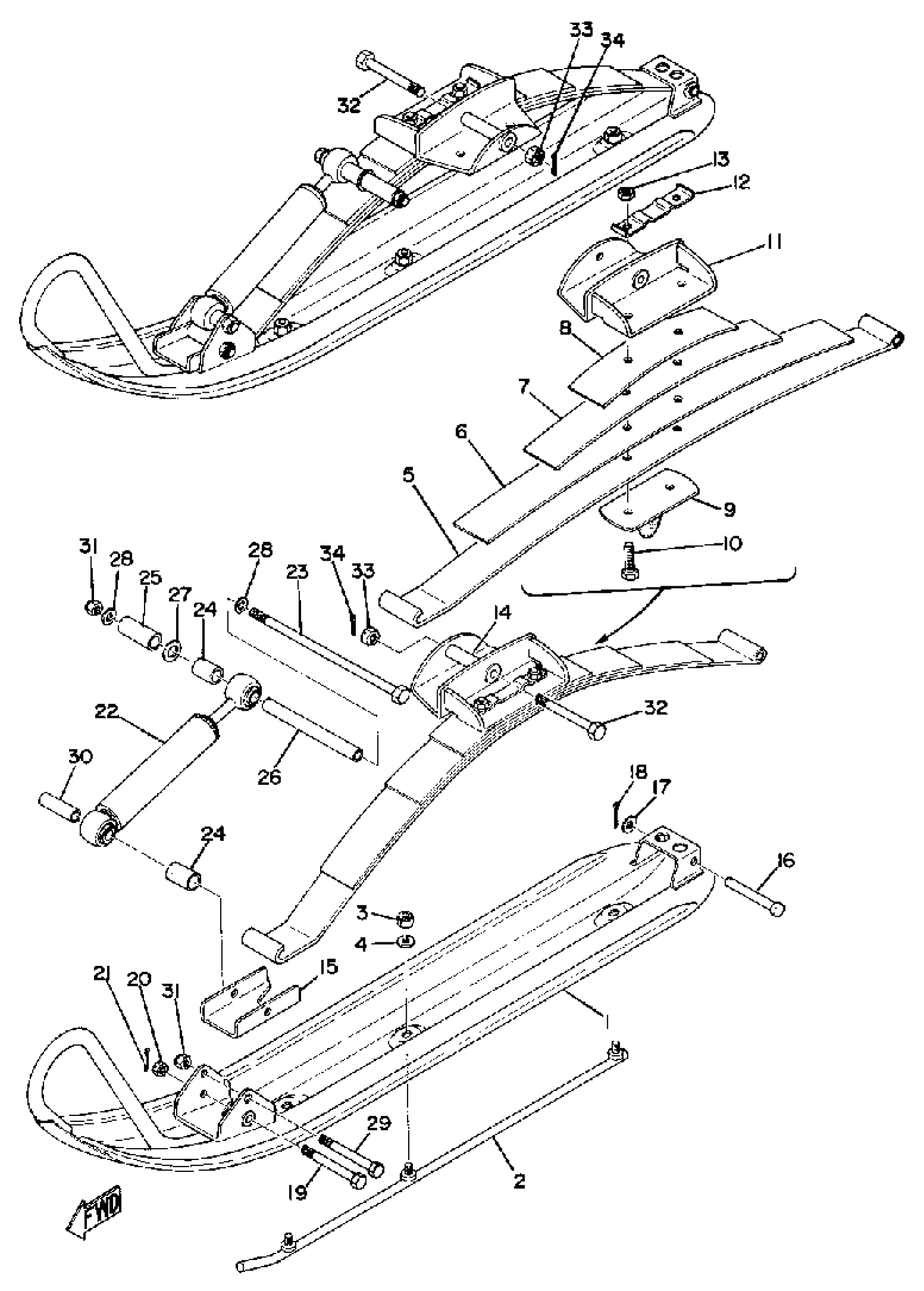

1975 Yamaha GPX433G SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING ASSEMBLY 1

(888-23760-01-00)

1
Out of stock

1

SKI 1

8G9-23710-00-00

1
Out of stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

2

SPRING ASSEMBLY 2

(888-23770-01-00)

1
Out of stock

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

4

WASHER(6TC)

92907-08200-00

1
Out of stock

5

LEAF 1

888-23761-10-00

1
Out of stock

6

LEAF 2

865-23762-10-00

1
Out of stock

7

LEAF 3

888-23763-00-00

1
Out of stock

8

. LEAF 5

865-23771-00-00

1
Out of stock

9

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

10

. BOLT

90101-10060-00

1
Out of stock

11

SADDLE 1

(888-23766-00-33)

1
Out of stock

12

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

13

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

14

COLLAR

90387-08478-00

1
Out of stock

15

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

16

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

17

WASHER(6TC)

92907-08200-00

1
Out of stock

18

PIN COTTER

91490-30025-00

—
Out of stock

19

BOLT, WITH HOLE

(90102-08020-00)

1
Out of stock

20

NUT, SLOTTED

95307-08900-00

1
Out of stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

SHOCK ABSORBER ASSEMBLY

8G9-23350-00-00

1
Out of stock

23

BOLT

90109-08386-00

—
Out of stock

24

COLLAR (808-83326-00)

90387-12106-00

1
Out of stock

25

COLLAR

(90387-12486-00)

1
Out of stock

26

COLLAR

90387-08485-00

1
Out of stock

27

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

28

WASHER (853)

90201-08326-00

—

$6.17

In stock

29

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

30

COLLAR (864)

90387-08224-00

—

$7.52

In stock

31

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

32

BOLT, WITH HOLE

90102-12022-00

1
Out of stock

33

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

34

PIN, COTTER

91490-30030-00

—

$7.15

In stock
