1975 Yamaha GPX433G Brake Diagram

← All diagrams

Find the part on the Brake diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

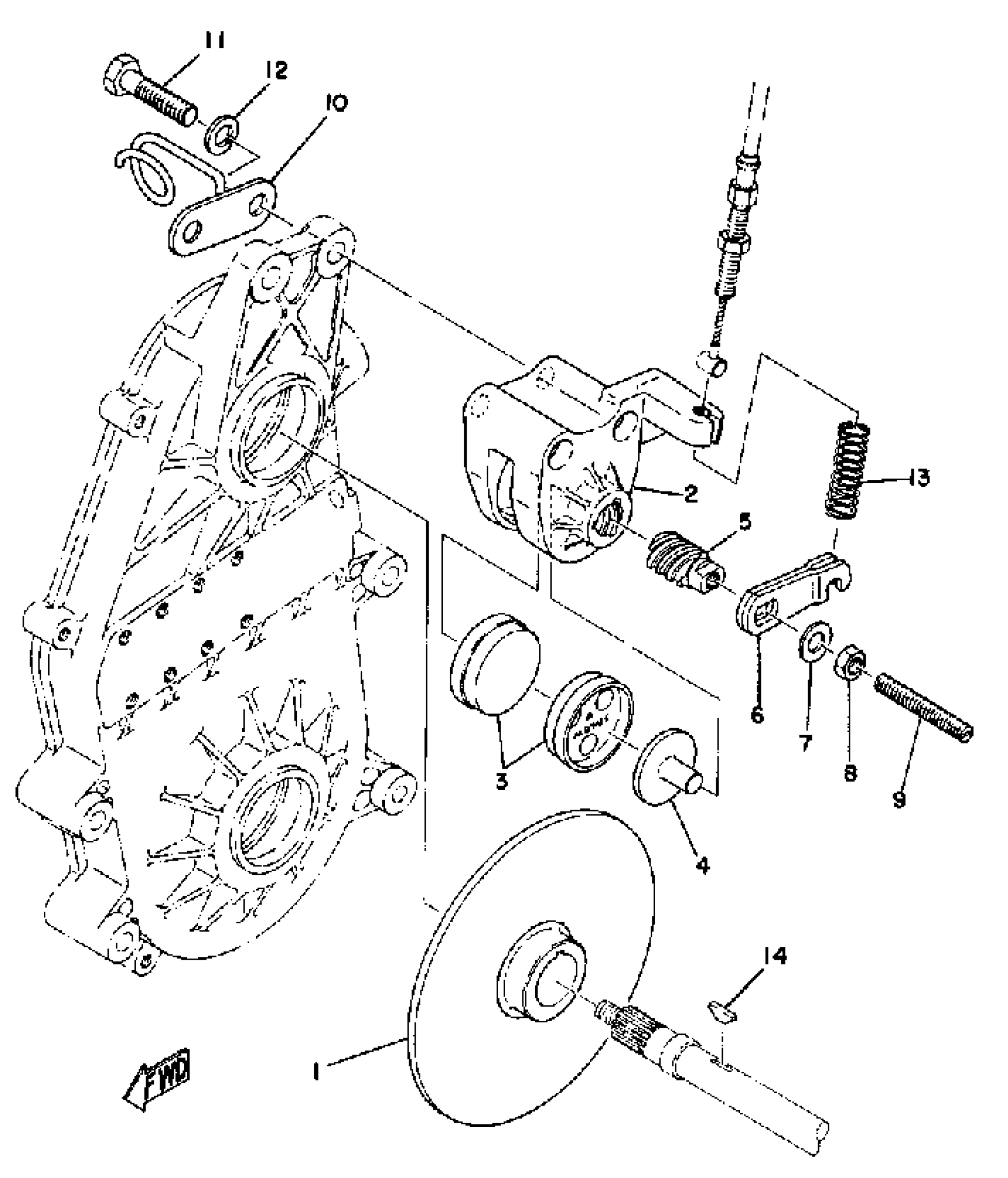

1975 Yamaha GPX433G Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

888-25831-00-00

1
Out of stock

2

BODY, CALIPER 1

878-25731-00-00

1
Out of stock

3

PAD, CALIPER 2

89J-25811-00-00

1

$23.38

In stock

4

PLATE, BACK UP

878-25733-00-00

1
Out of stock

5

CAM

878-25728-00-00

1
Out of stock

6

LEVER, BRAKE

878-25726-00-00

1
Out of stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

. NUT

95380-08700-00

1

$3.07

In stock

9

SCREW, SPEC''L SHAPE

90149-08033-00

1
Out of stock

10

HOLDER, WIRE

(888-23874-00-00)

1
Out of stock

11

BOLT

97013-10040-00

1
Out of stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

13

SPRING, COMPRESSION

90501-23337-00

1
Out of stock

14

KEY

8J7-25848-00-00

1

$4.77

In stock
