SECONDARY SHEAVE

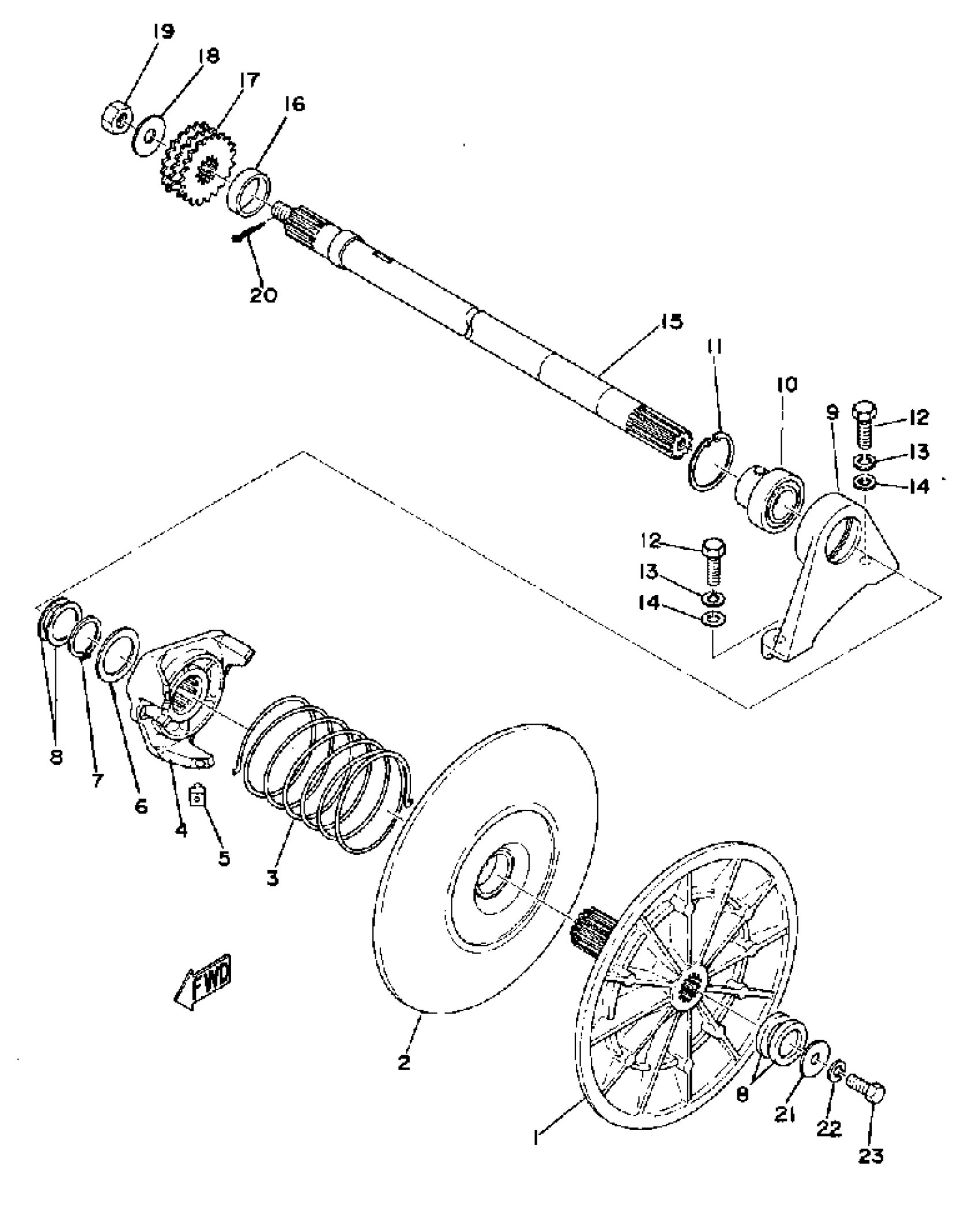

Yamaha GPX433G 1975 SECONDARY SHEAVE Diagram
#
1
SEC FXD SHV
888-17660-00-00
Unavailable
2
SEC SLIDING SHEAVE
(888-17670-11-00)
Unavailable
2
SEC SLIDING SHEAVE
(889-17670-00-00)
Unavailable
3
SPRING, TORSION
(90508-45081-00)
Unavailable
4
SEAT, SEC SPRING
878-17684-00-00
Unavailable
5
SHOE, RAMP
801-17688-10-00
Unavailable
6
SHIM (856-17687-00)
90564-34003-00
Unavailable
7
CIRCLIP(86F)
93440-34170-00
$8.49
8
WASHER, PLATE (888)
90201-25526-00
$9.49
8
WASHER, PLATE (888)
90201-25527-00
$10.49
8
SPACER (25-36-5.0)
99999-01011-00
Unavailable
9
HOUSING, BEARING
878-47631-00-00
Unavailable
10
BEARING
888-17678-00-00
Unavailable
11
CIRCLIP(26H)
99009-52500-00
$12.49
12
BOLT (8J7)
97013-10030-00
$10.49
13
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
14
WASHER, PLATE 3711117500
90201-10124-00
Unavailable
15
SHAFT, SECONDARY
(888-17680-00-00)
Unavailable
16
COLLAR
90387-25259-00
Unavailable
17
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
Unavailable
17
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
Unavailable
18
WASHER, PLATE
90201-14319-00
Unavailable
19
NUT(6TC)
95337-14600-00
Unavailable
20
PIN, COTTER
91490-30030-00
Unavailable
21
WASHER, PLATE (856)
90201-10321-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
Unavailable
23
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
Unavailable
23
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
Unavailable
23
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
Unavailable
23
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
Unavailable
23
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
Unavailable
23
BOLT(6TD)
97017-10025-00
Unavailable
