OIL PUMP

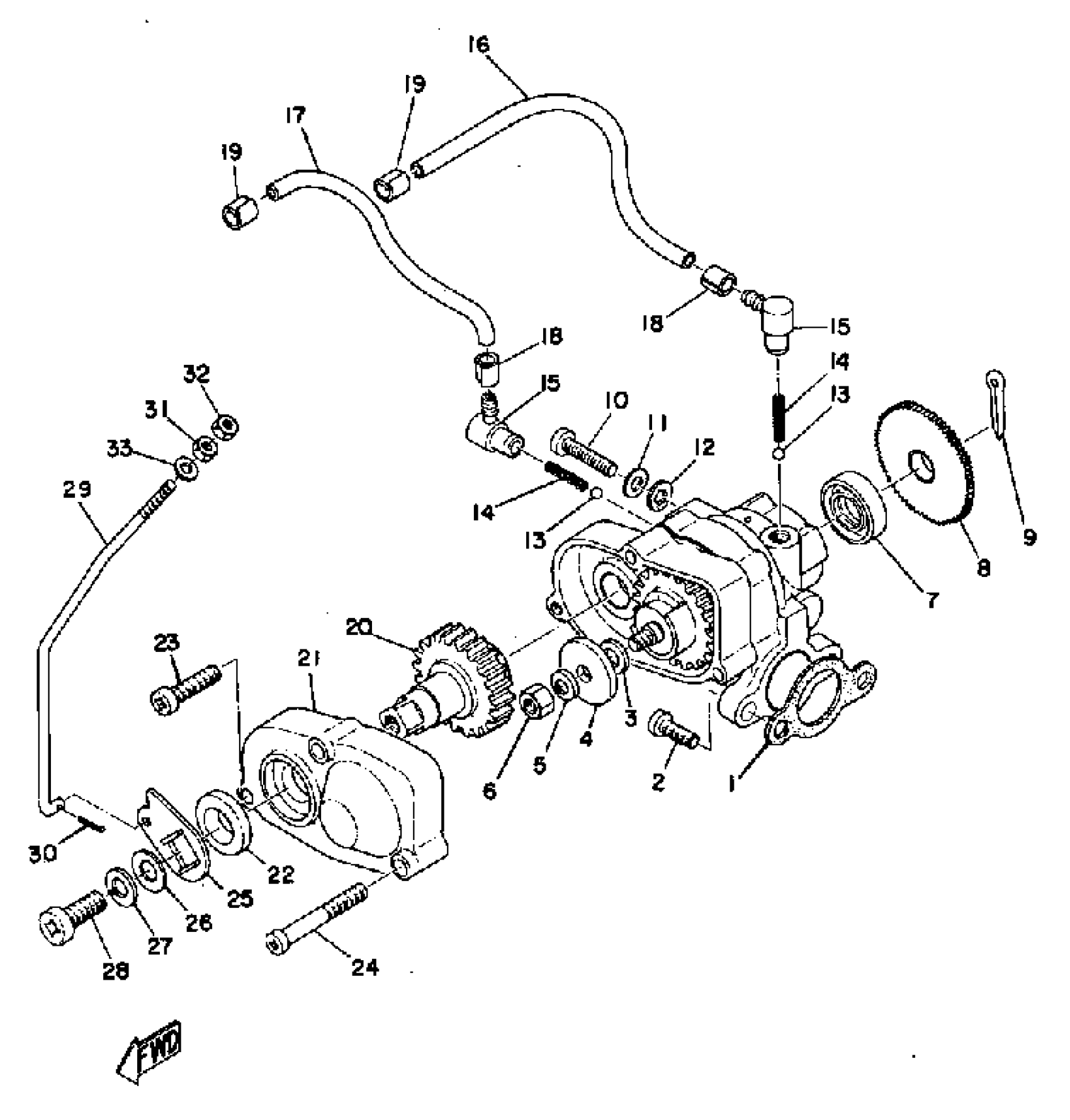

Yamaha GPX433G 1975 OIL PUMP Diagram
#
1
GASKET, PUMP CASE
126-13116-01-00
$8.99
1
OIL PUMP ASSEMBLY
888-13101-00-00
Unavailable
1
OIL PUMP ASSEMBLY
(889-13101-01-00)
Unavailable
2
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
3
SHIM,PLUNGER
137-13137-00-03
$5.49
3
SHIM,PLUNGER
137-13137-00-05
$6.99
3
SHIM,PLUNGER
137-13137-00-10
$7.99
4
PLATE, ADJUSTING
137-13138-01-00
Unavailable
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
NUT, HEXAGON (663)
95380-05600-00
$8.49
7
OIL SEAL, SD-TYPE
(93102-10137-00)
Unavailable
8
PLATE, STARTER
(137-13128-00-00)
Unavailable
9
. PIN, COTTER
91401-12018-00
Unavailable
10
. SCREW, PAN HEAD
90157-04009-00
Unavailable
11
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
12
GASKET 137131870000
90430-04004-00
Unavailable
13
BALL
93505-32002-00
Unavailable
14
SPRING (278-13169-00)
90501-02018-00
Unavailable
15
NOZZLE
353-13552-01-00
Unavailable
16
HOSE (L200)
90445-05N13-00
Unavailable
17
HOSE (L200)
90445-05N13-00
Unavailable
18
. UNAVAILABLE IN PRICE BOOK (214-13164-00)
90446-02033-00
Unavailable
19
CLIP (214-13164-00)
90468-02033-00
Unavailable
20
GEAR, PUMP CONTROL
(838-13154-01-00)
Unavailable
21
COVER, AJST PULLEY
(859-13146-00-00)
Unavailable
22
OIL SEAL, SO-TYPE (SO-12-20-4)
93104-12043-00
Unavailable
23
SCREW, PAN HEAD
98517-04020-00
Unavailable
24
SCREW, PAN HEAD(MK5)
98507-04035-00
Unavailable
25
LEVER, PUMP CONTROL
(878-13156-00-00)
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
29
ROD, PUMP CONTROL
(879-13157-00-00)
Unavailable
30
. PIN, COTTER
91490-12012-00
Unavailable
31
NUT, HEXAGON (807-13139-00)
90170-03008-00
Unavailable
32
NUT, SELF-LOCKING (838-13139-00)
90185-03007-00
Unavailable
33
WASHER
90201-04015-00
Unavailable
