1975 Yamaha GPX433G Intake Diagram

← All diagrams

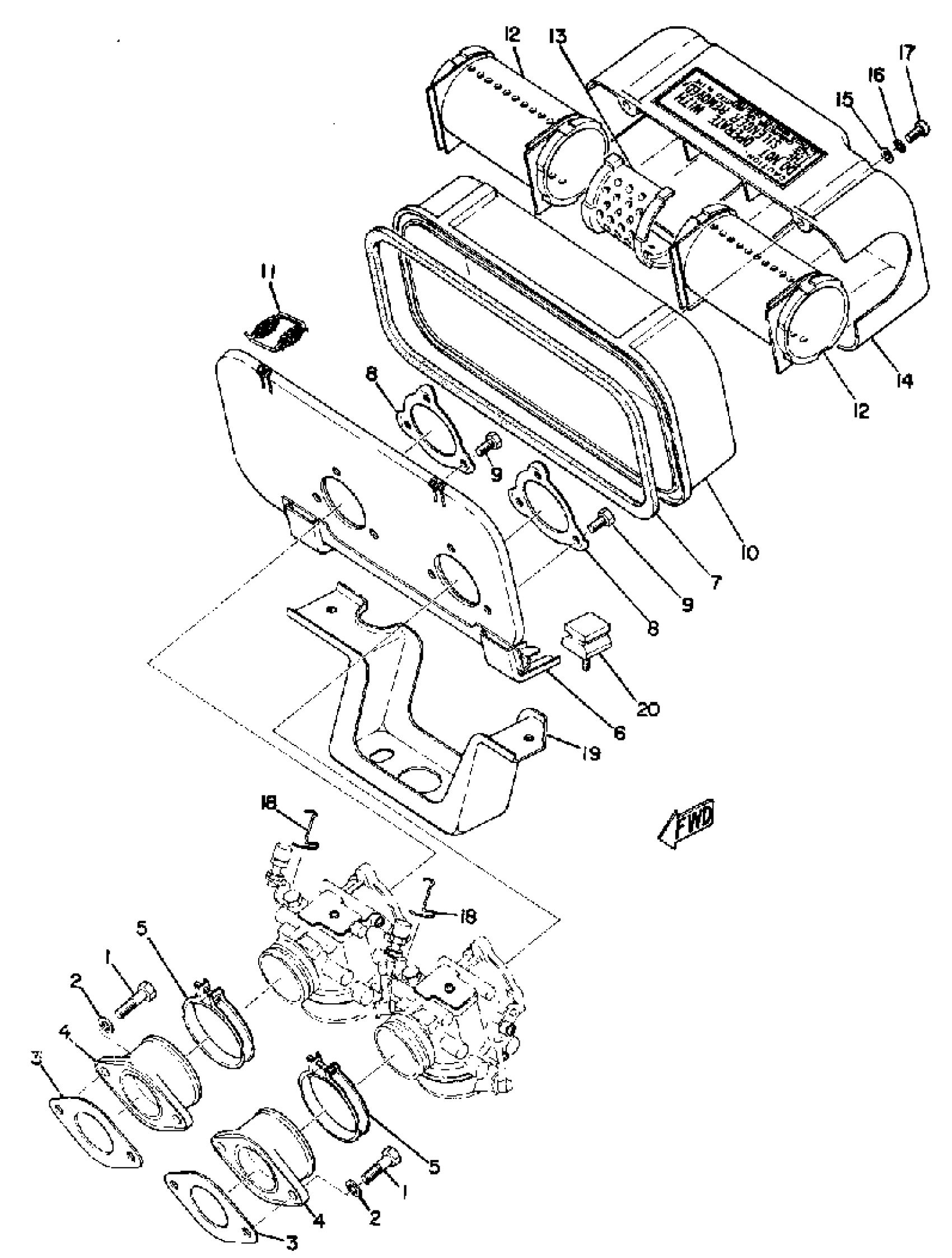

Find the part on the Intake diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha GPX433G Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

2

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

3

GASKET, MANIFOLD

812-13556-09-00

1
Out of stock

3

GASKET, MANIFOLD

(888-13556-50-00)

1
Out of stock

4

JOINT, CARBURETOR

888-13565-00-00

1
Out of stock

4

JOINT, CARBURETOR

(889-13565-00-00)

1
Out of stock

5

BAND

86M-13575-00-00

1

$16.45

In stock

6

PLATE

(888-14477-01-00)

1
Out of stock

6

PLATE

(889-14477-02-00)

1
Out of stock

7

DAMPER

(878-14492-00-00)

1
Out of stock

8

WASHER, SPEC''L SHAP (844-14475-00)

90209-43074-00

1
Out of stock

8

WASHER, SPEC''L SHAP (847-14475-00)

90209-45075-00

1
Out of stock

9

BOLT (661)

97013-06012-00

1

$4.71

In stock

10

SILENCER, INTAKE 1

889-14431-00-00

1
Out of stock

11

SPRING, TENSION (90507-12014)

90507-12041-00

1
Out of stock

12

PIPE

(888-14419-00-00)

1
Out of stock

13

PIPE, JOINT

888-14485-00-00

1
Out of stock

14

SILENCER, INTAKE 2

888-14441-00-00

1
Out of stock

15

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

16

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

17

SCREW, PAN

98517-05012-00

—

$3.91

In stock

18

CLAMP

90465-10033-00

1
Out of stock

19

HOLDER

(889-14261-01-00)

1
Out of stock

20

DAMPER 1

888-14425-00-00

1
Out of stock
