1975 Yamaha GPX433G Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1975 Yamaha GPX433G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

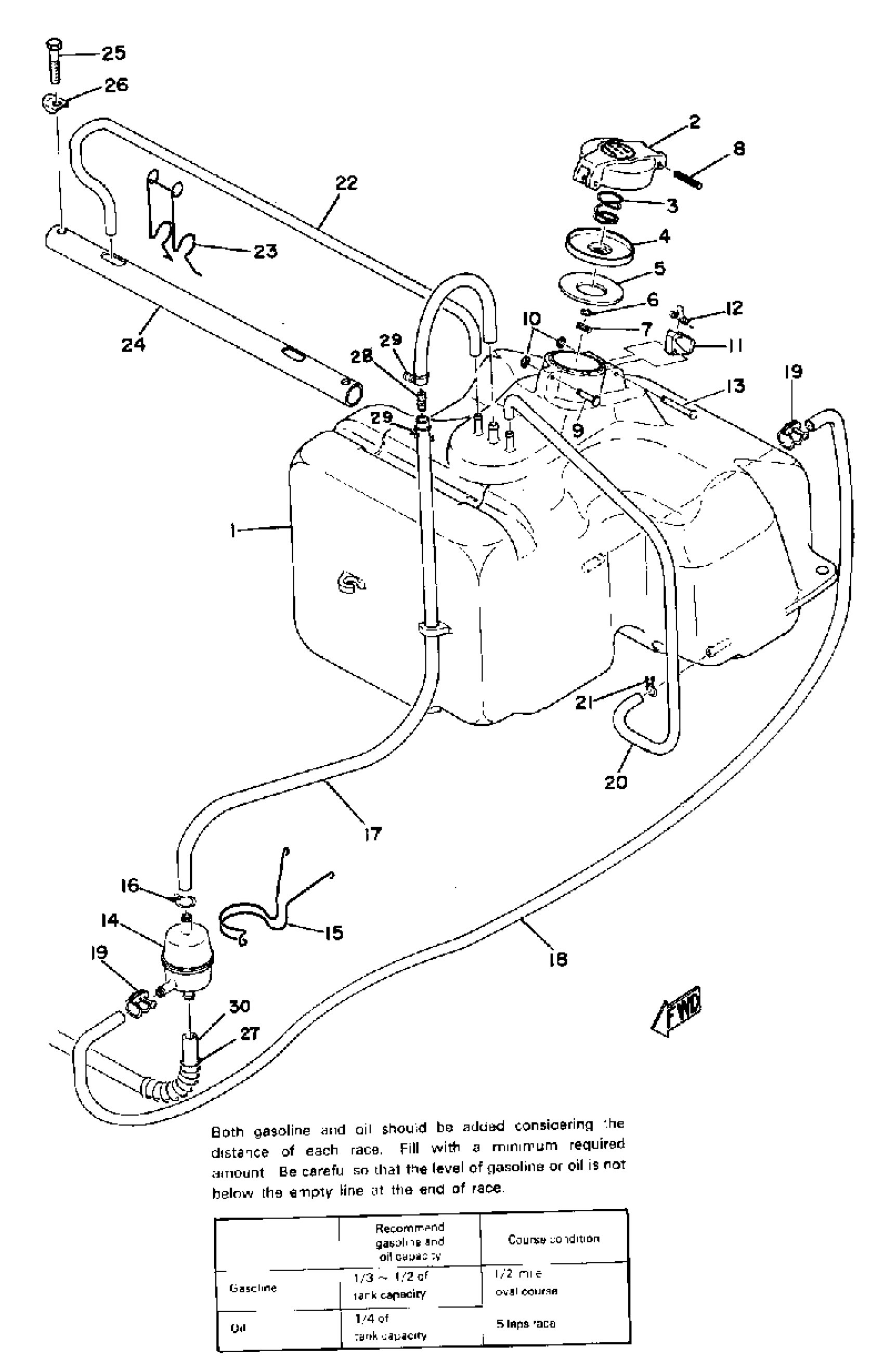

1975 Yamaha GPX433G Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(888-24111-00-00)

1
Out of stock

2

BODY, CAP

(878-24611-00-00)

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP

256-24612-00-00

1
Out of stock

6

O-RING (256)

93210-04122-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

10

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

11

HOOK

83M-24628-00-00

1

$19.68

In stock

12

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

13

PIN (813)

90249-03017-00

1

$2.25

In stock

14

FILTER ASSEMBLY

(888-24560-00-00)

1
Out of stock

15

HOLDER, FILTER

(888-24558-00-00)

1
Out of stock

16

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

17

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

18

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

19

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

20

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

21

CLIP (8L2)

90467-08017-00

—

$7.51

In stock

22

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

23

CLAMP

90465-11044-00

1
Out of stock

24

BAND, TNK FITTING 1

(878-24173-01-00)

1
Out of stock

25

BOLT (682)

97095-06040-00

—

$2.36

In stock

26

WASHER, LOCK

(90215-06048-00)

1
Out of stock

27

—

$3.98

In stock

28

VALVE, CHECK 1 (SILVER 4)

888-24362-00-00

1
Out of stock

29

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

30

PIPE, FUEL 1

888-24311-00-00

1
Out of stock
