- GPX433G 1975
GPX SR KIT PARTS 1

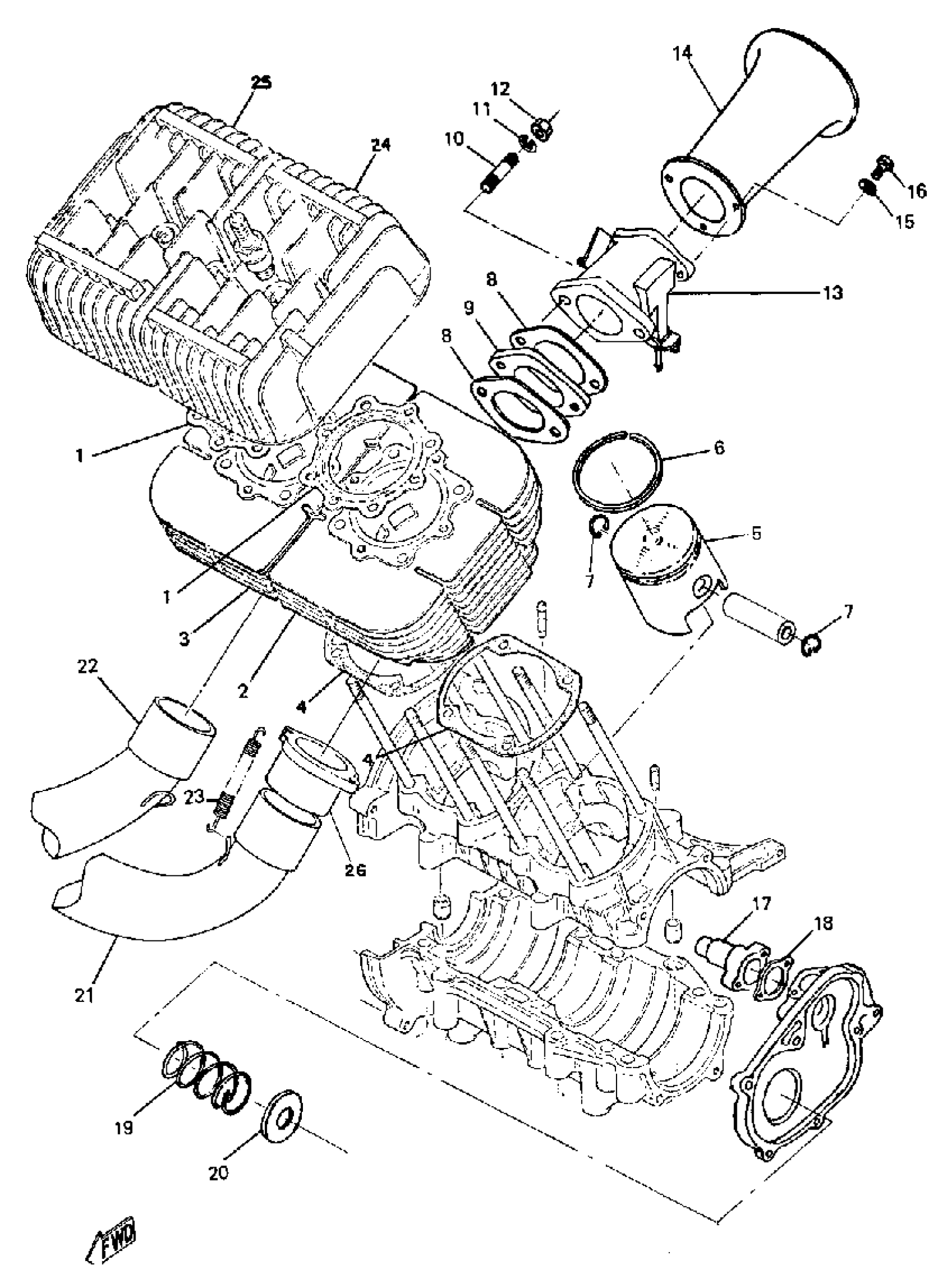

Yamaha GPX433G 1975 GPX SR KIT PARTS 1 Diagram
#
1
GASKET, CYLINDER HEAD 1
(878-11181-70-00)
Unavailable
1
GASKET, CYLINDER HEAD 1
(879-11181-70-00)
Unavailable
2
CYLINDER 1
(878-11311-70-00)
Unavailable
2
CYLINDER 1
(879-11311-70-00)
Unavailable
3
CYLINDER 2
(878-11321-70-00)
Unavailable
3
CYLINDER 2
(879-11321-70-00)
Unavailable
4
GASKET, CYLINDER
846-11351-02-00
$5.49
4
GASKET, CYLINDER
857-11351-09-00
$4.42
5
PISTON STD
(878-11631-70-96)
Unavailable
5
PISTON STD
(879-11631-70-96)
Unavailable
6
RING, PISTON STD
829-11611-00-00
Unavailable
6
RING, PISTON
878-11611-71-00
Unavailable
7
CLIP 6041163400
93450-20026-00
$8.49
8
GASKET, MANIFOLD
812-13556-09-00
Unavailable
9
JOINT, CARBURETOR
824-13585-00-00
Unavailable
10
BOLT, STUD
90116-08039-00
Unavailable
11
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
12
. NUT
95380-08700-00
Unavailable
13
UNAVAILABLE IN PRICE BOOK
(878-13710-70-00)
Unavailable
13
MIXING ASSEMBLY
(879-13710-70-00)
Unavailable
14
FUNNEL
828-14479-70-00
Unavailable
15
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
16
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
17
GEAR, PUMP DRIVEN 2
878-13326-70-00
Unavailable
18
GASKET, PUMP CASE
126-13116-01-00
Unavailable
19
SPRING, COMPRESSION
(90501-55356-00)
Unavailable
20
CAM
878-17623-70-00
Unavailable
20
CAM
(879-17623-70-00)
Unavailable
21
433 LEFT GYT PIPE
(ACC-11250-09-00)
Unavailable
21
338 LEFT GYT PIPE
(ACC-11250-10-00)
Unavailable
22
433 RIGHT GYT PIPE
(ACC-11250-09-10)
Unavailable
22
338 RIGHT GYT PIPE
(ACC-11250-10-10)
Unavailable
23
SPRING, TENSION
90506-16198-00
Unavailable
24
HEAD, CYLINDER 1
(888-11111-70-00)
Unavailable
24
HEAD, CYLINDER 1
(889-11111-70-00)
Unavailable
25
HEAD, CYLINDER 2
(888-11121-70-00)
Unavailable
25
HEAD, CYLINDER 2
(889-11121-70-00)
Unavailable
26
NUT, RING
(828-14612-70-00)
Unavailable
