CARBURETOR (GPX433G)

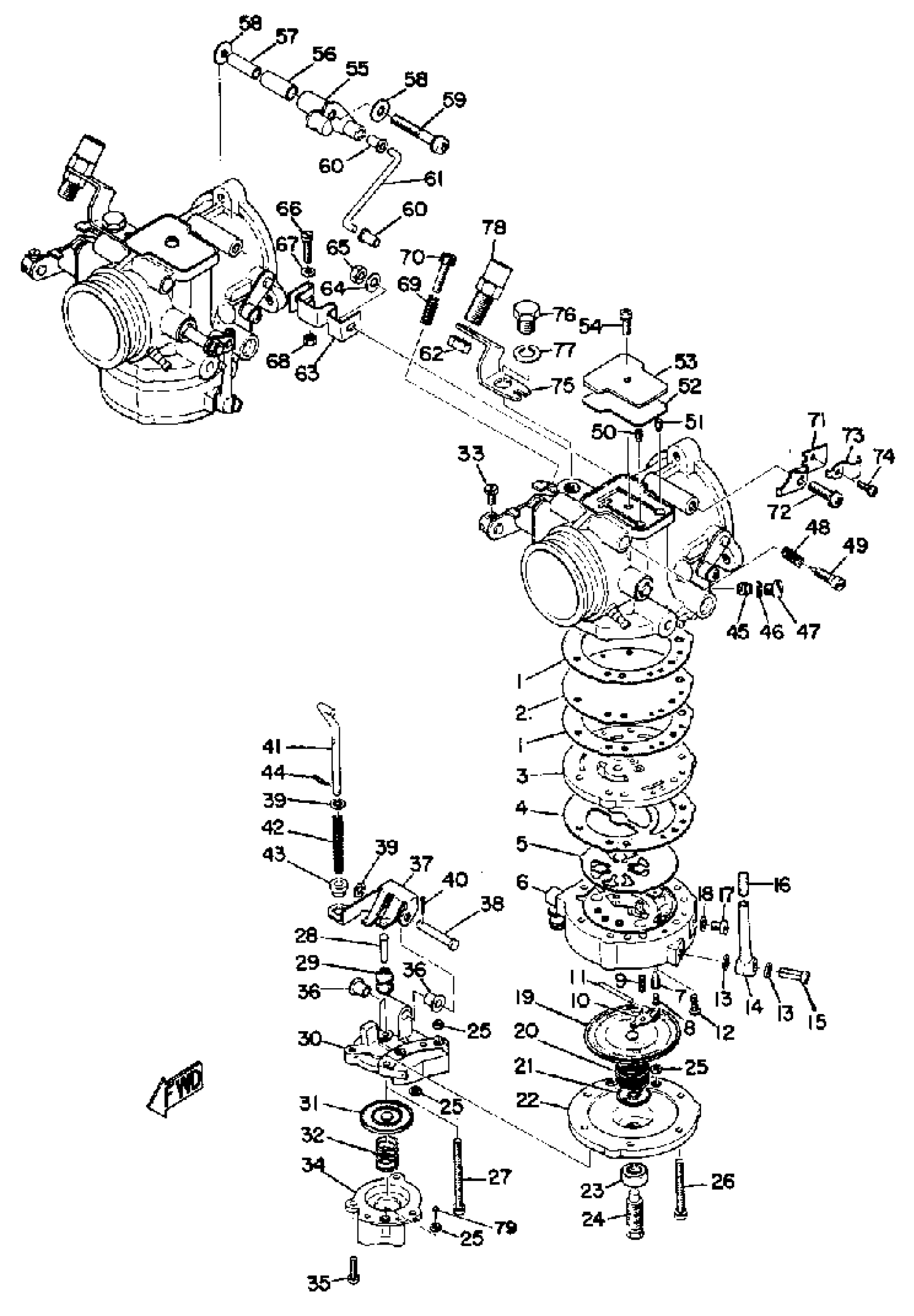

Yamaha GPX433G 1975 CARBURETOR (GPX433G) Diagram
#
1
GASKET
879-14536-09-00
$18.49
1
GASKET
879-14536-09-00
$18.49
1
CARBURETOR ASSEMBLY 1
889-14501-00-00
Unavailable
2
. DIAPHRAGM, PUMP
879-14541-01-00
Unavailable
2
CARBURETOR ASSEMBLY 2
(889-14502-00-00)
Unavailable
3
BODY, PUMP 1
(879-14542-00-00)
Unavailable
4
GASKET
(879-14553-00-00)
Unavailable
5
VALVE,CHECK
806-14552-01-00
$56.99
6
. BODY, PUMP 2
879-14543-00-00
Unavailable
7
VALVE
838-14546-00-00
$43.99
8
. PIN, FLOAT
676-14186-00-00
Unavailable
9
. SPRING
810-14556-00-00
Unavailable
10
ARM, FLOAT
(810-14547-00-00)
Unavailable
11
PIN, FLOAT ARM
(806-14548-00-00)
Unavailable
12
SCREW, FLAT
98707-03008-00
$7.49
13
. WASHER
806-14559-00-00
Unavailable
14
. PIPE, AIRVENT
810-14197-02-00
Unavailable
15
. SCREW
8A1-14592-00-00
Unavailable
16
. CAP, BLIND
810-24462-01-00
Unavailable
17
SCREW
(806-14567-01-00)
Unavailable
18
. WASHER
810-14597-00-00
Unavailable
19
DIAPHRAGM
810-14545-00-00
Unavailable
20
. SPRING, COMPRESSION
90501-06213-00
Unavailable
21
SEAT, SPRING
(810-14136-00-00)
Unavailable
22
BODY, PUMP 3
(879-14544-00-00)
Unavailable
23
. NUT
95380-08700-00
Unavailable
24
. SCREW, STOP
884-14565-01-00
Unavailable
25
. O-RING
866-14561-00-00
Unavailable
26
SCREW
(824-14567-00-00)
Unavailable
27
SCREW
(858-14567-00-00)
Unavailable
28
. PIN, FLOAT ARM
866-14548-00-00
Unavailable
29
COVER
(866-14967-00-00)
Unavailable
30
BODY, PUMP 4
(866-14551-00-00)
Unavailable
31
DIAPHRAGM
(890-14545-00-00)
Unavailable
32
SPRING, COMPRESSION
(90501-07341-00)
Unavailable
33
SCREW
(810-14591-00-00)
Unavailable
34
COVER, FUEL
(866-14540-00-00)
Unavailable
35
SCREW, WITH WASHER
(90159-05006-00)
Unavailable
36
COLLAR
(866-14578-00-00)
Unavailable
37
ARM
(879-14528-00-00)
Unavailable
38
PIN, LEVER
(866-14554-00-00)
Unavailable
39
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
40
. PIN, COTTER
91490-12012-00
Unavailable
41
ROD
(879-14577-00-00)
Unavailable
42
. SPRING
890-14589-00-00
Unavailable
43
COLLAR
(866-14535-00-00)
Unavailable
44
SPRING
(866-14579-00-00)
Unavailable
45
JET, MAIN #150
(888-14516-50-00)
Unavailable
46
WASHER
(810-14558-00-00)
Unavailable
47
SCREW
(845-14567-00-00)
Unavailable
48
SPRING, COMPRESSION
(90501-10237-00)
Unavailable
49
SCREW, ADJUST
(865-14522-00-00)
Unavailable
50
JET #60
(865-14515-60-00)
Unavailable
51
JET #58
(865-14515-58-00)
Unavailable
52
GASKET
(865-14537-00-00)
Unavailable
53
PLATE
(865-14527-00-00)
Unavailable
54
. SCREW, WITH WASHER
90159-05005-00
Unavailable
55
. LEVER
879-14573-00-00
Unavailable
56
COLLAR
(806-14534-00-00)
Unavailable
57
COLLAR
(806-14578-00-00)
Unavailable
58
WASHER
(806-14597-00-00)
Unavailable
59
SCREW, WITH WASHER
(90159-05009-00)
Unavailable
60
COLLAR
(865-14535-00-00)
Unavailable
61
ROD, CHOKE
(879-14585-00-00)
Unavailable
62
. NUT, HEXAGON
90170-08139-00
Unavailable
63
CONNECTOR
(879-14588-00-00)
Unavailable
64
WASHER, LOCK
(806-14599-00-00)
Unavailable
65
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
66
SCREW, STOP
(844-14566-00-00)
Unavailable
67
WASHER, PLATE
(90201-04436-00)
Unavailable
68
NUT(6TA)
95307-04600-00
Unavailable
69
SPRING, AJST SCREW
(806-14533-00-00)
Unavailable
70
. SCREW, PAN HEAD
90157-04010-00
Unavailable
71
PLATE, STAY
(889-14580-00-00)
Unavailable
72
. SCREW, WITH WASHER
90159-05005-00
Unavailable
73
. BRACKET
879-14581-00-00
Unavailable
74
SCREW, WITH WASHER
(90159-04008-00)
Unavailable
75
. BRACKET, THROTTLE
879-14571-00-00
Unavailable
76
BOLT(62E)
97013-08012-00
Unavailable
77
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
78
. ADJUSTER, CABLE
857-14576-00-00
Unavailable
79
. JET #50 (#50)
865-14515-50-00
Unavailable
79
. JET #52 (#52)
865-14515-52-00
Unavailable
79
JET #55
(865-14515-55-00)
Unavailable
79
JET #58
(865-14515-58-00)
Unavailable
79
JET #60
(865-14515-60-00)
Unavailable
79
. JET #62 (#62)
865-14515-62-00
Unavailable
79
JET, MAIN #140
(888-14516-40-00)
Unavailable
79
JET, MAIN #142
(888-14516-42-00)
Unavailable
79
JET, MAIN #145 (#145)
888-14516-45-00
Unavailable
79
JET, MAIN #148 (#148)
888-14516-48-00
Unavailable
79
JET, MAIN #150
(888-14516-50-00)
Unavailable
79
JET, MAIN #152 (#152)
888-14516-52-00
Unavailable
79
JET, MAIN #155 (#155)
888-14516-55-00
Unavailable
79
JET, MAIN #158
(888-14516-58-00)
Unavailable
79
JET, MAIN #160 (#160)
888-14516-60-00
Unavailable
79
JET, MAIN #162
(888-14516-62-00)
Unavailable
79
JET, MAIN #165
(888-14516-65-00)
Unavailable
79
BALL 1/8
(93501-08028-00)
Unavailable
