TRACK - SUSPENSION GPX338F - GPX433F

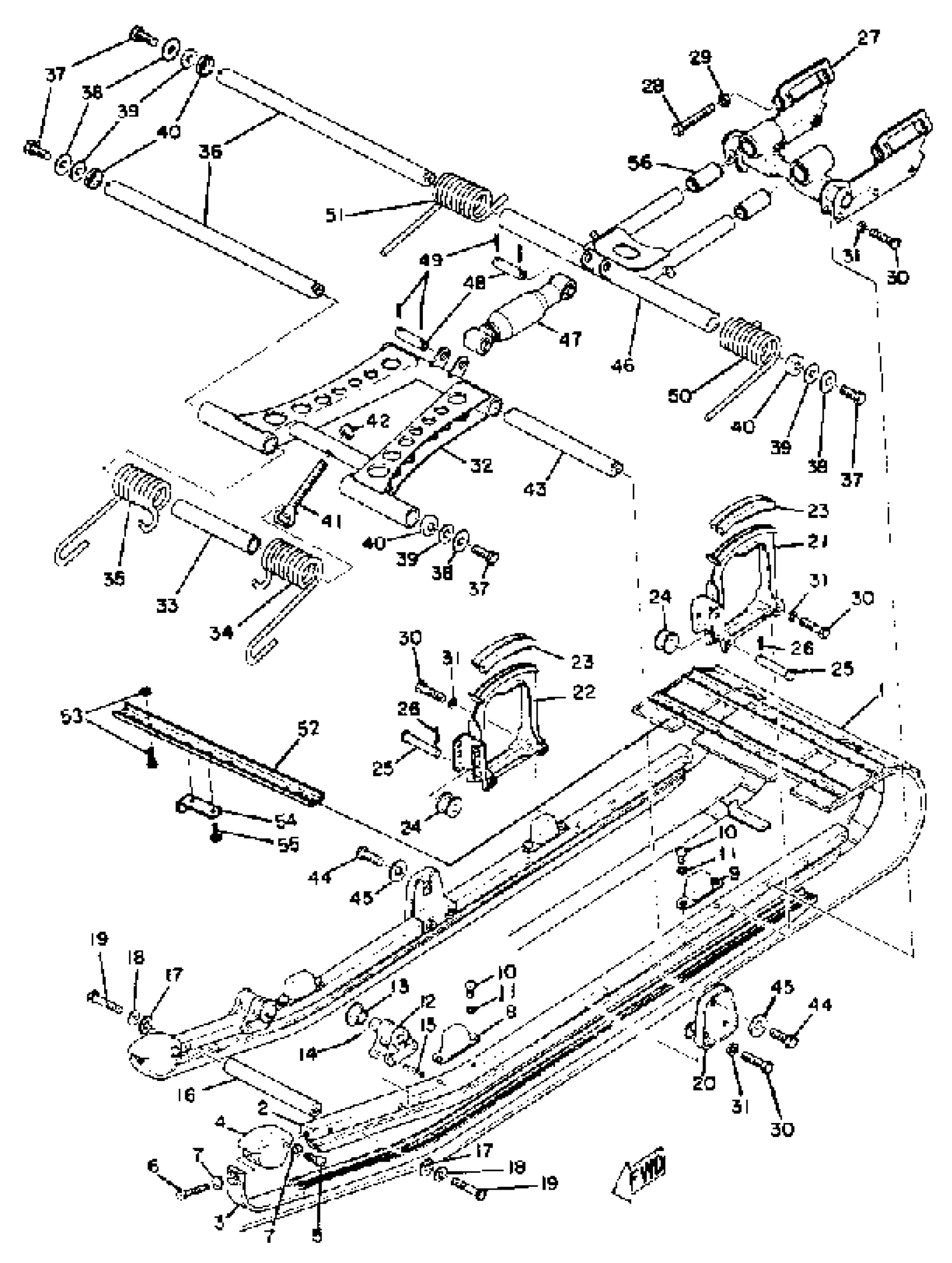

Yamaha GPX433F 1974 TRACK - SUSPENSION GPX338F - GPX433F Diagram
#
1
TRACK ASSEMBLY
878-47110-01-00
Unavailable
2
FRAME, SLIDING 1
(878-47411-01-00)
Unavailable
3
RUNNER, SLIDING 1
878-47421-00-00
Unavailable
4
RUNNER, SLIDING 3
(878-47423-00-00)
Unavailable
5
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
6
SCREW PAN HEAD
98580-06040-00
$8.49
7
WASHER, PLATE 8221447500
90201-06057-00
$5.60
8
DAMPER 1
(865-47456-01-00)
Unavailable
9
DAMPER 2
(865-47457-01-00)
Unavailable
10
SCREW, PAN
98507-06014-00
$8.49
11
WASHER, SPRING
92995-06100-00
Unavailable
12
HOOK 1
(865-47446-00-00)
Unavailable
13
ROLLER
865-47429-00-00
Unavailable
14
PIN, COTTER
91490-30030-00
$8.49
15
PIN, SPRING
91609-60036-00
Unavailable
16
SHAFT 1
865-47465-00-00
Unavailable
17
WASHER, PLATE (5J0)
90201-085E6-00
Unavailable
18
SPRING, BELLEVILLE
(829-16119-00-00)
Unavailable
19
BOLT, HEXAGON
97013-08050-00
Unavailable
20
BRACKET 1
865-47415-01-00
Unavailable
21
STOPPER 1
865-47495-00-00
Unavailable
22
STOPPER 2
865-47496-00-00
Unavailable
23
RUNNER, SLIDING 2
865-47422-00-00
Unavailable
24
ROLLER 2
(865-47439-00-00)
Unavailable
25
PIN, CLEVIS
90240-10028-00
Unavailable
26
CLIP
90468-18019-00
Unavailable
27
BRACKET, REAR 1
(865-47426-00-00)
Unavailable
28
BOLT SET (865,9010110200)
99999-02604-00
Unavailable
29
NUT(3BM)
95314-10600-00
Unavailable
30
BOLT
97014-08040-00
Unavailable
31
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
32
ARM, PIVOT 1
(878-47331-00-00)
Unavailable
33
TUBE, STRUCTURE
90440-25001-00
Unavailable
34
SPRING, TORSION
(90508-70163-00)
Unavailable
35
SPRING, TORSION
(90508-70164-00)
Unavailable
36
SHAFT, PIVOT
(878-47337-00-00)
Unavailable
37
BOLT (8J7)
97013-10030-00
Unavailable
38
WASHER 823214910000
90208-10012-00
Unavailable
39
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
40
SPACER
(878-47341-00-00)
Unavailable
41
HOOK 2
865-47447-00-00
Unavailable
42
NUT, SELF LOCKING
90185-10031-00
Unavailable
43
SHAFT 2
865-47475-00-00
Unavailable
44
BOLT (8J7)
97013-10030-00
Unavailable
45
WASHER 823214910000
90208-10012-00
Unavailable
46
ARM, PIVOT 2
878-47332-01-00
Unavailable
47
SHOCK ABSORBER
(874-47480-00-00)
Unavailable
48
PIN 1
(865-47449-00-00)
Unavailable
49
PIN, COTTER
91490-30030-00
$8.49
50
SPRING, TORSION
90508-65160-00
Unavailable
51
SPRING, TORSION
90508-65161-00
Unavailable
52
73 GPX CLEAT
(878-47116-00-00)
Unavailable
53
UNAVAILABLE IN PRICE BOOK
ACC-12250-19-00
Unavailable
54
METAL, GUIDE
878-47119-01-00
Unavailable
55
RIVET, SPEC''L SHAPE
90269-06005-00
Unavailable
56
BUSH, SPEC''L NYLON
(90386-22033-00)
Unavailable
