TRACK DRIVE GPX338F - GPX433F

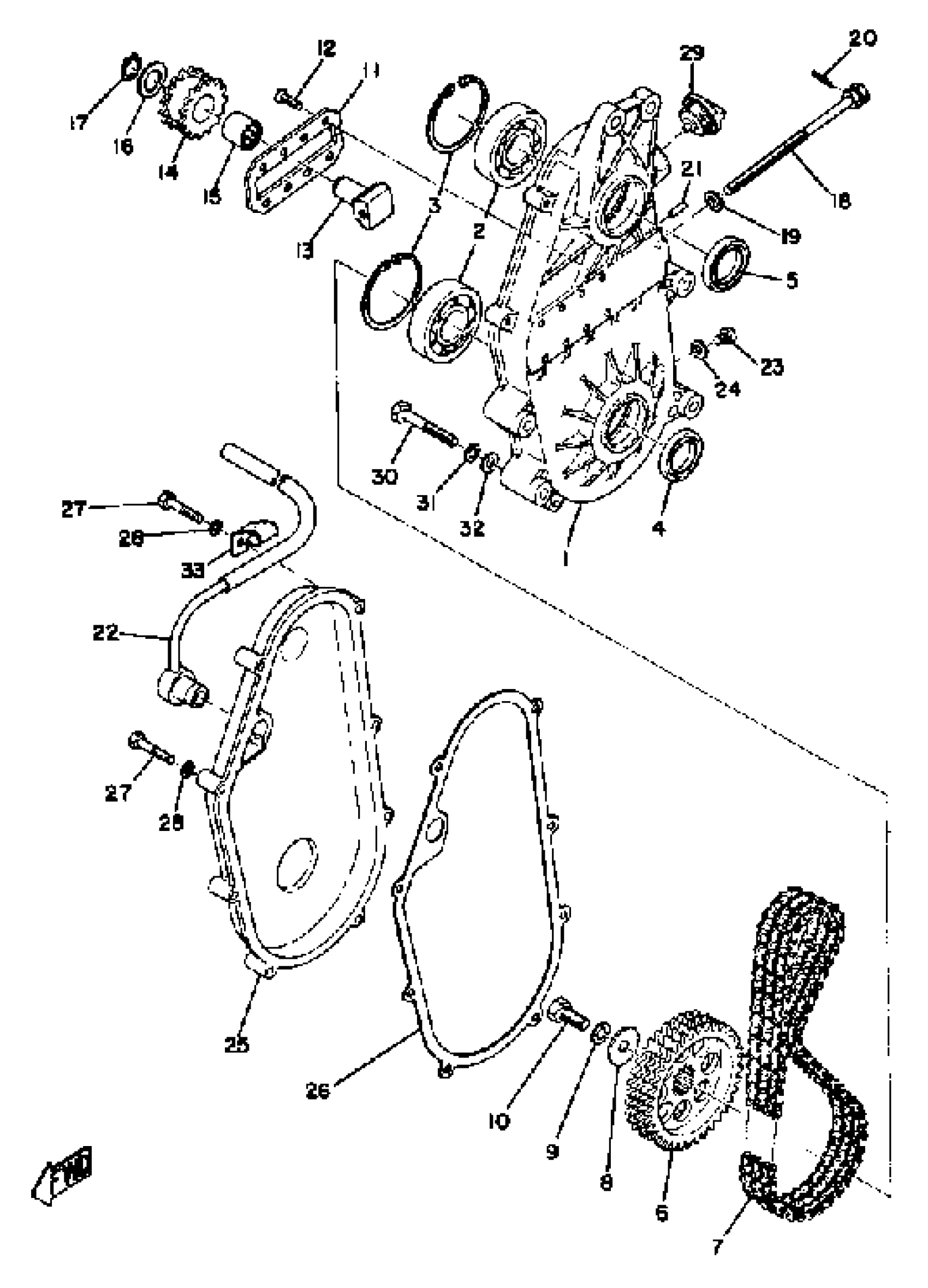

Yamaha GPX433F 1974 TRACK DRIVE GPX338F - GPX433F Diagram
#
1
HOUSING, CHAIN
(878-47541-00-00)
Unavailable
2
BEARING (8R9)
93306-30536-00
Unavailable
3
CIRCLIP(MF1)
99009-62500-00
$8.49
4
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
5
OIL SEAL (30X47X7-810)
93102-30083-00
$13.49
6
SPROCKET, CHN DRVN
(878-47548-50-00)
Unavailable
6
SPROCKET, CHN DRVN
(878-47548-60-00)
Unavailable
6
SPROCKET, CHN DRVN
878-47548-70-00
Unavailable
6
SPROCKET, CHN DRVN
(878-47548-80-00)
Unavailable
6
SPROCKET,CHN DRVN
8U9-47548-90-00
Unavailable
6
SPROCKET, CHN DRVN (35T) (878-47587-20)
878-47587-30-00
Unavailable
6
SPROCKET, CHN DRVN
878-47587-40-00
Unavailable
6
SPROCKET, CHN DRVN
(878-47587-50-00)
Unavailable
6
SPROCKET, CHN DRVN (31T)
8U9-47587-00-00
Unavailable
6
SPROCKET, CHN DRVN (888-47587-00) (33T)
8U9-47587-10-00
Unavailable
6
SPROCKET, CHN DRVN (878-47587-20) (35T)
8U9-47587-30-00
Unavailable
7
CHAIN 66 (RS35V-3 66L)
94850-35066-00
Unavailable
7
CHAIN 68 (RS35V-368L)
94850-35068-00
Unavailable
7
CHAIN 70 (RS35V-3 70L)
94850-35070-00
Unavailable
7
CHAIN 72 (RS35V-3 72L)
94850-35072-00
Unavailable
7
CHAIN 74
94850-35074-00
Unavailable
7
CHAIN 76 (RS35V-3 76L)
94850-35076-00
Unavailable
8
WASHER, PLATE (856)
90201-10321-00
Unavailable
9
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
10
BOLT(6TD)
97017-10025-00
Unavailable
11
HOLDER
(878-47613-00-00)
Unavailable
12
SCREW, OVAL HEAD
98603-06018-00
Unavailable
13
TENSIONER
878-47611-00-00
Unavailable
14
WHEEL
878-47612-00-00
Unavailable
15
BRG,CYL-CAL ROLLER 20G NT
93317-31701-00
Unavailable
16
WASHER, PLATE
90201-17406-00
Unavailable
17
CIRCLIP(1EY)
99009-17400-00
Unavailable
18
BOLT
90109-08249-00
Unavailable
19
WASHER (821)
90210-08002-00
Unavailable
20
CLIP
90468-16022-00
Unavailable
21
PIN, SPRING (6H4)
91690-30020-00
Unavailable
22
BREATHER
(857-47586-00-00)
Unavailable
23
SCREW PAN HEAD
98580-06010-00
Unavailable
24
GASKET 838153840000
90430-06016-00
Unavailable
25
CAP, HOUSING
(878-47543-00-00)
Unavailable
26
GASKET
878-47544-08-00
Unavailable
27
BOLT(3RV)
97014-06035-00
Unavailable
28
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
29
CAP 2
857-47559-00-00
Unavailable
30
BOLT, HEXAGON
97013-08055-00
Unavailable
31
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
32
WASHER, PLAIN
92990-08200-00
Unavailable
33
CLAMP
90465-06013-00
Unavailable
