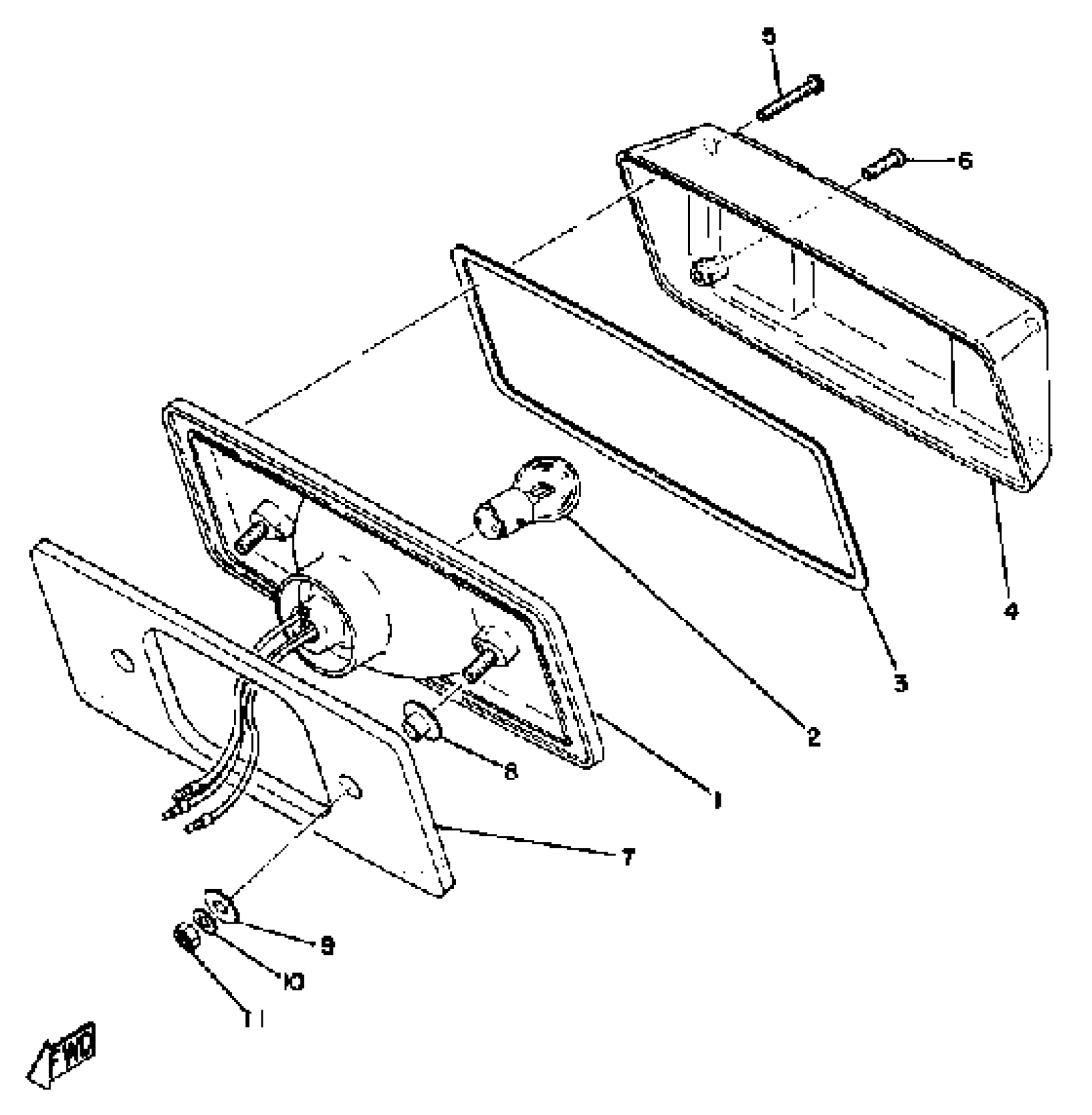

Yamaha GPX433F 1974 TAIL LAMP GPX338F - GPX433F Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSEMBLY

853-84710-00-00

Unavailable

1

TAILLIGHT UNIT ASSEMBLY

853-84710-00-00

Unavailable

2

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

3

SEAL

3TJ-14457-00-00

Unavailable

4

. LENS, TAILLIGHT

821-84721-00-00

Unavailable

5

SCREW, PAN

98507-04030-00

Unavailable

6

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

7

DAMPER

878-84753-00-00

Unavailable

8

COLLAR (838-84757-00)

90387-06024-00

$11.49

9

WASHER, PLATE 8221447500

90201-06057-00

$5.60

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable
