Description

Price

1

SKI 1

(878-23710-00-00)

Unavailable

1

SPRING ASSEMBLY 1

(878-23760-00-00)

Unavailable

2

RUNNER 1

878-23731-01-00

Unavailable

2

SPRING ASSEMBLY 2

(878-23770-00-00)

Unavailable

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

4

WASHER(6TC)

92907-08200-00

$8.49

5

. LEAF 1

878-23761-00-00

Unavailable

6

PLATE

(878-23774-00-00)

Unavailable

7

INSERT

(878-23775-00-00)

Unavailable

8

. SEAT, SPRING 1

878-23768-00-00

Unavailable

9

. BOLT

90101-10060-00

Unavailable

10

. SADDLE 1

806-23766-00-00

Unavailable

11

. WASHER, SPEC''L SHAP

90209-10069-00

Unavailable

12

NUT, FLANGE(3BM)

95704-10500-00

$4.29

13

PLATE, WEAR 1

878-23735-00-00

Unavailable

14

PIN, CLEVIS

90240-08019-00

Unavailable

15

WASHER(6TC)

92907-08200-00

$8.49

16

PIN COTTER

91490-30025-00

Unavailable

17

SHOCK ABSORBER ASSEMBLY

(878-23350-00-00)

Unavailable

18

COLLAR (878)

90387-08262-00

Unavailable

19

BOLT, HEXAGON

97017-08055-00

Unavailable

20

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

21

BOLT, WITH HOLE

90102-10023-00

Unavailable

22

NUT, SLOTTED

95306-10900-00

Unavailable

23

PIN, COTTER

91490-20025-00

Unavailable

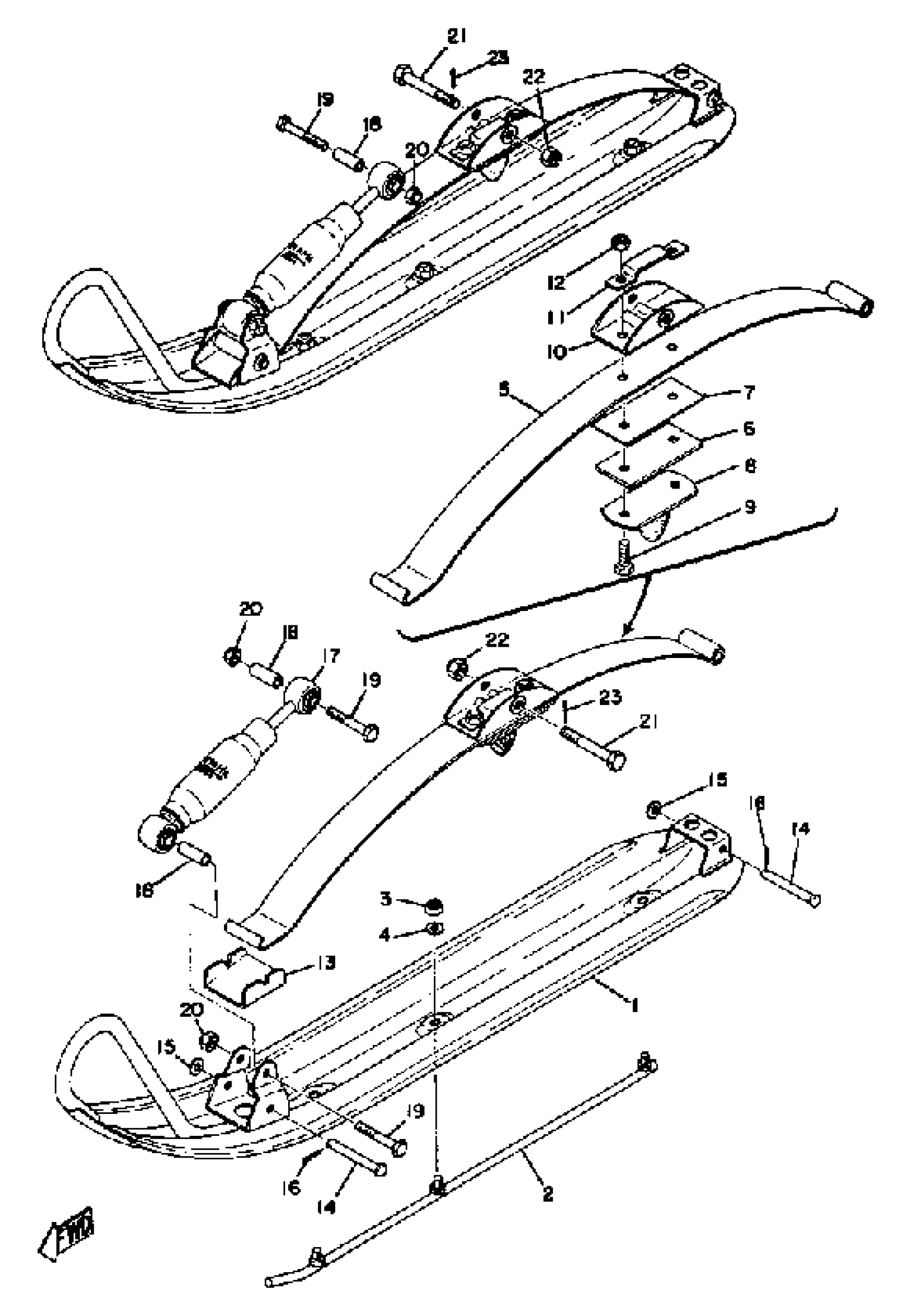

Yamaha GPX433F 1974 SKI GPX338F - GPX433F Diagram

SKI 1

SPRING ASSEMBLY 1

RUNNER 1

SPRING ASSEMBLY 2

NUT, SELF-LOCKING (3Y2)

WASHER(6TC)

. LEAF 1

PLATE

INSERT

. SEAT, SPRING 1

. BOLT

. SADDLE 1

. WASHER, SPEC''L SHAP

NUT, FLANGE(3BM)

PLATE, WEAR 1

PIN, CLEVIS

WASHER(6TC)

PIN COTTER

SHOCK ABSORBER ASSEMBLY

COLLAR (878)

BOLT, HEXAGON

NUT, SELF-LOCKING (3Y2)

BOLT, WITH HOLE

NUT, SLOTTED

PIN, COTTER
