SECONDARY SHEAVE GPX338F - GPX433F

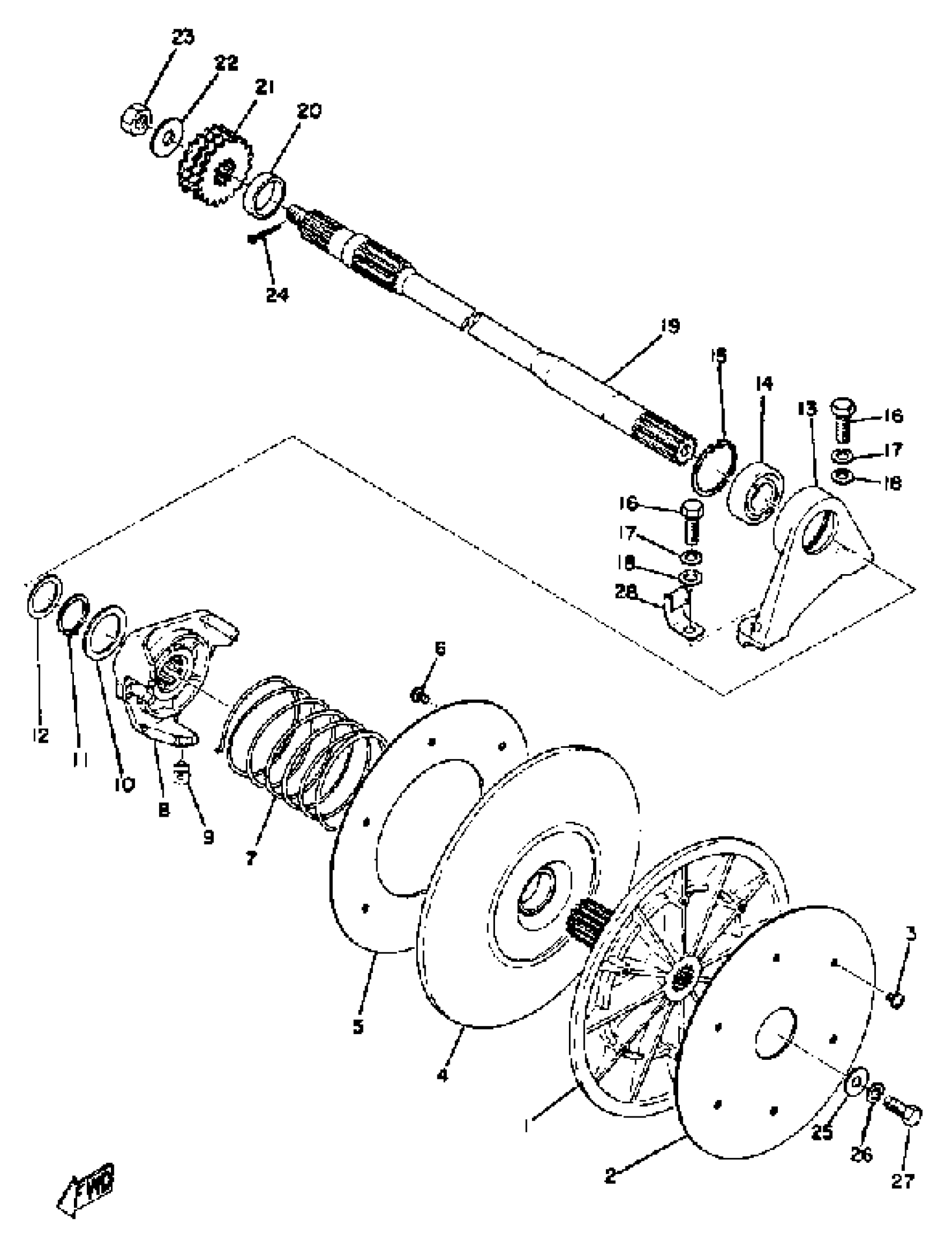

Yamaha GPX433F 1974 SECONDARY SHEAVE GPX338F - GPX433F Diagram
#
1
SEC FXD SHV
878-17660-00-00
Unavailable
2
PLATE 1
(878-17665-00-00)
Unavailable
3
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
4
SEC SLIDING SHEAVE
(878-17670-00-00)
Unavailable
5
PLATE 2
(878-17675-00-00)
Unavailable
6
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
7
SPRING, TORSION
(90508-45081-00)
Unavailable
7
SPRING, TORSION (856-17683-00)
90508-50210-00
Unavailable
8
SEAT, SEC SPRING
878-17684-00-00
Unavailable
9
SHOE, RAMP
801-17688-10-00
Unavailable
10
SHIM (856-17687-00)
90564-34003-00
Unavailable
11
CIRCLIP(86F)
93440-34170-00
$8.49
12
COLLAR, DISTANCE 1
(856-17685-00-10)
Unavailable
12
COLLAR, DISTANCE 1
856-17685-00-20
Unavailable
12
COLLAR, DISTANCE 1
(856-17685-00-50)
Unavailable
13
HOUSING, BEARING
878-47631-00-00
Unavailable
14
BEARING
93306-20509-00
Unavailable
15
CIRCLIP(26H)
99009-52500-00
Unavailable
16
BOLT (8J7)
97013-10030-00
Unavailable
17
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
18
WASHER, PLATE 3711117500
90201-10124-00
Unavailable
19
SHAFT, SECONDARY
(878-17681-00-00)
Unavailable
20
COLLAR
90387-25259-00
Unavailable
21
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
Unavailable
21
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
Unavailable
21
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
Unavailable
21
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
Unavailable
21
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
Unavailable
21
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
Unavailable
21
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
Unavailable
21
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
Unavailable
21
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
Unavailable
21
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
Unavailable
22
WASHER, PLATE
90201-14319-00
Unavailable
23
NUT(6TC)
95337-14600-00
Unavailable
24
PIN, COTTER
91490-30030-00
Unavailable
25
WASHER, PLATE (856)
90201-10321-00
Unavailable
26
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
27
BOLT(6TD)
97017-10025-00
Unavailable
28
CLAMP
(90465-06012-00)
Unavailable
