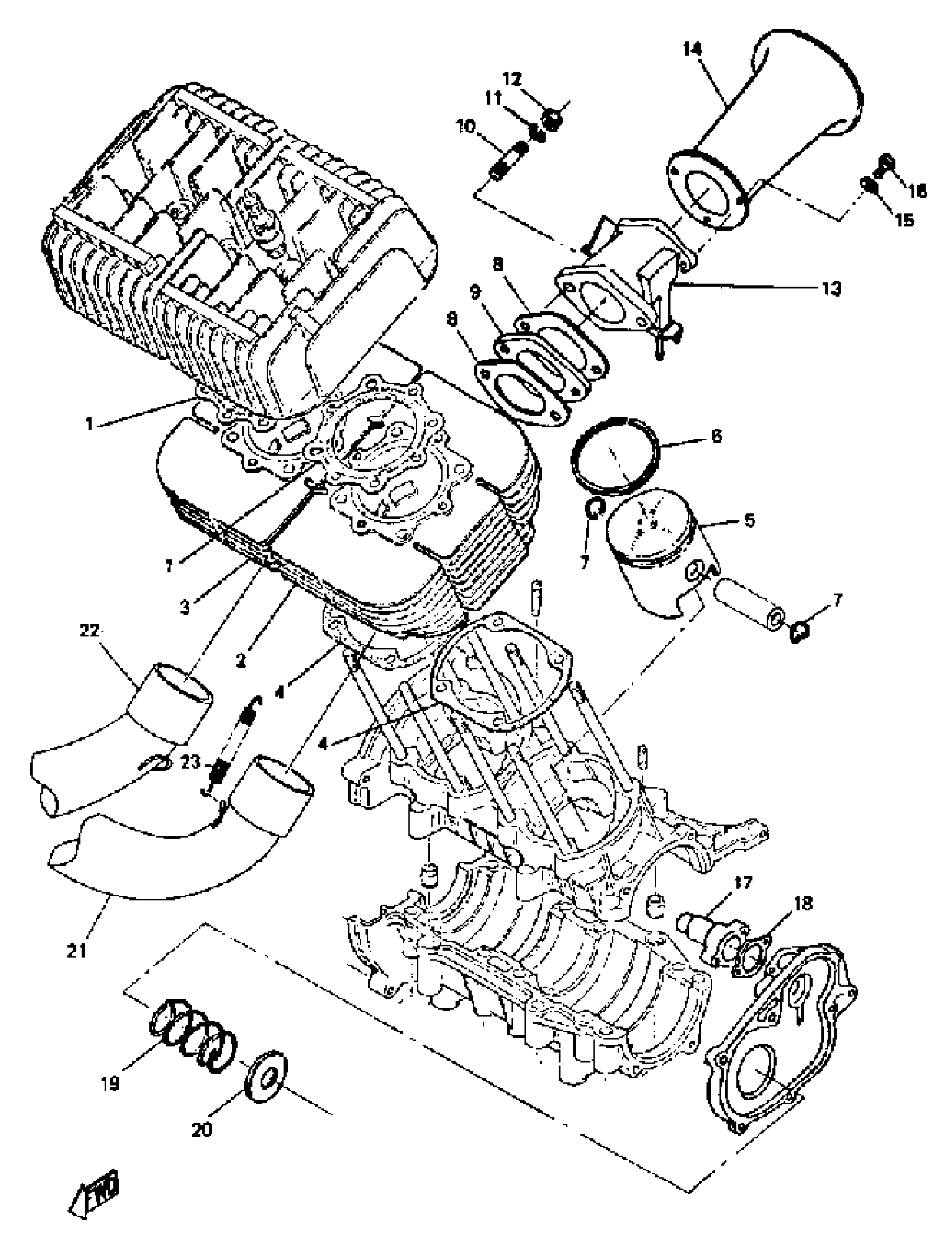

Yamaha GPX433F 1974 GPX SR KIT PARTS LIST1 Diagram

#

Description
Price

1

GASKET, CYLINDER HEAD 1

(878-11181-70-00)

Unavailable

1

GASKET, CYLINDER HEAD 1

(879-11181-70-00)

Unavailable

2

CYLINDER 1

(878-11311-70-00)

Unavailable

2

CYLINDER 1

(879-11311-70-00)

Unavailable

3

CYLINDER 2

(878-11321-70-00)

Unavailable

3

CYLINDER 2

(879-11321-70-00)

Unavailable

4

GASKET, CYLINDER

846-11351-02-00

$5.49

4

GASKET, CYLINDER

857-11351-09-00

$4.42

5

PISTON STD

(878-11631-70-96)

Unavailable

5

PISTON STD

(879-11631-70-96)

Unavailable

6

RING, PISTON STD

829-11611-00-00

Unavailable

6

RING, PISTON

878-11611-71-00

Unavailable

7

CLIP 6041163400

93450-20026-00

$8.49

8

GASKET, MANIFOLD

812-13556-09-00

Unavailable

9

JOINT, CARBURETOR

824-13585-00-00

Unavailable

10

BOLT STUD 811135580000

90116-08042-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

12

MIXING ASSEMBLY

(879-13710-70-00)

Unavailable

12

. NUT

95380-08700-00

Unavailable

14

FUNNEL

828-14479-70-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

GEAR, PUMP DRIVEN 2

878-13326-70-00

Unavailable

18

GASKET, PUMP CASE

126-13116-01-00

Unavailable

19

SPRING, COMPRESSION

(90501-55230-00)

Unavailable

19

SPRING, COMPRESSION

(90501-55242-00)

Unavailable

20

CAM

878-17623-70-00

Unavailable

20

CAM

(879-17623-70-00)

Unavailable

23

SPRING, TENSION

90506-16198-00

Unavailable
