Description

Price

1

FRONT AXLE

(878-47510-00-00)

Unavailable

2

WHEEL, SPROCKET 1

(856-47531-00-00)

Unavailable

3

RIM, SPROCKET WHL 2

(878-47522-00-00)

Unavailable

4

BOLT, HEXAGON

97013-08030-00

$2.49

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

GUIDE WHEEL

(878-47530-00-00)

Unavailable

7

COLLAR

(878-47526-01-00)

Unavailable

8

SCREW, SPEC''L SHAPE

(90149-08001-00)

Unavailable

9

OIL SEAL,SD-TYPE

93102-25332-00

Unavailable

10

HOUSING, FRONT AXLE

841-47551-00-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

BOLT, HEXAGON

97013-08030-00

$2.49

13

BEARING

93306-00412-00

Unavailable

14

CIRCLIP, R-TYPE

93420-44029-00

Unavailable

15

WASHER 810475810000

90208-22001-00

$8.49

16

NUT (821-47579-00)

90170-22094-00

Unavailable

17

CAP (NOT AVAIL)

810-47552-00-00

Unavailable

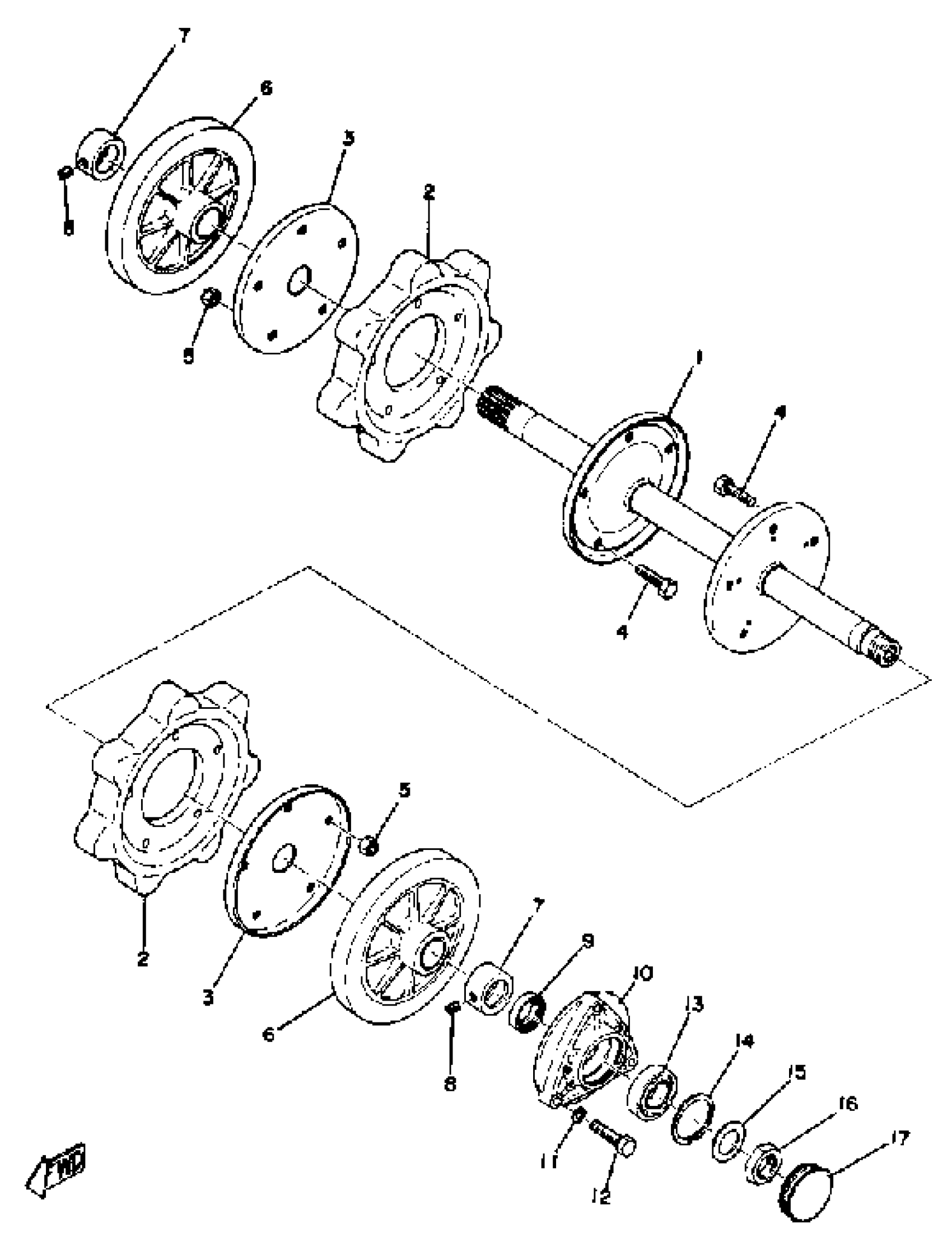

Yamaha GPX433F 1974 FRONT AXLE GPX338F - GPX433F Diagram

FRONT AXLE

WHEEL, SPROCKET 1

RIM, SPROCKET WHL 2

BOLT, HEXAGON

NUT, SELF-LOCKING (3Y2)

GUIDE WHEEL

COLLAR

SCREW, SPEC''L SHAPE

OIL SEAL,SD-TYPE

HOUSING, FRONT AXLE

YBS67-8 WASHER, SPRING

BOLT, HEXAGON

BEARING

CIRCLIP, R-TYPE

WASHER 810475810000

NUT (821-47579-00)

CAP (NOT AVAIL)
