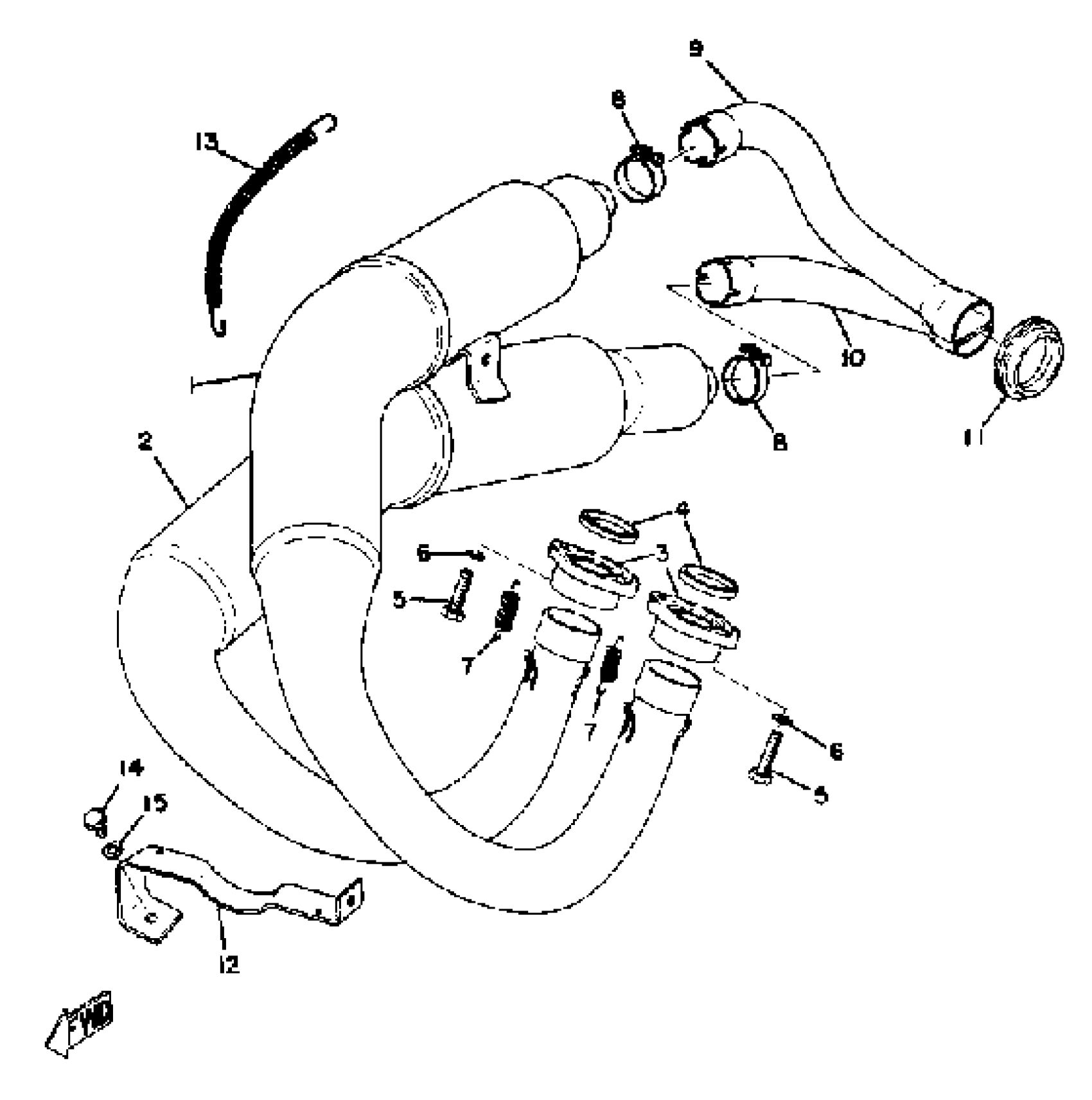

Yamaha GPX433F 1974 EXHAUST GPX338F - GPX433F Diagram

#

Description

Price

1

EXHAUST PIPE ASSEMBLY L

(878-14610-02-00)

Unavailable

1

EXHAUST PIPE ASSEMBLY L

(879-14610-02-00)

Unavailable

2

EXHAUST PIPE ASSEMBLY R

(878-14620-02-00)

Unavailable

2

EXHAUST PIPE ASSEMBLY R

(879-14620-02-00)

Unavailable

3

NUT, RING

(828-14612-70-00)

Unavailable

4

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

5

BOLT (682)

97013-08025-00

$8.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

SPRING, TENSION (90506-16002)

90506-20040-00

Unavailable

8

CLAMP, HOSE

90460-39038-00

Unavailable

9

PIPE, TAIL

(878-14784-00-00)

Unavailable

9

PIPE, TAIL

(879-14784-00-00)

Unavailable

10

PIPE, TAIL 2

878-14795-00-00

Unavailable

10

PIPE, TAIL 2

879-14795-00-00

Unavailable

11

PROTECTOR, MUFF 1

878-14718-01-00

Unavailable

12

STAY, MUFFLER 1

(878-14771-02-00)

Unavailable

13

SPRING, TENSION (8BU1)

90506-16494-00

Unavailable

14

BOLT, HEXAGON

97013-08016-00

Unavailable

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60
