CRANK - PISTON GPX338F - GPX433F

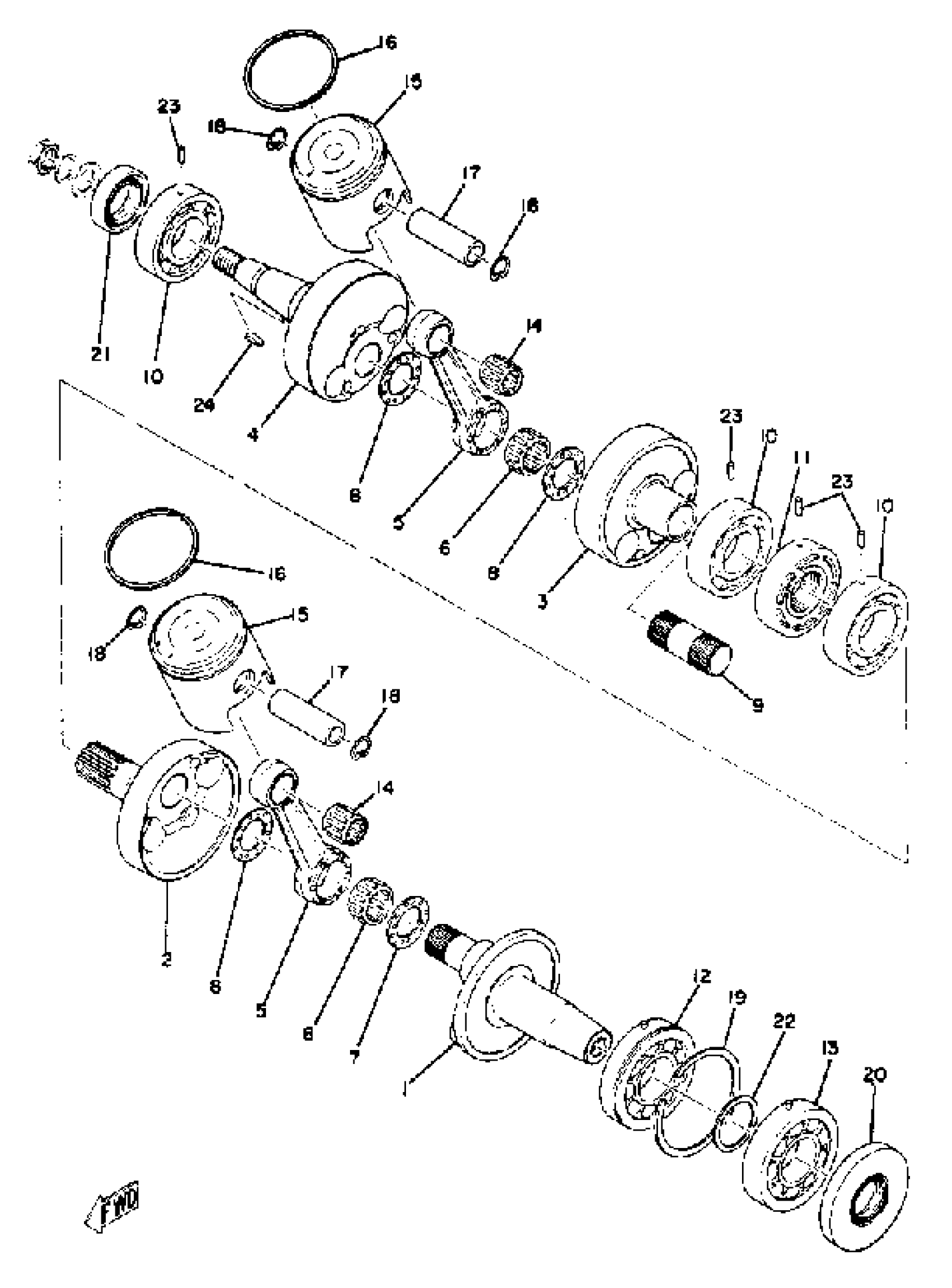

Yamaha GPX433F 1974 CRANK - PISTON GPX338F - GPX433F Diagram
#
1
CRANKSHAFT ASSEMBLY
(878-11400-00-00)
Unavailable
1
CRANK 1
(878-11412-00-00)
Unavailable
2
CRANK 2
(878-11422-00-00)
Unavailable
3
. CRANK 3
878-11432-00-00
Unavailable
4
CRANK 4
(878-11442-00-00)
Unavailable
5
. ROD, CONNECTING (838-11651-00)
8A7-11651-00-00
Unavailable
6
BEARING
93310-424E8-00
Unavailable
7
. WASHER, SPEC''L SHAP (878-11685-01)
90209-24058-00
Unavailable
8
WASHER (152-11685-00)
90209-24073-00
$14.99
9
PIN, CRANK 1
(878-11681-00-00)
Unavailable
10
BEARING(8V0)
93306-20633-00
$76.99
11
SEAL, LABYRINTH 1
(168-11515-00-00)
Unavailable
12
BEARING (8R6)
93306-30625-00
$83.99
13
BEARING (8R6)
93306-30625-00
$83.99
14
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
15
PISTON STD
878-11631-01-96
Unavailable
15
PISTON 1 O/S 0.25
(878-11635-01-00)
Unavailable
15
PISTON 2 O/S 0.50
(878-11636-01-00)
Unavailable
15
PISTON STD
879-11631-00-96
Unavailable
15
PISTON 1 O/S 0.25
879-11635-00-00
Unavailable
15
PISTON 2 O/S 0.50
879-11636-00-00
Unavailable
16
RING, PISTON (STD)
820-11611-00-00
Unavailable
16
RING, PISTON (1ST O.S)
820-11611-10-00
Unavailable
16
RING, PISTON (2ND O.S)
820-11611-20-00
Unavailable
16
RING, PISTON (STD)
878-11611-00-00
Unavailable
16
RING, PISTON (1ST O.S)
878-11611-10-00
Unavailable
16
RING, PISTON 2ND (2ND O.S)
878-11611-20-00
Unavailable
17
PIN, PISTON
168-11633-00-00
Unavailable
17
PIN, PISTON
818-11633-00-00
Unavailable
18
CLIP 6041163400
93450-20026-00
Unavailable
19
CIRCLIP, OUTER
93440-78011-00
Unavailable
20
OIL SEAL (878).
93103-32095-00
Unavailable
21
OIL SEAL(83R)
93103-32156-00
Unavailable
22
WASHER (8H0)
90201-34683-00
Unavailable
23
PIN,DOWEL (168)
93604-12037-00
Unavailable
24
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
