CARBURETOR (GPX433F)

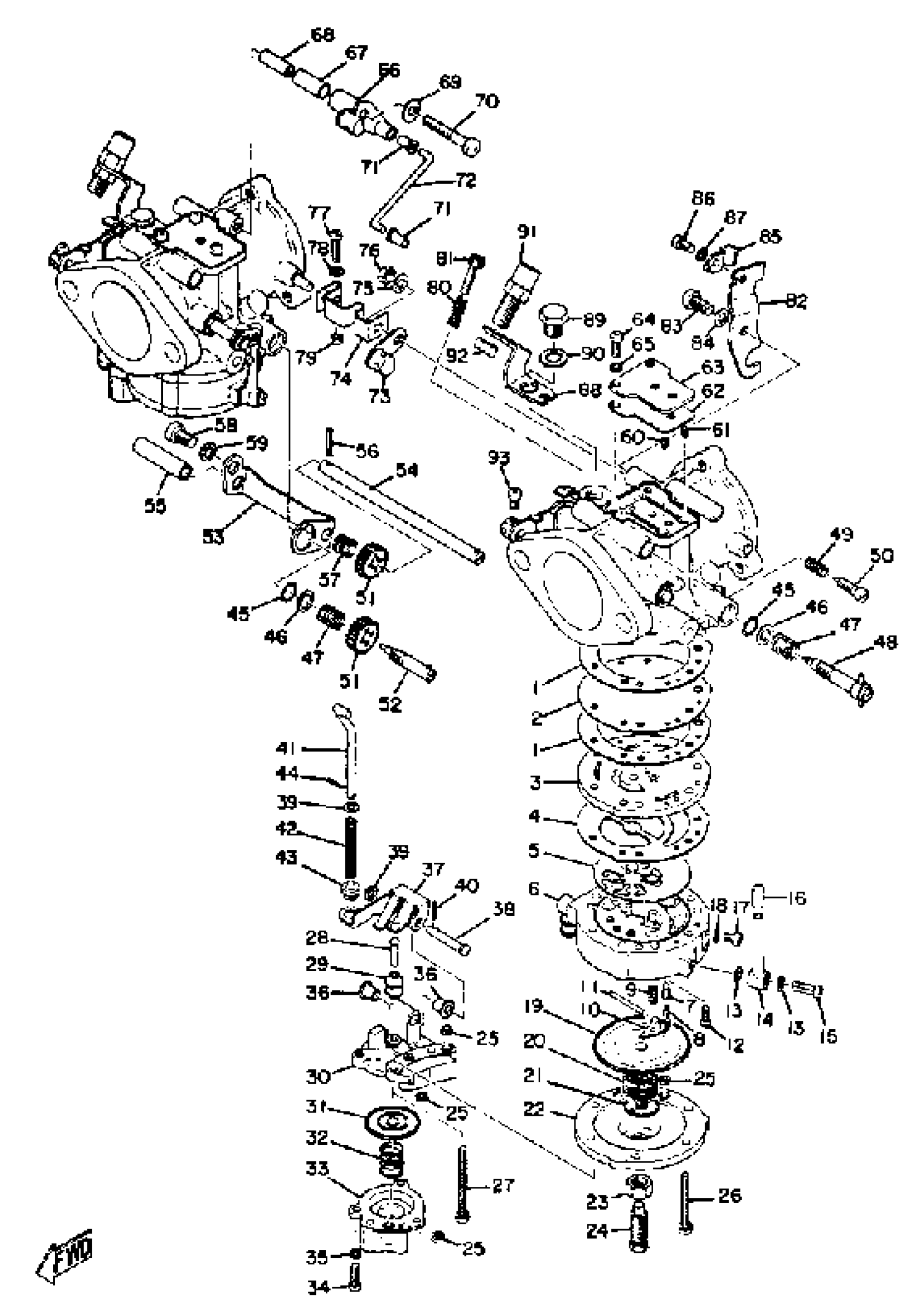

Yamaha GPX433F 1974 CARBURETOR (GPX433F) Diagram
#
1
CARBURETOR ASSEMBLY 1
(879-14501-00-00)
Unavailable
1
GASKET
879-14536-09-00
$18.49
1
GASKET
879-14536-09-00
$18.49
2
CARBURETOR ASSEMBLY 2
(879-14502-00-00)
Unavailable
2
. DIAPHRAGM, PUMP
879-14541-01-00
Unavailable
3
BODY, PUMP 1
(879-14542-00-00)
Unavailable
4
GASKET
(879-14553-00-00)
Unavailable
5
VALVE,CHECK
806-14552-01-00
$56.99
6
. BODY, PUMP 2
879-14543-00-00
Unavailable
7
VALVE
838-14546-00-00
$43.99
8
. PIN, FLOAT
676-14186-00-00
Unavailable
9
. SPRING
810-14556-00-00
Unavailable
10
ARM, FLOAT
(810-14547-00-00)
Unavailable
11
PIN, FLOAT ARM
(806-14548-00-00)
Unavailable
12
SCREW, FLAT
98707-03008-00
$7.49
13
. WASHER
806-14559-00-00
Unavailable
14
. PIPE, AIRVENT
810-14197-02-00
Unavailable
15
. SCREW
8A1-14592-00-00
Unavailable
16
. CAP, BLIND
810-24462-01-00
Unavailable
17
SCREW
(806-14567-01-00)
Unavailable
18
. WASHER
810-14597-00-00
Unavailable
19
DIAPHRAGM
810-14545-00-00
Unavailable
20
. SPRING, COMPRESSION
90501-06213-00
Unavailable
21
SEAT, SPRING
(810-14136-00-00)
Unavailable
22
BODY, PUMP 3
(879-14544-00-00)
Unavailable
23
. NUT
95380-08700-00
Unavailable
24
. SCREW, STOP
824-14565-00-00
Unavailable
25
. O-RING
866-14561-00-00
Unavailable
26
SCREW
(824-14567-00-00)
Unavailable
27
SCREW
(858-14567-00-00)
Unavailable
28
. PIN, FLOAT ARM
866-14548-00-00
Unavailable
29
COVER
(866-14967-00-00)
Unavailable
30
BODY, PUMP 4
(866-14551-00-00)
Unavailable
31
DIAPHRAGM
(866-14545-00-00)
Unavailable
32
SPRING, COMPRESSION
(90501-09212-00)
Unavailable
33
COVER, FUEL
(866-14540-00-00)
Unavailable
34
SCREW, PAN HEAD
98511-04012-00
Unavailable
35
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
36
COLLAR
(866-14578-00-00)
Unavailable
37
ARM
(879-14528-00-00)
Unavailable
38
PIN, LEVER
(866-14554-00-00)
Unavailable
39
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
40
. PIN, COTTER
91490-12012-00
Unavailable
41
ROD
(879-14577-00-00)
Unavailable
42
SPRING
(866-14589-00-00)
Unavailable
43
COLLAR
(866-14535-00-00)
Unavailable
44
SPRING
(866-14579-00-00)
Unavailable
45
. O-RING
824-14564-00-00
Unavailable
46
. WASHER
838-14597-00-00
Unavailable
47
SPRING, AJST SCREW
(824-14533-00-00)
Unavailable
48
SCREW, ADJUST
(824-14521-00-00)
Unavailable
49
SPRING, COMPRESSION
(90501-10237-00)
Unavailable
50
SCREW, ADJUST
(865-14522-00-00)
Unavailable
51
GEAR
(844-42152-00-00)
Unavailable
52
SCREW, ADJUST
(856-14521-00-00)
Unavailable
53
PLATE
(879-14527-00-00)
Unavailable
54
SHAFT, LINK
(879-41258-00-00)
Unavailable
55
COLLAR
(879-14534-00-00)
Unavailable
56
PIN, SPRING
(856-14550-00-00)
Unavailable
57
SPRING, COMPRESSION
(90501-07010-00)
Unavailable
58
SCREW PAN HEAD
98580-06010-00
Unavailable
59
WASHER, SPRING
92995-06100-00
Unavailable
60
. JET #45 (#45)
865-14515-45-00
Unavailable
61
JET #65
(865-14515-65-00)
Unavailable
62
GASKET
(865-14537-00-00)
Unavailable
63
PLATE
(865-14527-00-00)
Unavailable
64
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
65
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
66
. LEVER
879-14573-00-00
Unavailable
67
COLLAR
(806-14534-00-00)
Unavailable
68
COLLAR
(806-14578-00-00)
Unavailable
69
WASHER
(806-14597-00-00)
Unavailable
70
SCREW, PAN HEAD
98517-05030-00
Unavailable
71
COLLAR
(865-14535-00-00)
Unavailable
72
ROD, CHOKE
(879-14585-00-00)
Unavailable
73
. LEVER
879-14582-00-00
Unavailable
74
CONNECTOR
(879-14588-00-00)
Unavailable
75
WASHER
(806-14598-00-00)
Unavailable
76
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
77
SCREW, STOP
(844-14566-00-00)
Unavailable
78
WASHER, PLATE
(90201-04436-00)
Unavailable
79
NUT(6TA)
95307-04600-00
Unavailable
80
SPRING, AJST SCREW
(806-14533-00-00)
Unavailable
81
SCREW, STOP
(810-14523-00-00)
Unavailable
82
PLATE, STAY
(879-14580-00-00)
Unavailable
83
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
84
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
85
. BRACKET
879-14581-00-00
Unavailable
86
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
87
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
88
. BRACKET, THROTTLE
879-14571-00-00
Unavailable
89
BOLT(62E)
97013-08012-00
Unavailable
90
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
91
ADJUSTER, CABLE
(879-14576-00-00)
Unavailable
92
. NUT, HEXAGON
90170-08139-00
Unavailable
93
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
