Description

Price

1

CDI MAGNETO ASSEMBLY

(878-85500-10-00)

Unavailable

1

.. SPACER

888-81318-10-00

Unavailable

1

CDI MAGNETO ASSEMBLY

(888-85500-10-00)

Unavailable

1

.. COIL, CHARGE

888-85541-10-00

Unavailable

1

CHARGE COIL

(99999-00850-00)

Unavailable

2

. COIL, LIGHTING 1

878-81313-10-00

Unavailable

3

. COIL, LIGHTING 2

878-81314-10-00

Unavailable

4

. SPACER

647-81318-10-00

Unavailable

5

SCREW, PAN

98507-05035-00

$8.49

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

COIL PULSER

(878-85543-10-00)

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

. LEAD WIRE ASSEMBLY

878-85515-10-00

Unavailable

12

. CLAMP

109-81328-11-00

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

. ROTOR ASSEMBLY

878-85550-10-00

Unavailable

16

. ROTOR ASSEMBLY

878-85550-10-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

COVER, HOLE

(812-81362-00-00)

Unavailable

19

NUT

90170-16425-00

Unavailable

20

WASHER(JN5)

92907-16100-00

Unavailable

21

WASHER, PLATE (32N)

90201-163G6-00

Unavailable

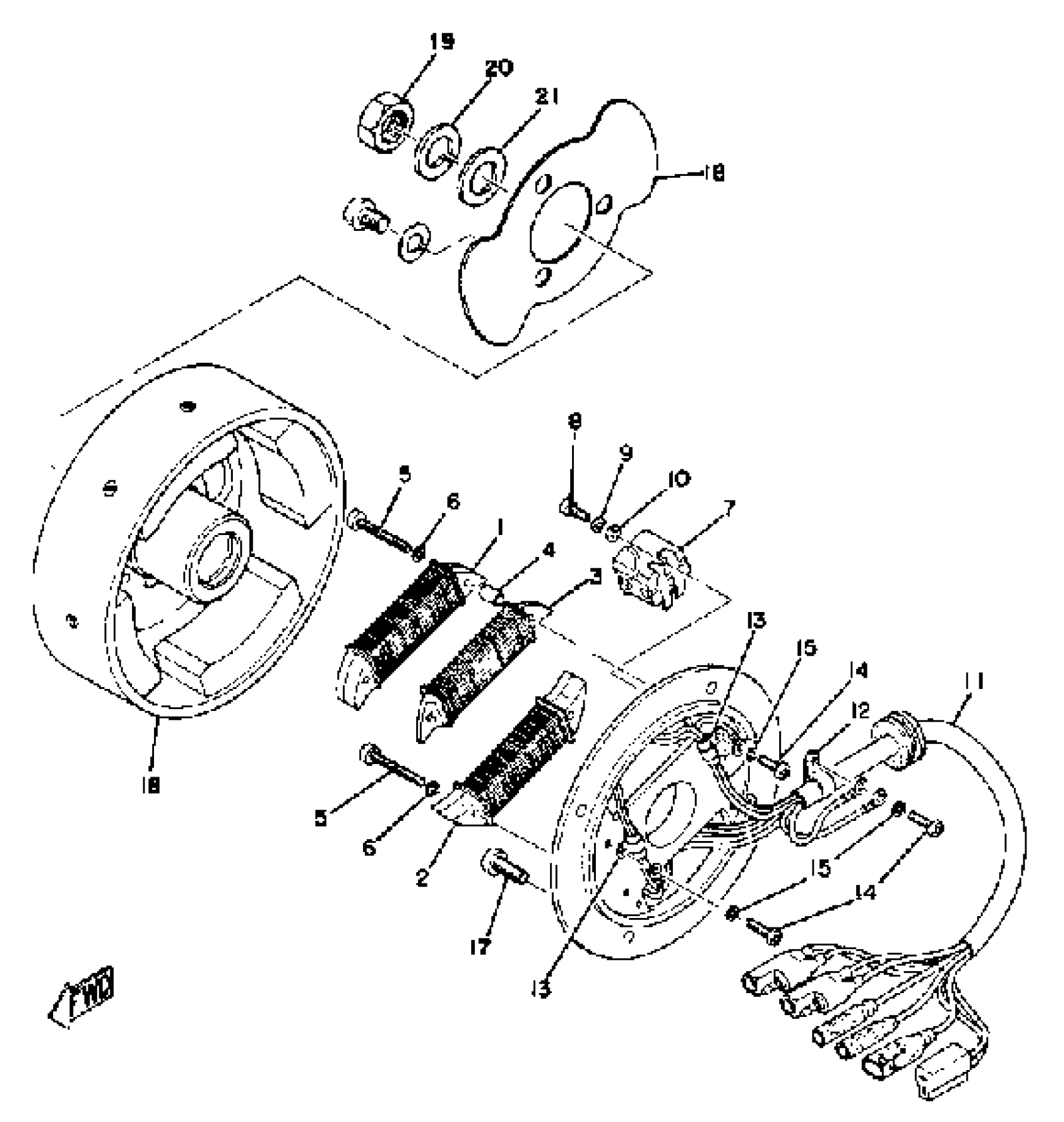

Yamaha GPX433F 1974 C - D - I - MAGNETO GPX338F - GPX433F Diagram

CDI MAGNETO ASSEMBLY

.. SPACER

CDI MAGNETO ASSEMBLY

.. COIL, CHARGE

CHARGE COIL

. COIL, LIGHTING 1

. COIL, LIGHTING 2

. SPACER

SCREW, PAN

YBS67-5 WASHER, SPRING

COIL PULSER

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

YBS66-4 WASHER, PLAIN

. LEAD WIRE ASSEMBLY

. CLAMP

SCREW, PAN HEAD (713)

YBS67-4 WASHER, SPRING

. ROTOR ASSEMBLY

. ROTOR ASSEMBLY

SCREW, PAN

COVER, HOLE

NUT

WASHER(JN5)

WASHER, PLATE (32N)
