2000 Yamaha GP800 (GP800Y) Starting Motor Diagram

← All diagrams

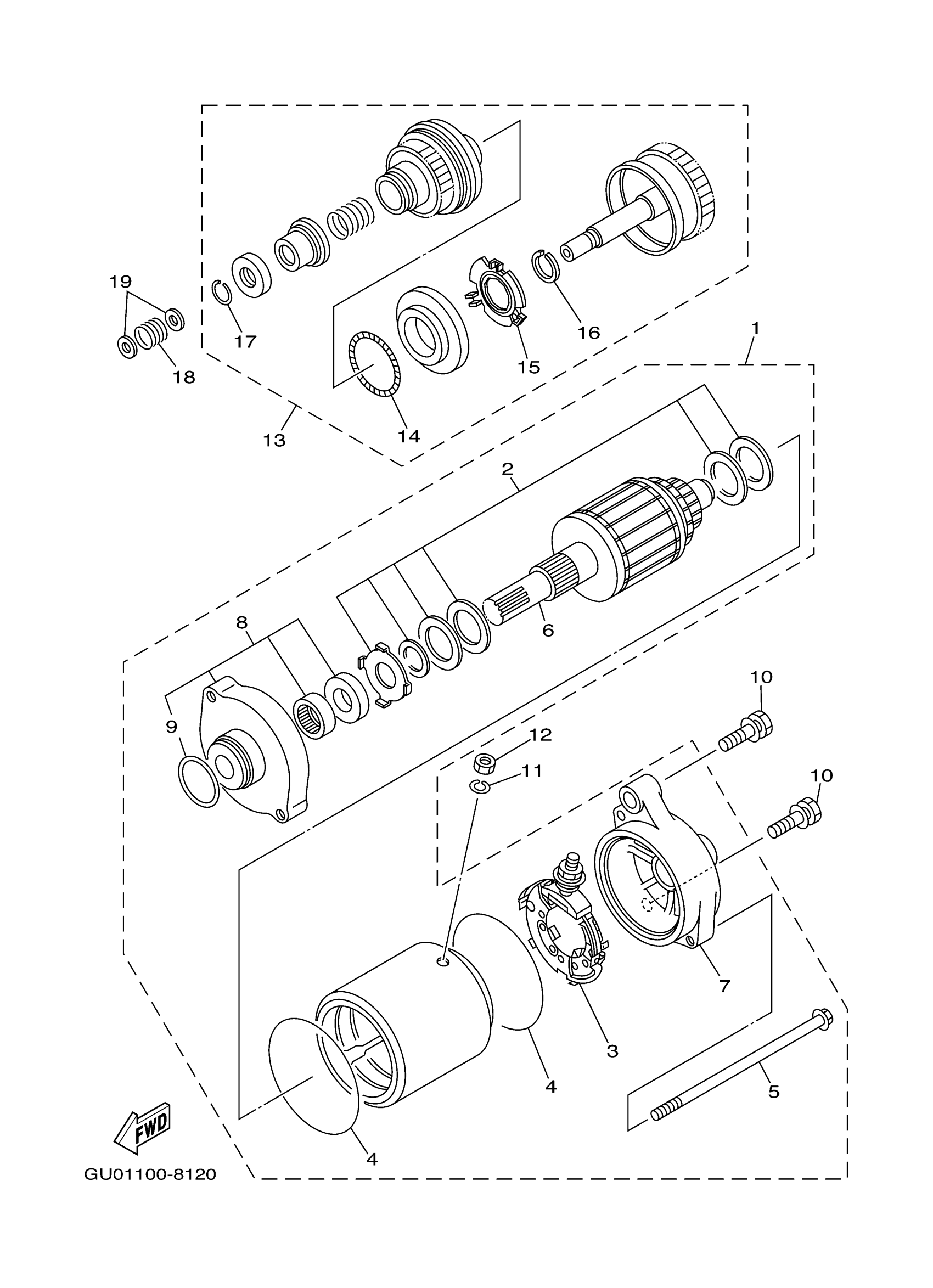

Find the part on the Starting Motor diagram for your 2000 Yamaha GP800 (GP800Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha GP800 (GP800Y) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSY

63M-81800-00-00

1
Out of stock

2

WASHER KIT

3AJ-81809-00-00

—
Out of stock

3

. BRUSH HOLDER ASSY

6M6-81840-10-00

1
Out of stock

4

GASKET

35C-81844-00-00

—
Out of stock

5

. BOLT

6M6-81826-00-00

1
Out of stock

6

. ARMATURE ASSY

6M6-81850-00-00

1
Out of stock

7

. REAR BRACKET ASSY

63M-81830-00-00

1
Out of stock

8

. FRONT BRACKET ASSY

6M6-81830-00-00

1
Out of stock

9

O-RING (437)

93210-24235-00

1
Out of stock

10

BOLT (682)

97013-08025-00

1
Out of stock

11

WASHER, SPRING

92995-06100-00

1
Out of stock

12

NUT(650)

95380-06700-00

1
Out of stock

13

IDLE GEAR COMP.

6M6-8183E-01-00

1
Out of stock

14

. WEIGHT SPRING

6M6-81866-00-00

1
Out of stock

15

. WEIGHT HOLDER

6M6-81865-00-00

1
Out of stock

16

CIRCLIP(6M6)

93440-25M08-00

—
Out of stock

17

CIRCLIP(6M6)

93450-18M06-00

—
Out of stock

18

SPRING, COMPRESSION

90501-14M73-00

1
Out of stock

19

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock
