2000 Yamaha GP800 (GP800Y) Electrical 1 Diagram

← All diagrams

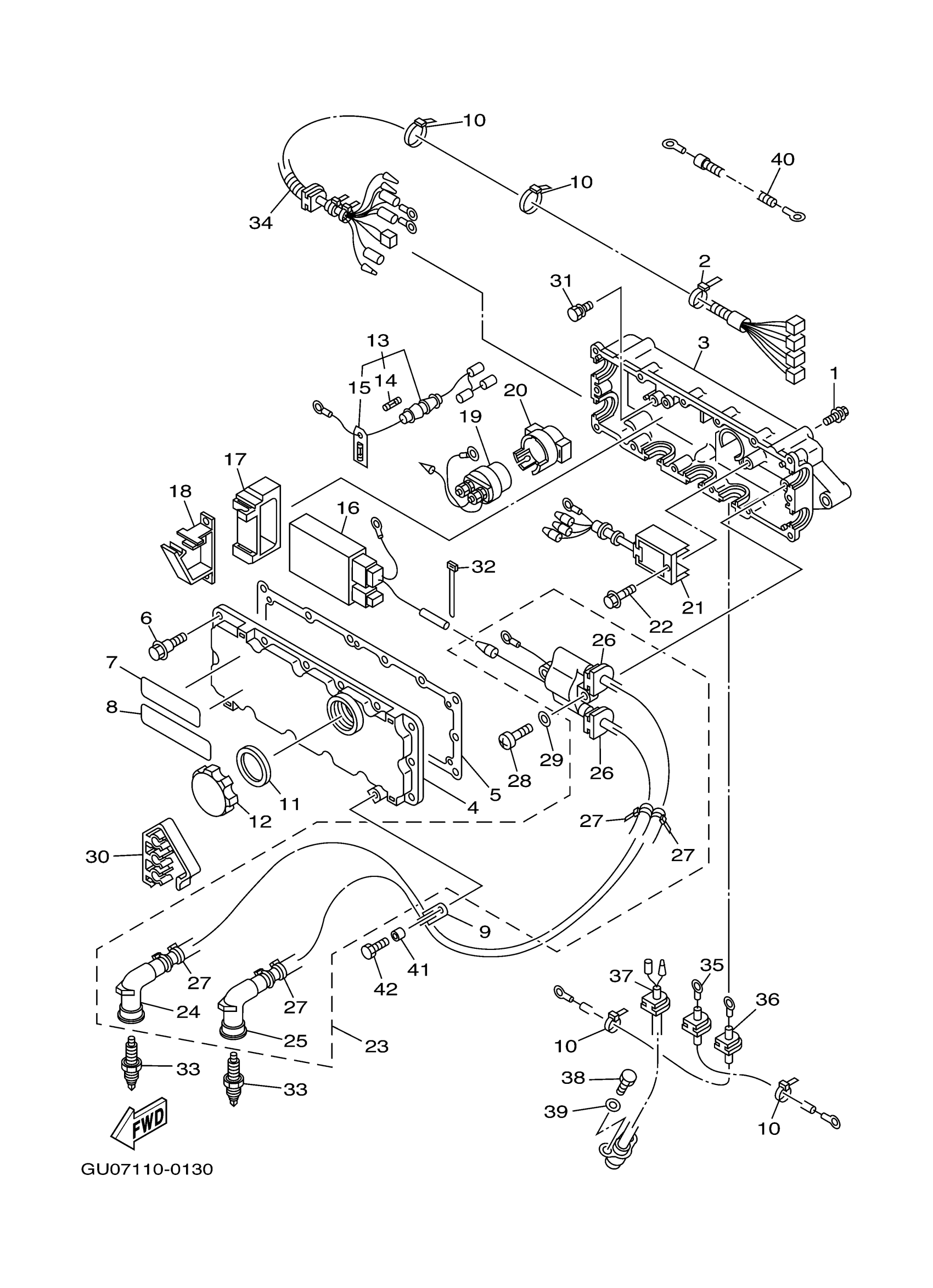

Find the part on the Electrical 1 diagram for your 2000 Yamaha GP800 (GP800Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha GP800 (GP800Y) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, WITH WASHER

90119-08826-00

1

$4.69

In stock

2

CLAMP(62T)

90465-12M56-00

1

$7.15

In stock

3

HOUSING

66E-8552A-00-94

1

$203.99

In stock

4

COVER, CASE

66E-8552E-00-00

1
Out of stock

5

GASKET, TERMINAL

66E-81921-00-00

1

$56.99

In stock

6

BOLT

90109-05MA0-00

1

$12.99

In stock

7

MARK 3

6R7-83623-40-00

1

$7.38

In stock

8

PLATE, EPA

66E-2179X-01-00

1
Out of stock

9

CLAMP

90465-12M53-00

1

$5.08

In stock

10

CLAMP(6E8)

90465-13M39-00

1

$4.66

In stock

11

GASKET

6M6-81844-00-00

1

$10.99

In stock

12

CAP

6M6-8132W-00-00

1

$14.49

In stock

13

FUSE HOLDER ASSY

66E-82150-00-00

1
Out of stock

14

FUSE (10A)

1E6-82151-00-00

1

$6.22

In stock

15

FUSE SPEAR (10A)

6K8-82159-01-00

1
Out of stock

16

C.D.I. UNIT ASSY

66E-85540-00-00

1

$358.99

In stock

17

BAND

64X-85546-00-00

1
Out of stock

18

CLAMP

90464-06M29-00

1

$6.46

In stock

19

STARTER RELAY ASSY

6G1-81941-10-00

1

$71.27

In stock

20

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

21

RECTIFIER & REGULATOR ASSY

63M-81960-00-00

1
Out of stock

22

BOLT, HEXAGON W/W DEEP RECESS

97E95-06512-00

1
Out of stock

23

IGNITION COIL ASSY

64X-85570-01-00

1

$251.25

In stock

24

. CAP, PLUG

62E-82371-11-00

1

$42.99

In stock

25

. CAP, PLUG

62E-82371-11-00

1

$42.99

In stock

26

GROMMET

90480-06M43-00

1

$5.93

In stock

27

CLAMP

90465-10098-00

1

$2.24

In stock

28

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

29

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

30

CLAMP, CORD

65U-81317-10-00

1

$7.38

In stock

31

SCREW, WITH WASHER

97985-06216-00

1

$3.30

In stock

32

CLAMP

90465-10098-00

1

$2.24

In stock

33

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

1
Out of stock

34

EXTENSION, WIRE LEAD

66E-82553-00-00

1
Out of stock

35

WIRE, LEAD

6M6-82117-21-00

1
Out of stock

36

WIRE, LEAD

66E-82117-10-00

1

$108.99

In stock

37

THERMOSWITCH ASSY

67U-82560-00-00

1
Out of stock

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

WIRE, LEAD

61L-82117-00-00

1

$106.99

In stock

41

COLLAR

90387-06M05-00

1

$7.12

In stock

42

SCREW, TAPPING

97780-60425-00

1
Out of stock
