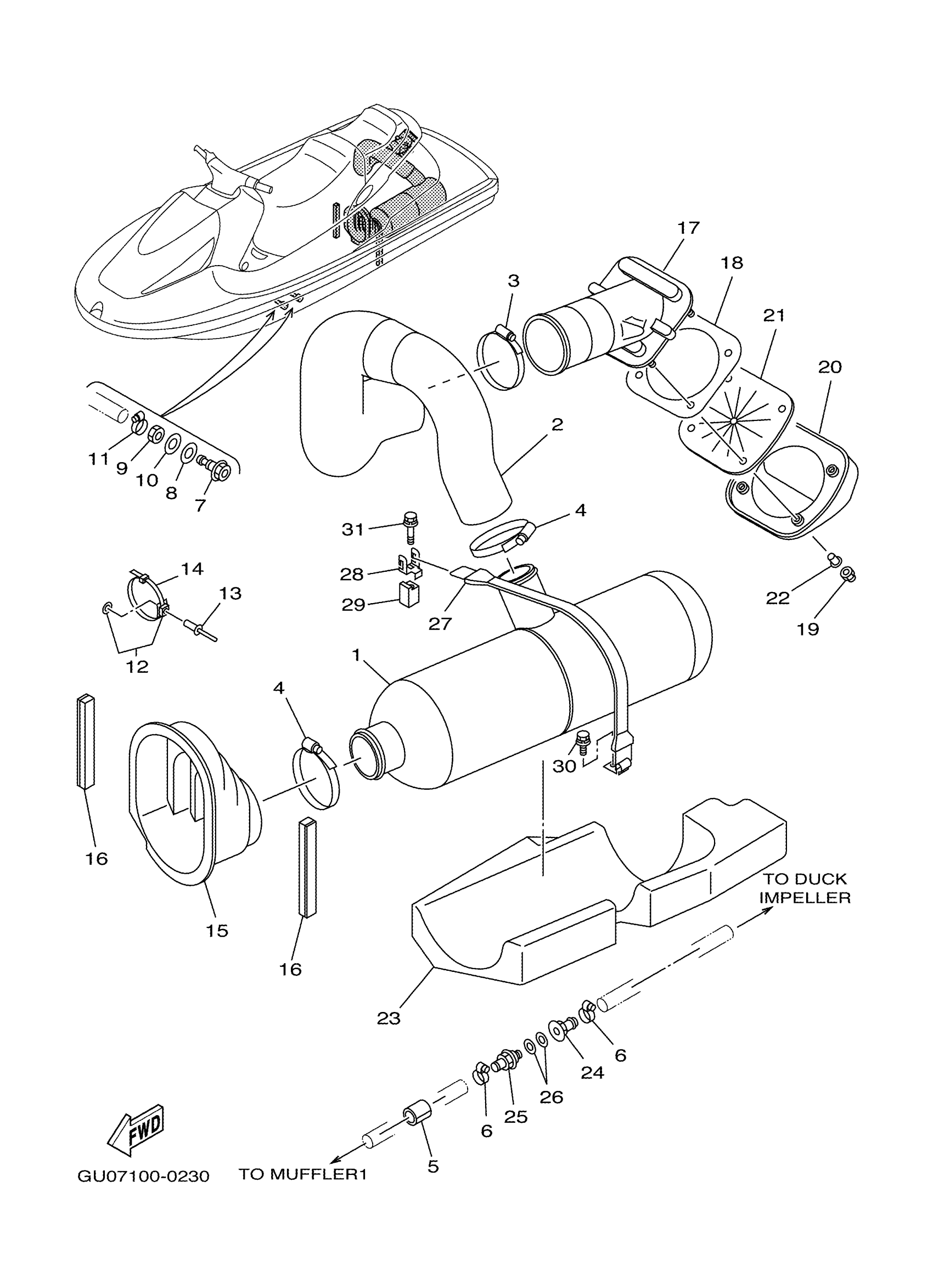

Yamaha GP800Y (GP800) GU07 2000 EXHAUST 2 Diagram
#
1
WATER LOCK COMP.
GU0-67550-00-00
Unavailable
2
HOSE, EXHAUST
GU0-U7555-02-00
Unavailable
3
BAND, HOSE 95
90601-195UD-00
Unavailable
4
BAND, HOSE 75
90601-175UR-00
Unavailable
5
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
6
BAND, HOSE 18
90601-118UF-00
Unavailable
7
PILOT, WATER
GU0-6753B-00-00
Unavailable
8
GASKET(GJ1)
90430-16910-00
Unavailable
9
NUT
GU0-61652-00-00
Unavailable
10
958-58204-00 WASHER,PLAIN
92990-16200-00
$8.49
11
BAND, HOSE 18
90601-118UF-00
Unavailable
12
CLAMP COMP (EU0)
90600-91736-00
$8.49
13
RIVET, BLIND
90267-489U7-00
Unavailable
14
CLAMP
90464-32801-00
Unavailable
15
SEAL, BULKHEAD 1
GP8-64536-00-00
Unavailable
16
SEAL, BULKHEAD 2
GP7-U4537-00-00
Unavailable
17
EXHAUST, THRU-HULL COMP.
GP7-U7560-00-00
Unavailable
18
PACKING
GP8-U7525-00-00
Unavailable
19
NUT
90179-08978-00
Unavailable
20
COVER, EXHAUST
GP7-6751F-00-00
Unavailable
21
VALVE, EXHAUST
GP8-6751G-00-00
Unavailable
22
COLLAR
90387-08802-00
Unavailable
23
BASE FLOATATION 1
GP7-U8921-00-00
Unavailable
24
THROUGH-HULL CONNECTION 3/8"
90604-80793-00
Unavailable
25
THROGUH-HULL CONNECTION 3/8
90604-80794-00
Unavailable
26
GASKET(GJ1)
90430-16910-00
Unavailable
27
C HOOK COMP.
GJ3-U7570-00-00
Unavailable
28
HOOK A
EW2-U5772-00-00
Unavailable
29
SPACER 2
GP7-U755C-00-00
Unavailable
30
BOLT, WITH WASHER
90119-069UJ-00
Unavailable
31
BOLT, WITH WASHER
90119-06808-00
Unavailable
