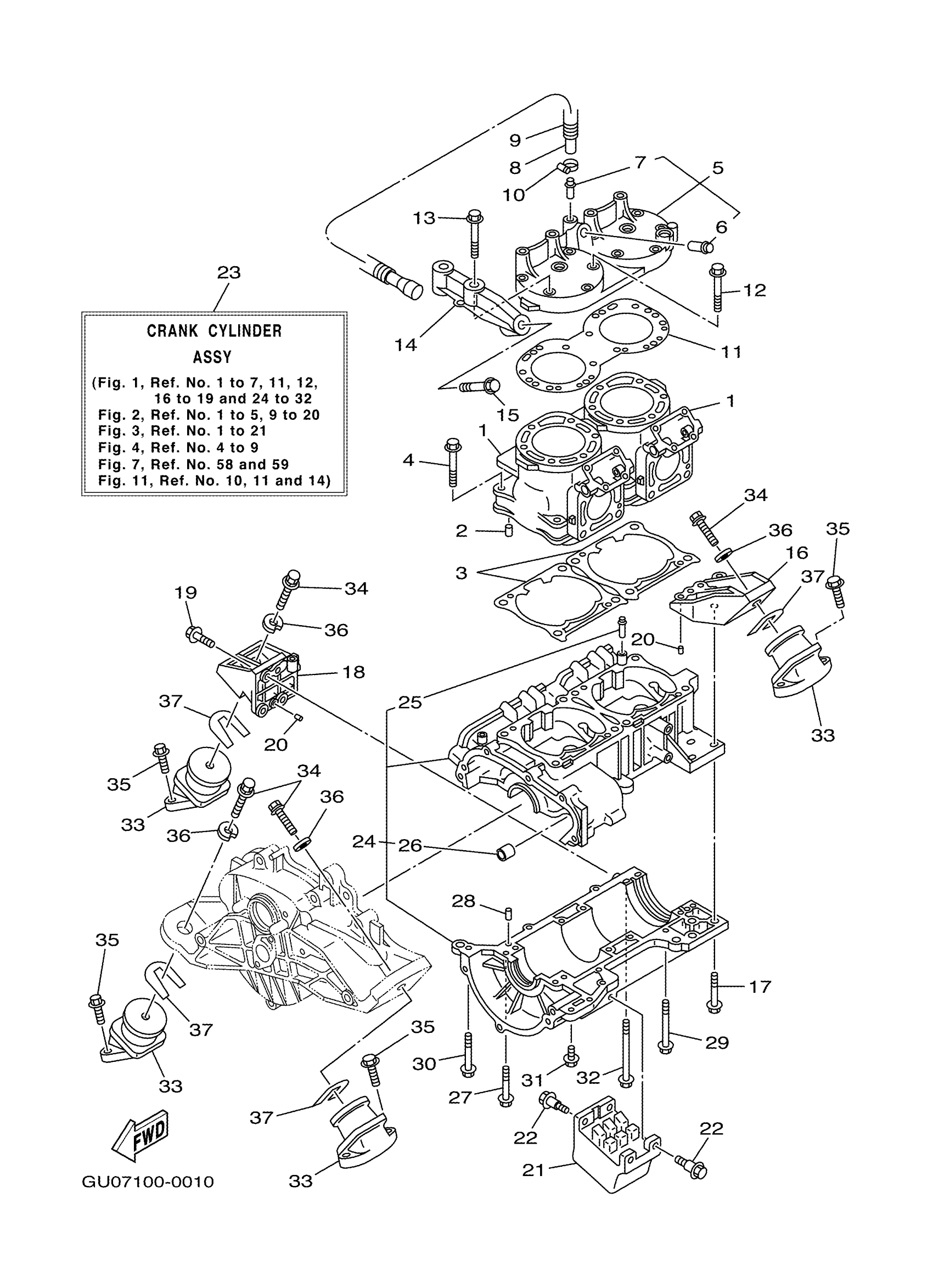

Yamaha GP800Y (GP800) GU07 2000 CYLINDER CRANKCASE 1 Diagram

#

Description
Price

1

CYLINDER & PISTON SET

66E-W1130-00-94

$976.46

2

PIN, DOWEL (614)

93606-12019-00

$3.50

3

GASKET, CYLINDER

66E-11351-02-00

$18.80

4

BOLT (6F5)

90119-10M07-00

$4.21

5

HEAD, CYLINDER 1

66E-11111-00-8S

Unavailable

6

. NIPPLE

66E-51129-00-00

Unavailable

7

. NIPPLE

6K8-51129-00-00

$9.87

8

HOSE 5

66E-12588-00-00

Unavailable

9

TUBE (L1040)

90446-24M94-00

Unavailable

10

HOSE CLAMP ASSY(62T)

90450-14M05-00

$14.92

11

. GASKET, CYLINDER HEAD 1

66E-11181-00-00

$52.93

12

BOLT, WITH WASHER

90119-08MA1-00

$5.00

13

BOLT, WITH WASHER

90119-08MA2-00

Unavailable

14

STAY, MUFFLER 2

66E-14781-10-00

Unavailable

15

BOLT, WITH WASHER

90119-10M00-00

$8.56

16

BRACKET, REAR UPPER 1

66E-21425-10-8S

$155.87

17

BOLT, WITH WASHER

97513-08545-00

$2.65

18

BRACKET, REAR UPPER 2

66E-21426-10-8S

$101.46

19

BOLT, WITH WASHER (62X)

97513-08530-00

Unavailable

20

PIN, DOWEL (614)

93606-12019-00

$3.50

21

STOPPER, UPPER MOUNT

66E-44532-00-00

Unavailable

22

BOLT

90109-06M92-00

Unavailable

23

CRANK CYLINDER ASSY

66E-W0090-13-8S

Unavailable

24

CRANKCASE ASSY

66E-15100-10-00

$808.81

25

NIPPLE

62T-14251-10-00

$4.27

26

. BUSH, SOLID

90380-12M29-00

Unavailable

27

BOLT, WITH WASHER

90119-08M55-00

$3.03

28

PIN, DOWEL (614)

93606-12019-00

$3.50

29

BOLT, WITH WASHER

90119-06M78-00

Unavailable

30

BOLT (6F5)

90119-08M09-00

Unavailable

31

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

32

BOLT, WITH WASHER

90119-08M56-00

Unavailable

33

MOUNT RUBBER

6M6-44517-A2-94

$78.22

34

BOLT, WITH WASHER

90119-08856-00

$5.39

35

BOLT, WITH WASHER

90119-089UT-00

$3.29

36

WASHER, PLATE

90201-099U3-00

$2.30

37

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

37

SHIM (T=0.3)

EU0-67354-B0-00

$5.12

37

SHIM (T=0.5)

EU0-67354-C0-00

$4.27

37

SHIM (T=1.0)

EU0-67354-D0-00

$3.84

37

SHIM (T=2.0)

EU0-67354-E0-00

$3.84

37

SHIM (T=3.0)

EU0-U7354-00-30

Unavailable
