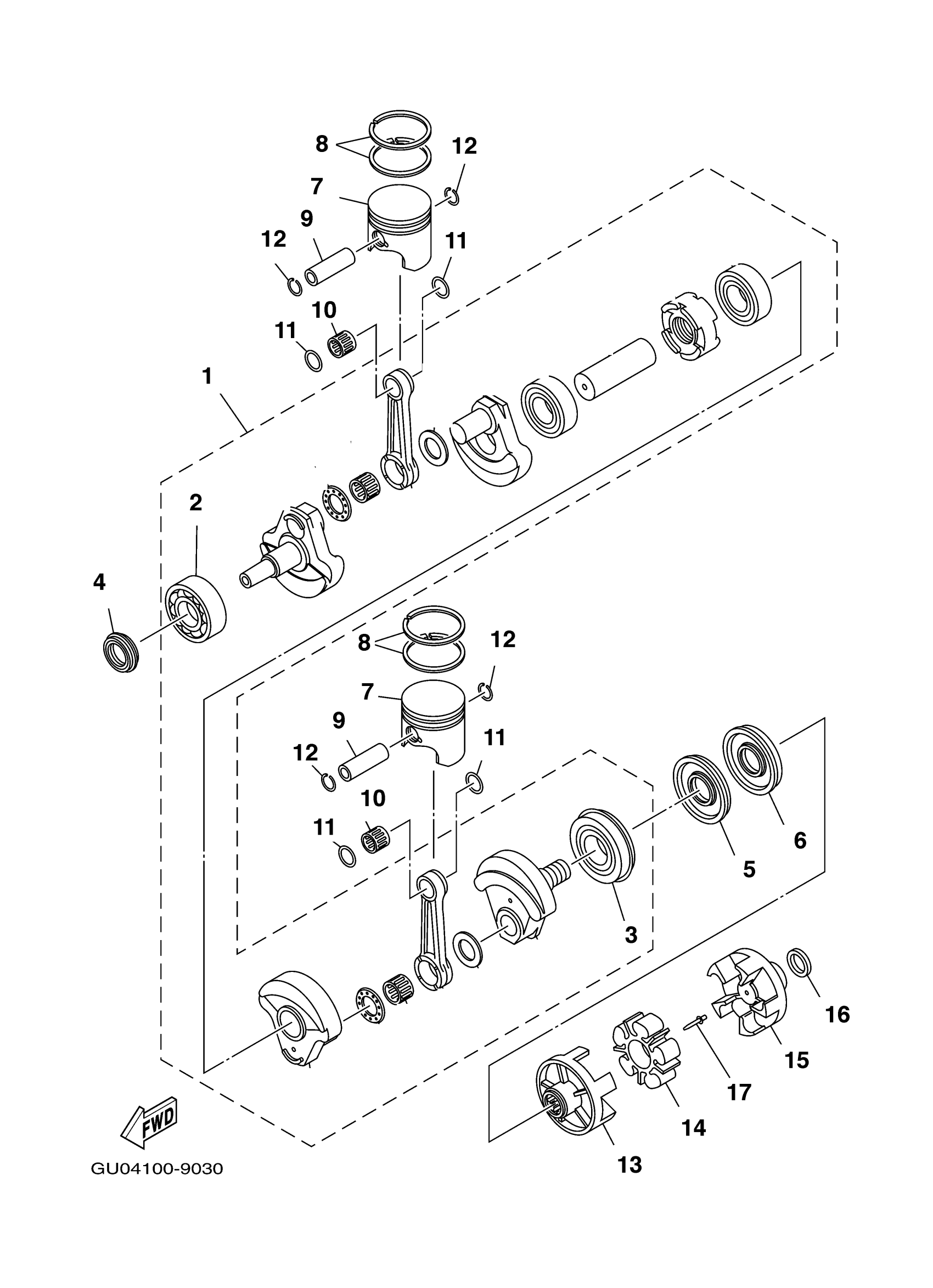

Yamaha GP800Y (GP800) GU07 2000 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSY

66E-11400-00-00

Unavailable

2

. BEARING

93305-307U0-00

Unavailable

3

. BEARING

93306-308U1-00

Unavailable

4

. OIL SEAL

93103-35M03-00

Unavailable

5

OIL SEAL

93101-34001-00

Unavailable

6

OIL SEAL

93101-34002-00

Unavailable

7

PISTON (STD, RED)

66E-11631-01-A0

Unavailable

7

PISTON (STD, ORANGE)

66E-11631-01-B0

Unavailable

7

PISTON (STD, GREEN)

66E-11631-01-C0

Unavailable

7

PISTON (STD, PURPLE)

66E-11631-01-D0

Unavailable

8

PISTON RING SET (STD)

66E-11603-01-00

Unavailable

9

PIN, PISTON

60T-11633-00-00

Unavailable

10

BEARING

93310-422U2-00

Unavailable

11

WASHER, PLATE

90201-22M04-00

$8.49

12

CLIP, PISTON PIN

66E-11634-00-00

Unavailable

13

FLANGE, COUPLING

66E-45813-10-94

Unavailable

14

RUBBER SHAFT COUPLING

66E-4581J-00-00

Unavailable

15

FLANGE, COUPLING 1

66E-45593-10-94

Unavailable

16

WASHER, PLATE

90201-24800-00

Unavailable

17

RIVET, BLIND

90267-489UG-00

Unavailable
