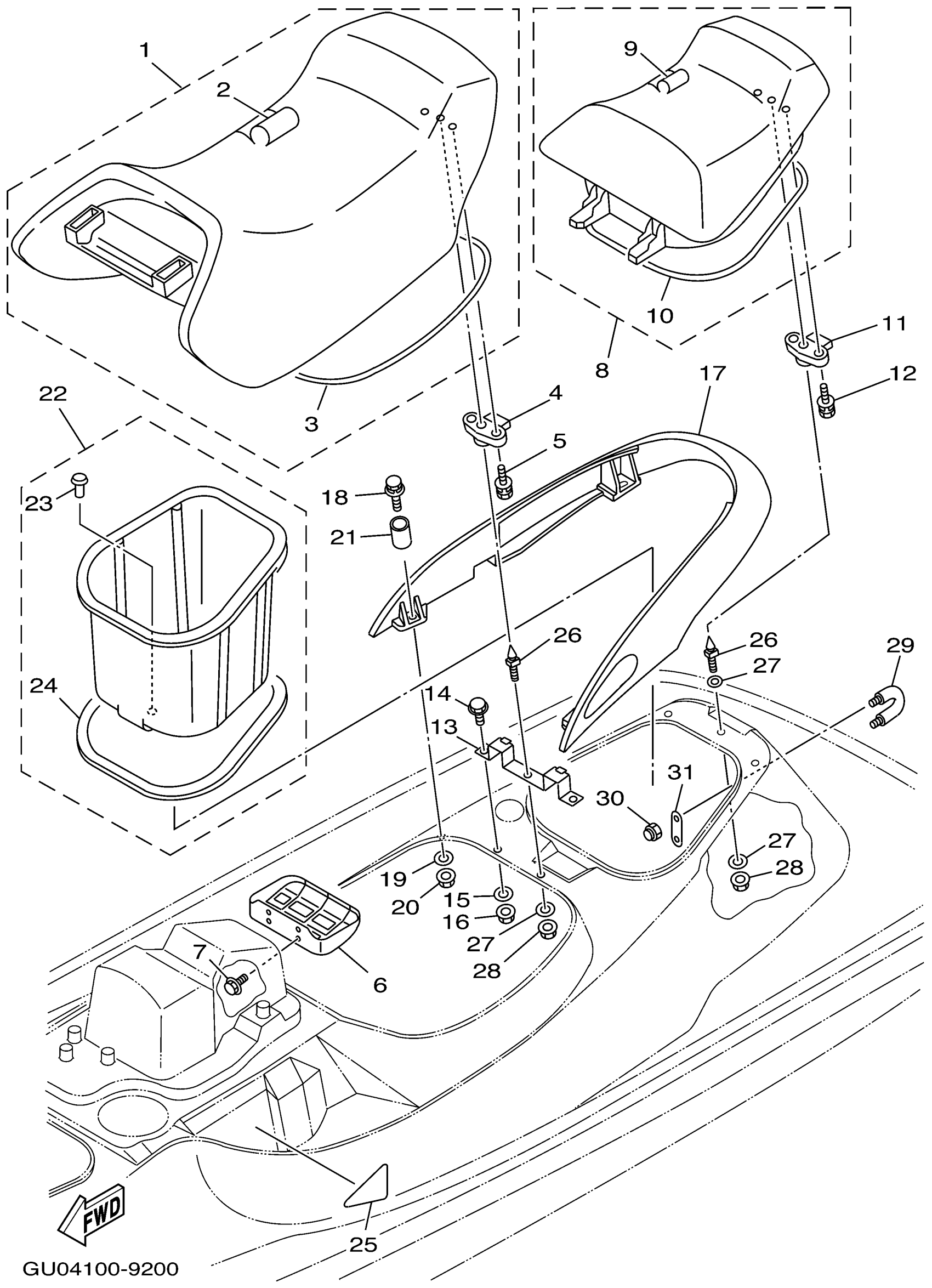

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 SEAT Diagram
#
1
DRIVER SEAT ASSEMBLY 1
GP8-U3710-20-00
Unavailable
2
. COVER, SEAT 1
GP8-U371B-20-00
Unavailable
3
. PACKING
GP7-U2664-00-00
Unavailable
4
SEAT LOCK ASSY
GJ3-63850-03-00
Unavailable
5
BOLT, WITH WASHER
90119-06808-00
Unavailable
6
STAY, SEAT 1
GP7-U378C-00-00
Unavailable
7
BOLT, WITH WASHER
90119-08800-00
Unavailable
8
DAMPER, SEAT ASSEMBLY
GP8-U3760-11-00
Unavailable
9
. COVER, SEAT
GP8-U372B-10-00
Unavailable
10
. PACKING 3
GP7-U266B-00-00
Unavailable
11
SEAT LOCK ASSY
GJ3-63850-03-00
Unavailable
12
BOLT, WITH WASHER
90119-06808-00
Unavailable
13
STAY, SEAT 2
GP7-6378D-00-00
Unavailable
14
BOLT
97080-10025-00
Unavailable
15
958-69527-00 WASHER, PLAIN
92990-10200-00
$3.72
16
NUT, NYLON (FN8)
95720-10300-00
Unavailable
17
GRIP, HAND
GP7-6271B-10-00
Unavailable
18
BOLT, WITH WASHER(GA7)
90119-08932-00
Unavailable
19
WASHER, PLAIN
92990-08200-00
Unavailable
20
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
21
COLLAR
90387-08924-00
Unavailable
22
UNDER LOCK ASSY
GP7-U474A-00-00
Unavailable
23
. PLUG, BLIND
90605-502U1-00
Unavailable
24
. PACKING 5
GP7-U266D-03-00
Unavailable
25
PAD, HATCH 2
GP7-U517N-01-00
Unavailable
26
PIN
GH1-U3774-00-00
Unavailable
27
958-69527-00 WASHER, PLAIN
92990-10200-00
$3.72
28
NUT, NYLON (FN8)
95720-10300-00
Unavailable
29
STERN EYE
GP7-61628-10-00
Unavailable
30
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
31
PLATE A
GP7-U4953-10-00
Unavailable
