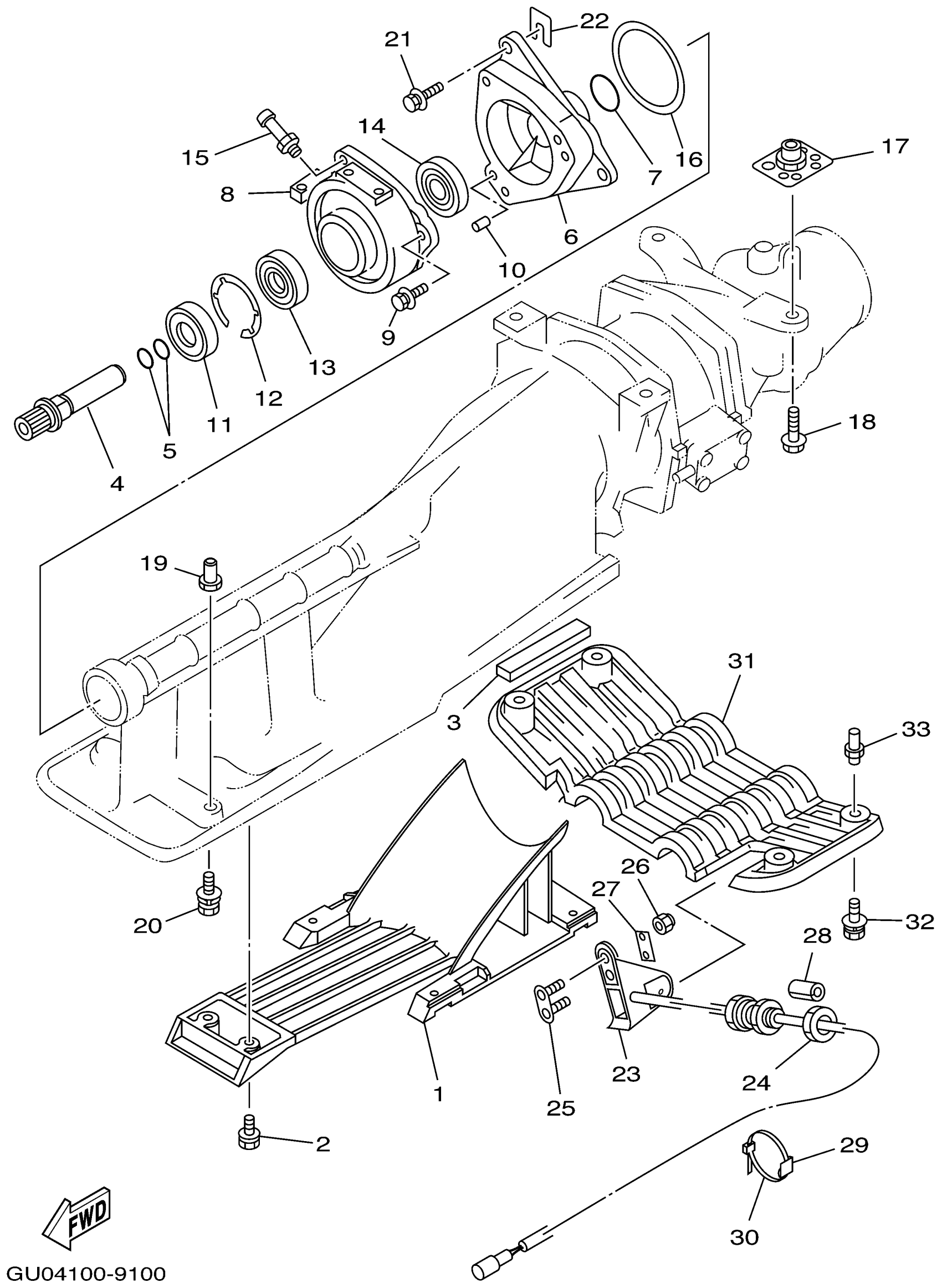

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 JET UNIT 2 Diagram
#
1
SCREEN, INTAKE
63N-51333-02-94
Unavailable
2
BOLT, WITH WASHER
90119-069UC-00
Unavailable
3
. FELT, PACKING
63N-51368-00-00
Unavailable
4
SHAFT, COUPLOR
66E-51323-00-00
Unavailable
5
O-RING(6R7)
93210-17MA4-00
$7.49
6
HOUSING, BEARING
65A-G5331-00-00
Unavailable
7
O-RING
93210-35M72-00
$14.99
8
HOUSING, BEARING
65U-45332-02-94
Unavailable
9
BOLT, WITH WASHER
90119-08841-00
Unavailable
10
PIN, DOWEL (614)
93606-12019-00
$4.24
11
OIL SEAL(62T)
93101-25M55-00
$30.99
12
CIRCLIP
93430-47M04-00
Unavailable
13
BEARING(62G)
93306-205U6-00
Unavailable
14
OIL SEAL
93101-24001-00
$31.99
15
NIPPLE, HOSE
61L-45378-00-00
Unavailable
16
SEAL
6K8-45127-00-00
Unavailable
17
NUT
90179-10925-00
Unavailable
18
BOLT, WITH WASHER
90119-109U8-00
Unavailable
19
NUT(FJ0)
90179-06947-00
Unavailable
20
BOLT, WITH WASHER
90119-06896-00
Unavailable
21
BOLT, WITH WASHER
90119-08907-00
Unavailable
22
SHIM (0.5)
GD0-U7249-00-05
Unavailable
22
SHIM (0.5)
GD0-U7249-00-05
Unavailable
23
SPEED SENSOR
GP7-U8K31-02-00
Unavailable
24
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
25
BRACKET, SPEED SENSOR
GP7-U8K33-00-00
Unavailable
26
NUT, SELF-LOCKING
95720-06300-00
Unavailable
27
PLATE, SPEED SENSOR
GP7-U8K35-00-00
Unavailable
28
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
29
BASE, CLAMP
90600-900U6-00
Unavailable
30
CLAMP(JN6)
90464-40825-00
Unavailable
31
PLATE 2
GU0-U273B-00-00
Unavailable
32
BOLT, WITH WASHER
90119-08829-00
Unavailable
33
NUT
90179-08815-00
Unavailable
