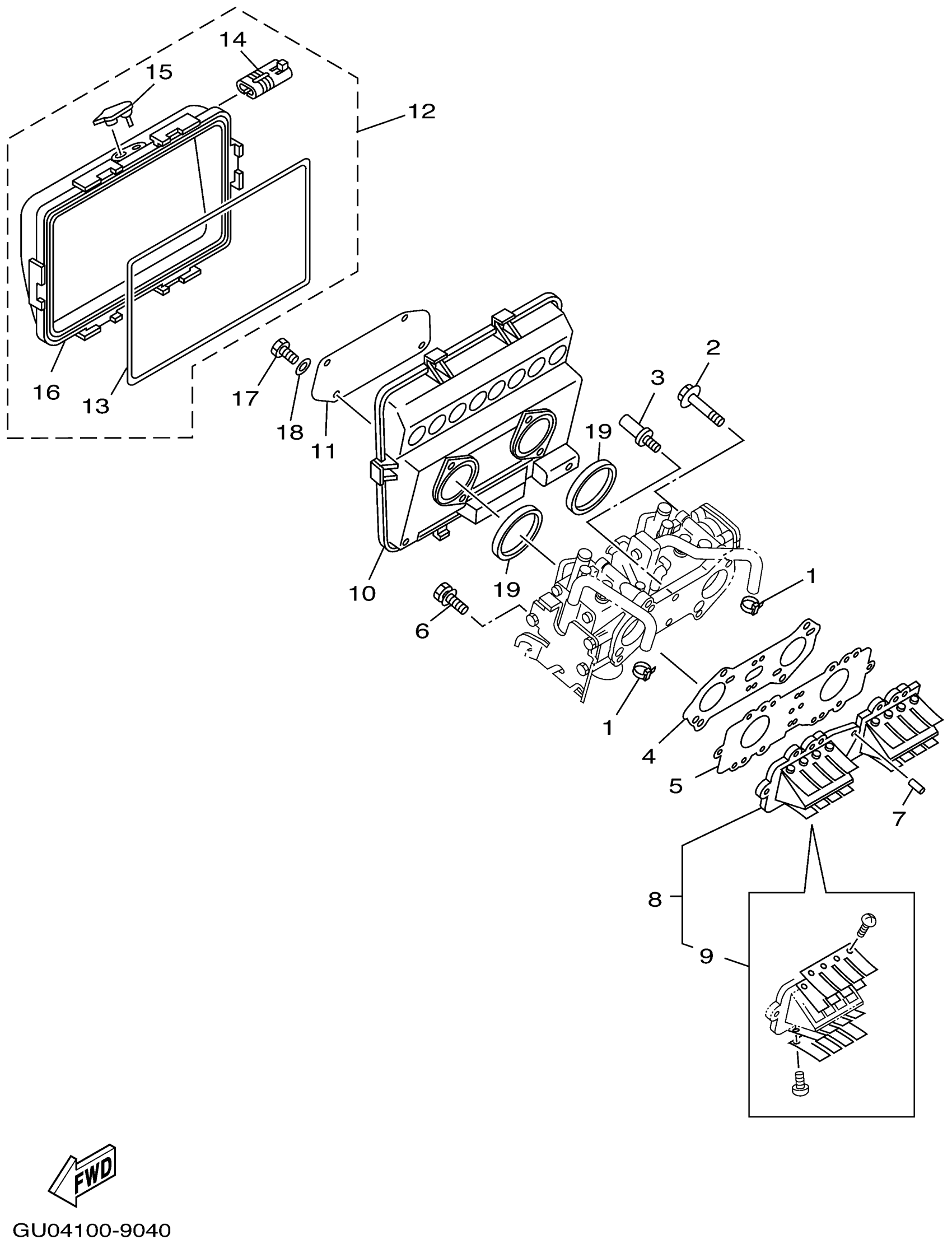

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 INTAKE Diagram

#

Description
Price

1

CLAMP

90465-10098-00

Unavailable

2

BOLT, WASHER BASED

90105-08M86-00

$15.99

3

BOLT

90109-06M00-00

Unavailable

4

. GASKET, MANIFOLD

66E-13556-00-00

Unavailable

5

PLATE,REED VALVE

66E-13624-10-94

Unavailable

6

BOLT, WITH WASHER(61B)

97513-06525-00

$1.49

7

. PIN, DOWEL

93606-19M23-00

Unavailable

8

REED VALVE ASSY

66E-13610-00-00

Unavailable

9

. REED SET

66E-W0004-00-00

Unavailable

10

COVER, CARBURETOR 2

66E-14284-00-00

Unavailable

11

ELEMENT, AIR CLEANER

66E-14451-00-00

Unavailable

12

COVER SUB ASSEMBLY

66E-14480-00-00

Unavailable

13

. SEAL

66E-14457-00-00

Unavailable

14

HOLDER

66E-13898-01-00

Unavailable

15

GROMMET

6K8-14435-00-00

Unavailable

16

. COVER, CARBURETOR 1

66E-14283-00-00

Unavailable

17

BOLT, HEXAGON

97013-06045-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

. O-RING

66E-13473-00-00

Unavailable
