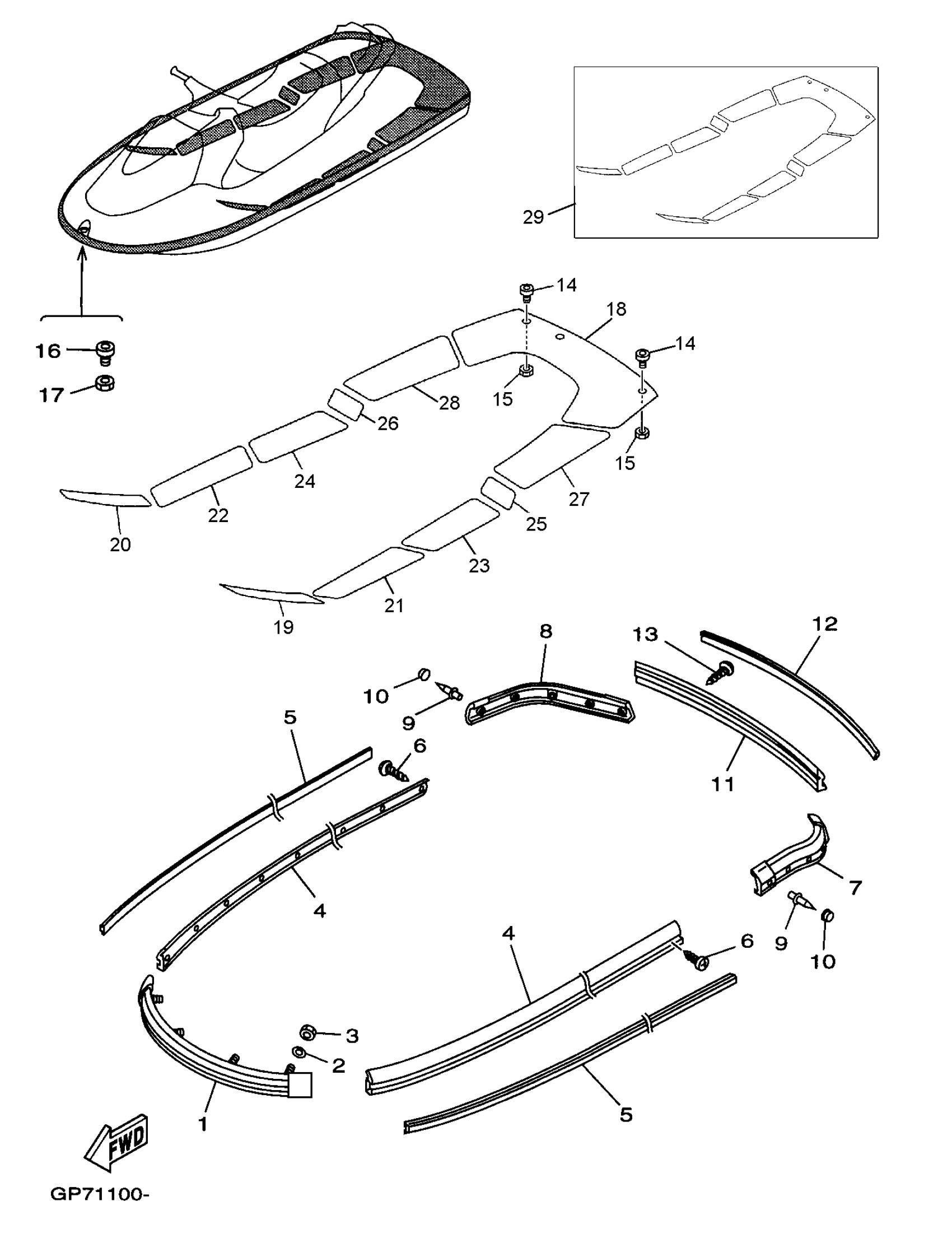

Yamaha GP800X (WAVE RUNNER GP800) GU04 1999 GUNWALE MAT Diagram
#
1
BOW GUNWALE COMP.
GP7-U2501-20-00
Unavailable
2
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
3
NUT, SELF-LOCKING
95720-06300-00
Unavailable
4
GUNWALE, SIDE
GP7-U2512-10-00
Unavailable
5
INNER, GUNWALE
GP7-U2519-40-00
Unavailable
6
SCREW,TAPPING
90169-059U1-00
Unavailable
7
GUNWALE, STERN 1
GP7-U251D-20-00
Unavailable
8
GUNWALE, STERN 2
GP7-U251E-20-00
Unavailable
9
RIVET, BLIND
90267-489US-00
Unavailable
10
PLUG, MUSHROOM
GJ3-U352E-50-00
Unavailable
11
COVER, GUNWALE 1
GP7-U252C-10-00
Unavailable
12
COVER, GUNWALE 2
GP7-U252D-40-00
Unavailable
13
RIVET, BLIND
90267-489US-00
Unavailable
14
ROPE HOLE
FN8-61651-01-00
Unavailable
15
NUT
EU0-61652-00-00
Unavailable
16
ROPE HOLE
FN8-61651-01-00
Unavailable
17
NUT
EU0-61652-00-00
Unavailable
18
MAT, UPPER (BLACK)
GP7-U3581-11-00
Unavailable
19
MAT, STEP 1(BLACK)
GP7-U351H-10-00
Unavailable
20
MAT, STEP 2 (BLACK)
GP7-U351J-10-00
Unavailable
21
MAT, STEP 3(BLACK)
GP7-U351K-11-00
Unavailable
22
MAT, STEP 4(BLACK)
GP7-U351M-11-00
Unavailable
23
MAT, STEP 5(BLACK)
GP7-U351N-11-00
Unavailable
24
MAT, STEP 6(BLACK)
GP7-U351P-11-00
Unavailable
25
MAT,STEP 7(BLACK)
GP7-U351R-10-00
Unavailable
26
MAT,STEP 8(BLACK)
GP7-U351S-10-00
Unavailable
27
MAT, STEP 9(BLACK)
GP7-U351T-11-00
Unavailable
28
MAT, STEP 10(BLACK)
GP7-U351U-11-00
Unavailable
29
MAT KIT BLACK
GP7-MATKT-00-BK
Unavailable
