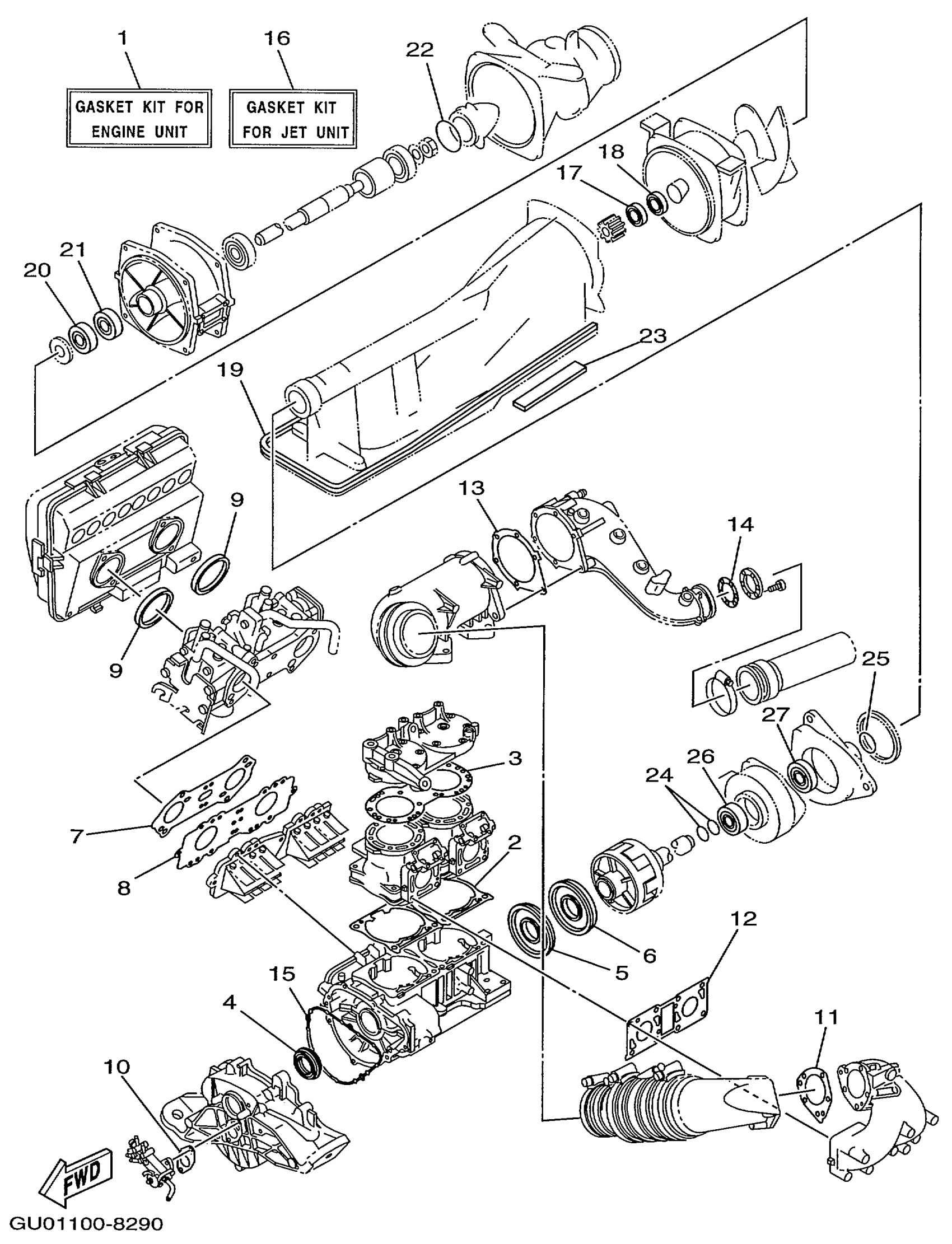

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 REPAIR KIT 1 Diagram

#

Description

Price

1

GASKET KIT FOR ENGINE UNIT

66E-W0001-00-00

Unavailable

2

GASKET, CYLINDER

66E-11351-02-00

Unavailable

3

. GASKET, CYLINDER HEAD 1

66E-11181-00-00

Unavailable

4

. OIL SEAL

93103-35M03-00

Unavailable

5

OIL SEAL

93101-34001-00

Unavailable

6

OIL SEAL

93101-34002-00

Unavailable

7

. GASKET, MANIFOLD

66E-13556-00-00

Unavailable

8

PLATE,REED VALVE

66E-13624-10-94

Unavailable

9

. O-RING

66E-13473-00-00

Unavailable

10

GASKET, PUMP CASE

63M-13116-00-00

Unavailable

11

. GASKET, EXHAUST PIPE

66E-14613-00-00

Unavailable

12

. GASKET, MUFFLER DAMPER 2

66E-14749-00-00

Unavailable

13

GASKET, EXHAUST OUTER COVER

66E-41124-10-00

Unavailable

14

. GASKET, EXHAUST PIPE

66E-14623-00-00

Unavailable

15

. O-RING

66E-81168-00-00

Unavailable

16

GASKET KIT FOR JET UNIT

66E-W0001-20-00

Unavailable

17

OIL SEAL

93102-17M49-00

Unavailable

18

OIL SEAL

93102-17M50-00

Unavailable

19

. FELT, PACKING

6R8-51367-01-00

Unavailable

20

OIL SEAL(6R7)

93102-25M34-00

Unavailable

21

OIL SEAL(6R7)

93101-25M50-00

Unavailable

22

. O-RING

93210-46M16-00

Unavailable

23

. FELT, PACKING

63N-51368-00-00

Unavailable

24

O-RING(6R7)

93210-17MA4-00

Unavailable

25

O-RING

93210-35M72-00

Unavailable

26

OIL SEAL(62T)

93101-25M55-00

Unavailable

27

OIL SEAL

93101-24001-00

Unavailable
