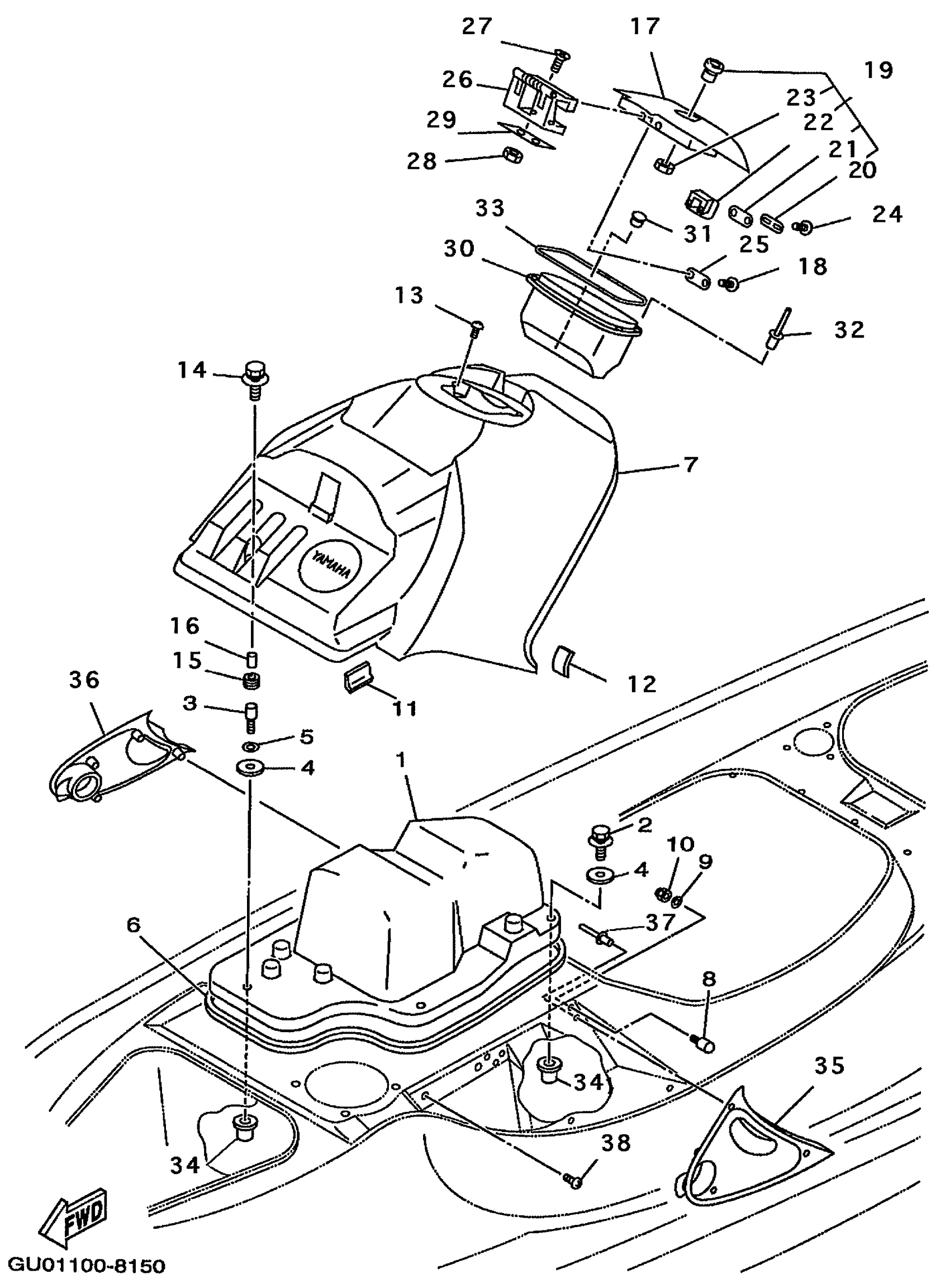

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 ENGINE HATCH 1 Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GP7-U516A-00-00

Unavailable

2

BOLT, WITH WASHER

90119-08907-00

Unavailable

3

BOLT

90109-08913-00

Unavailable

4

WASHER, PLATE

90201-099U1-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

PACKING 7

GP7-U266F-00-00

Unavailable

7

COVER, ENGINE HATCH

GU0-U516N-00-P0

Unavailable

8

DAMPER 3

GP7-6515G-01-00

Unavailable

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

NUT, SELF-LOCKING

95720-06300-00

Unavailable

11

RUBBER, WATER PROOF

GP7-U5114-00-00

Unavailable

12

PAD, HATCH 1

GP7-U517M-01-00

Unavailable

13

SCREW

90149-05984-00

Unavailable

14

BOLT,WITH WASHER

90119-06940-00

Unavailable

15

GROMMET

90480-13907-00

Unavailable

16

COLLAR

90387-06920-00

Unavailable

17

LID HATCH (BLUE)

GP7-U517H-29-P0

Unavailable

18

SCREW, PAN HEAD

98580-05020-00

Unavailable

19

LOCK ASSY

GP7-6287A-00-00

Unavailable

20

. PLATE, HOOK

GP7-62848-00-00

Unavailable

21

. PLATE, HATCH LOCK

EW2-62846-00-00

Unavailable

22

. HOOK, LOCK

GP7-6284J-00-00

Unavailable

23

. NUT, SPECIAL

GP7-62873-00-00

Unavailable

24

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

25

PLATE, HOOD

GP7-U5148-00-00

Unavailable

26

HINGE, HATCH

GP7-6517G-01-00

Unavailable

27

SCREW, FLAT HEAD

98780-05020-00

Unavailable

28

NUT, FLANGE

95720-05300-00

Unavailable

29

PLATE, HATCH 2

GP7-U517S-00-00

Unavailable

30

BOX GLOVE

GP7-U516P-00-00

Unavailable

31

. PLUG

90605-502U2-00

Unavailable

32

RIVET, BLIND

90267-489UK-00

Unavailable

33

PACKING CASE

GP7-U519D-02-00

Unavailable

34

NUT

90179-08967-00

Unavailable

35

COVER, SIDE 1

GP7-U377B-00-00

Unavailable

36

COVER, SIDE 2

GP7-U377C-00-00

Unavailable

37

RIVET, BLIND

90267-48809-00

Unavailable

38

PLUG

90338-09828-00

Unavailable
