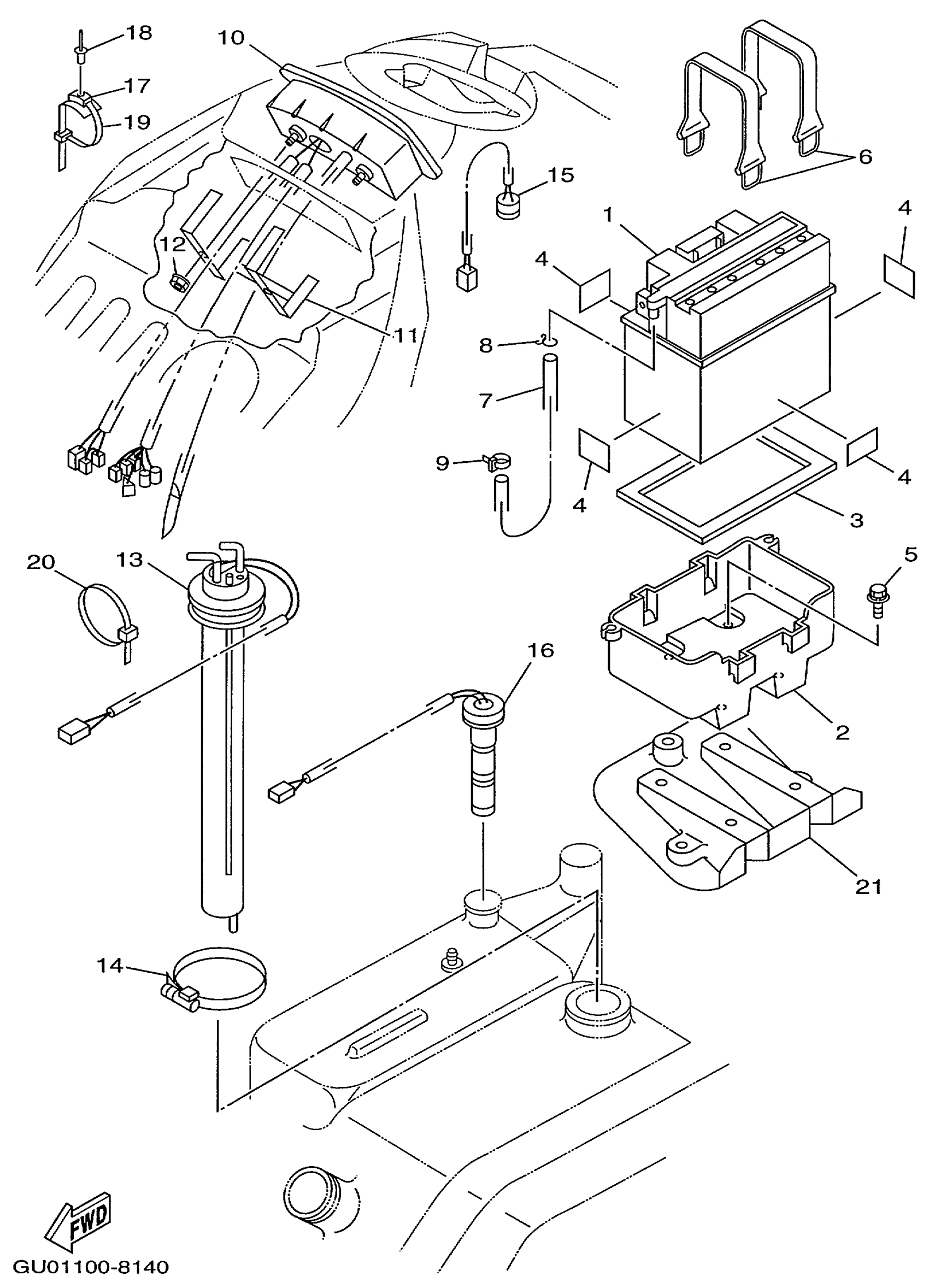

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 ELECTRICAL 2 Diagram

#

Description

Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

2

CASE, BATTERY

GP7-U8211-00-00

Unavailable

3

PAD, BATTERY

F1S-U8221-00-00

Unavailable

4

PAD, BATTERY

EU0-U8221-31-00

$2.99

5

BOLT, WITH WASHER

90119-069US-00

Unavailable

6

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

7

HOSE AIR VENT

GP7-U785J-00-00

Unavailable

8

CLIP

90467-089U1-00

Unavailable

9

CLAMP

90465-10098-00

Unavailable

10

METER ASSY (MPH)

GP7-6820A-06-00

Unavailable

11

BRACKET, METER

GP7-68238-10-00

Unavailable

12

NUT, FLANGE

95720-05300-00

Unavailable

13

SENDER, FUEL

F0V-U824B-04-00

Unavailable

14

BAND, HOSE 62

90601-162U5-00

Unavailable

15

BUZZER

GP7-U8341-00-00

Unavailable

16

SENDER, OIL

F0D-U824C-21-00

Unavailable

17

CLAMP COMP (EU0)

90600-91736-00

Unavailable

18

RIVET, BLIND

90267-48802-00

Unavailable

19

BAND (EU0)

90601-20009-00

Unavailable

20

BAND (EU0)

90601-20009-00

Unavailable

21

BATTERY CASE BASE ASSEMBLY COMP

GJ3-U821C-00-00

Unavailable
