- GP800W (WAVE RUNNER GP800W) GU01 1998
CYLINDER CRANKCASE 1

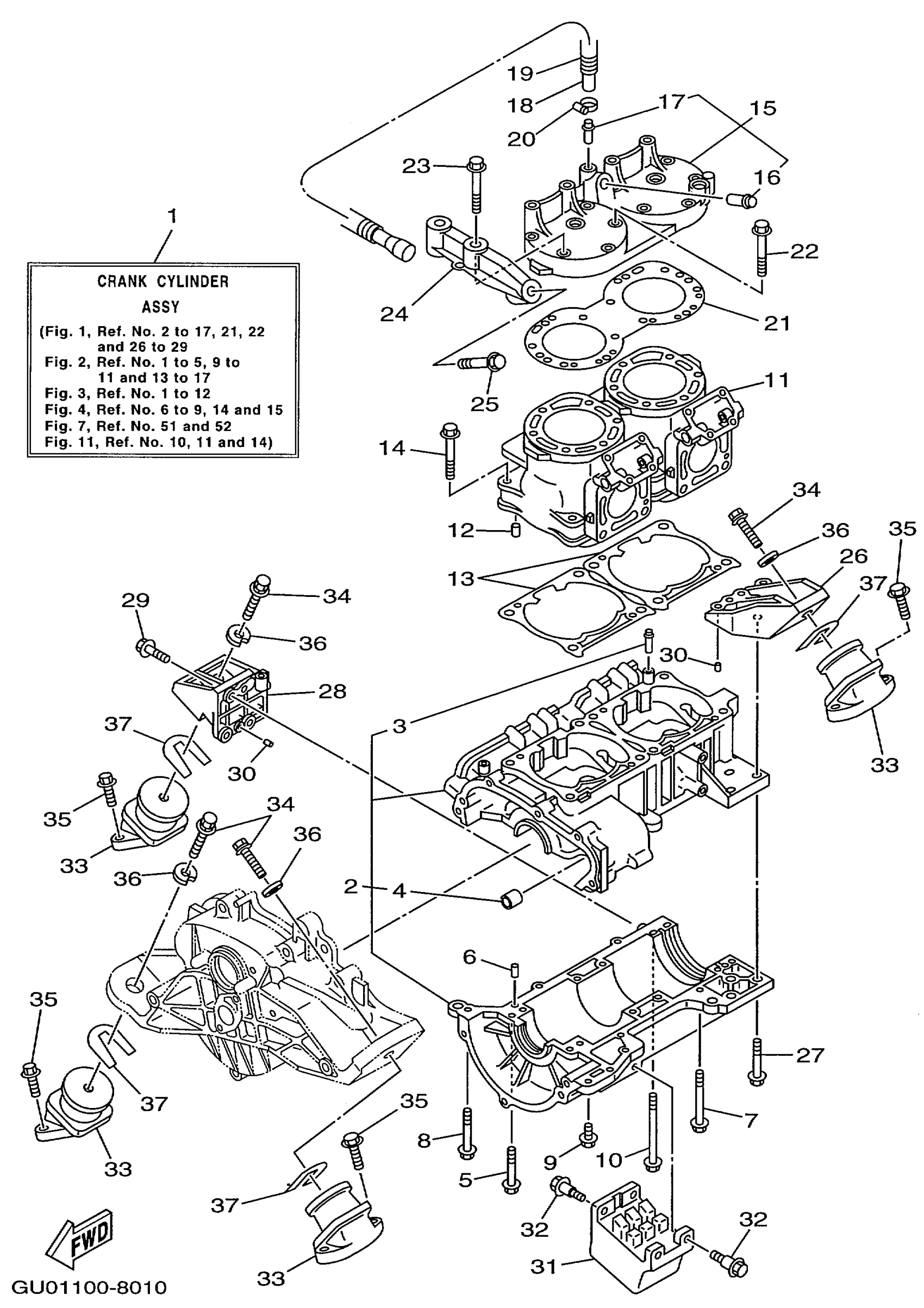

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 CYLINDER CRANKCASE 1 Diagram
#
1
CRANK CYLINDER ASSY
66E-W0090-13-8S
Unavailable
2
CRANKCASE ASSY
66E-15100-10-00
Unavailable
3
NIPPLE
62T-14251-10-00
Unavailable
4
. BUSH, SOLID
90380-12M29-00
Unavailable
5
BOLT, WITH WASHER
90119-08M55-00
Unavailable
6
PIN, DOWEL (614)
93606-12019-00
$4.24
7
BOLT, WITH WASHER
90119-06M78-00
$10.49
8
BOLT (6F5)
90119-08M09-00
$4.19
9
BOLT, WITH WASHER (682)
90119-06M13-00
Unavailable
10
BOLT, WITH WASHER
90119-08M56-00
Unavailable
11
CYLINDER & PISTON SET
66E-W1130-00-94
Unavailable
12
PIN, DOWEL (614)
93606-12019-00
$4.24
13
GASKET, CYLINDER
66E-11351-02-00
Unavailable
14
BOLT (6F5)
90119-10M07-00
$4.82
15
HEAD, CYLINDER 1
66E-11111-00-8S
Unavailable
16
. NIPPLE
66E-51129-00-00
Unavailable
17
. NIPPLE
6K8-51129-00-00
Unavailable
18
HOSE 5
66E-12588-00-00
Unavailable
19
TUBE (L1040)
90446-24M94-00
Unavailable
20
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
21
. GASKET, CYLINDER HEAD 1
66E-11181-00-00
Unavailable
22
BOLT, WITH WASHER
90119-08M66-00
Unavailable
23
BOLT, WITH WASHER
90119-08M55-00
Unavailable
24
STAY, MUFFLER 2
66E-14781-00-94
Unavailable
25
BOLT, WITH WASHER
90119-10M00-00
Unavailable
26
BRACKET, REAR UPPER 1
66E-21425-01-8P
Unavailable
27
BOLT, WITH WASHER
97513-08545-00
Unavailable
28
BRACKET, REAR UPPER 2
66E-21426-01-8P
Unavailable
29
BOLT, WITH WASHER (62X)
97513-08530-00
Unavailable
30
PIN, DOWEL (614)
93606-12019-00
$4.24
31
STOPPER, UPPER MOUNT
66E-44532-00-00
Unavailable
32
BOLT
90109-06M92-00
Unavailable
33
MOUNT RUBBER
6M6-44517-A2-94
Unavailable
34
BOLT, WITH WASHER
90119-08856-00
Unavailable
35
BOLT, WITH WASHER
90119-08826-00
Unavailable
36
WASHER, PLATE
90201-099U3-00
Unavailable
37
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
37
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
37
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
37
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
37
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
