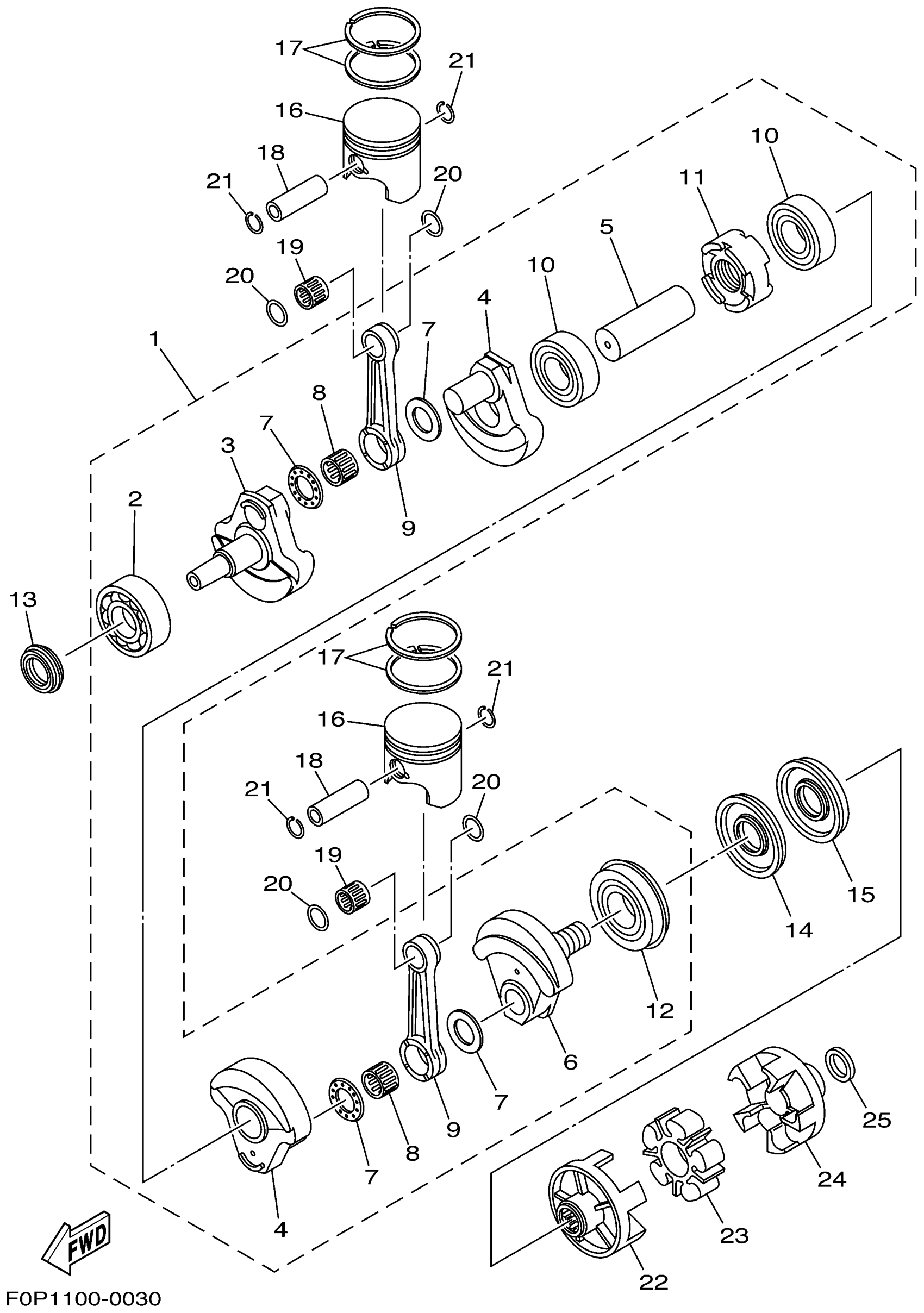

Yamaha GP800AZ (GP800R) F0W1 2001 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

66E-11400-00-00

Unavailable

2

. BEARING

93305-307U0-00

$207.34

3

. CRANK 1

66E-11412-00-00

Unavailable

4

. CRANK 2

66E-11422-00-00

$204.40

5

. CRANK 3

66E-11431-00-00

$139.69

6

. CRANK 4

66E-11442-00-00

$327.93

7

. WASHER, CRANK PIN

66E-11685-00-00

$13.96

8

. BEARING

93310-627U6-00

$61.93

9

. ROD, CONNECTING

66E-11651-00-00

$97.04

10

. BEARING

93306-208U1-00

$67.63

11

. SEAL, LABYRINTH 1

66E-11515-00-00

Unavailable

12

. BEARING

93306-308U1-00

$101.46

13

. OIL SEAL

93103-35M03-00

Unavailable

14

OIL SEAL

93101-34001-00

$18.37

15

OIL SEAL

93101-34002-00

$18.37

16

PISTON (STD, RED)

66E-11631-01-A0

$167.63

16

PISTON (STD, ORANGE)

66E-11631-01-B0

$174.99

16

PISTON (STD, GREEN)

66E-11631-01-C0

Unavailable

16

PISTON (STD, PURPLE)

66E-11631-01-D0

$167.63

17

PISTON RING SET (STD)

66E-11603-01-00

$55.87

18

PIN, PISTON

60T-11633-00-00

$29.49

19

BEARING

93310-422U2-00

$28.11

20

WASHER, PLATE

90201-22M04-00

Unavailable

21

CLIP, PISTON PIN

66E-11634-00-00

$0.92

22

FLANGE, COUPLING

66E-45813-10-94

$93.19

23

RUBBER SHAFT COUPLING

66E-4581J-00-00

$57.34

24

FLANGE, COUPLING

66E-45813-10-94

$93.19

25

WASHER, PLATE

90201-27008-00

Unavailable
