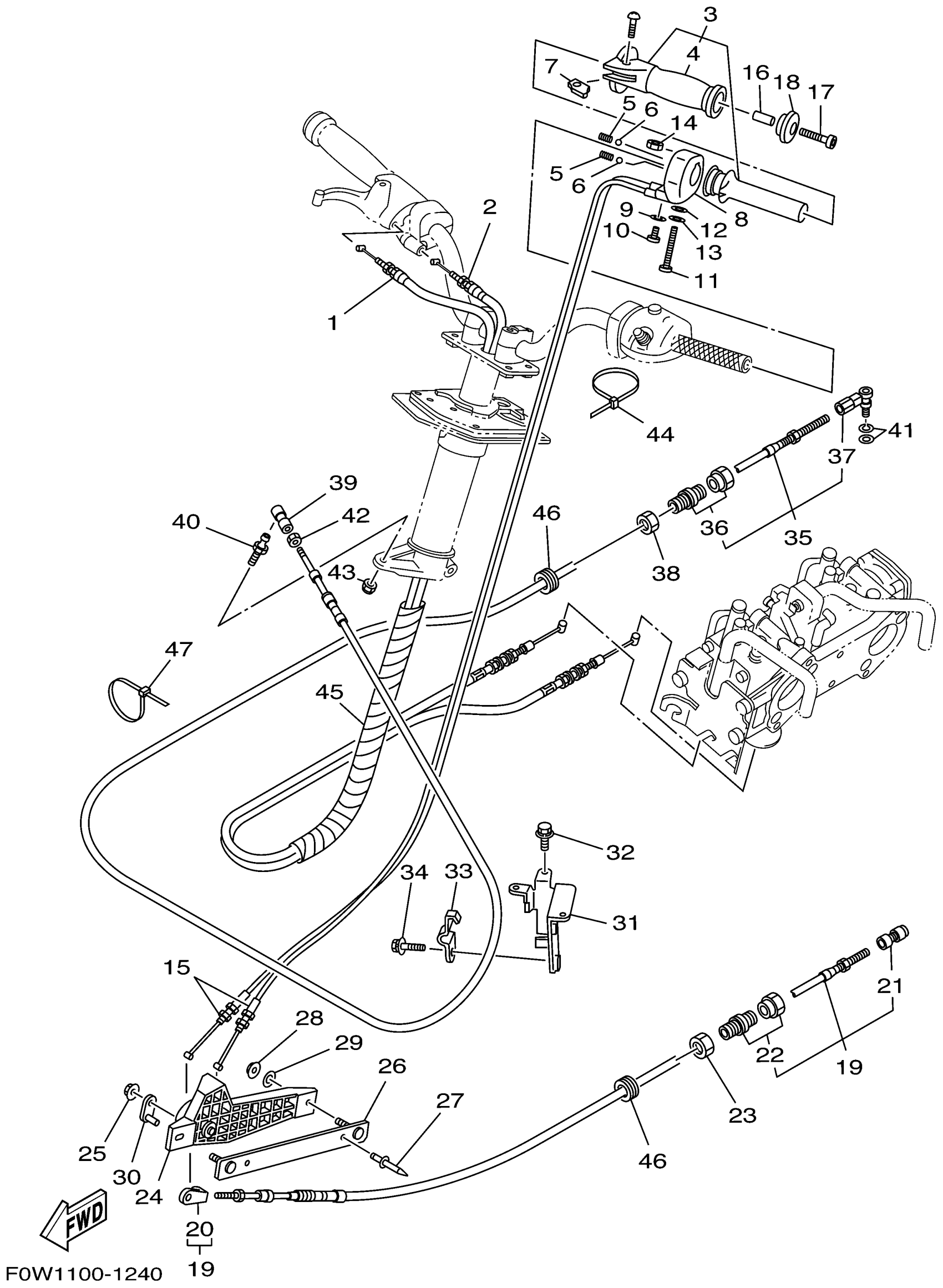

Yamaha GP800AZ (GP800R) F0W1 2001 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

68A-67252-00-00

Unavailable

2

CABLE, CHOKE

68A-67242-00-00

Unavailable

3

GRIP, HANDLE ASSY.

GP7-U157A-00-00

Unavailable

4

. GRIP, HANDLE

GP7-U155C-00-00

Unavailable

5

SPRING

GP7-U152P-00-00

Unavailable

6

BALL

GP7-U152R-00-00

Unavailable

7

LEVER ASSY

GP7-U151M-00-00

Unavailable

8

HOUSING ASSY

GP7-U152M-00-00

Unavailable

9

WASHER, PLAIN (646)

92990-04600-00

$5.99

10

SCREW, BINDING (M01)

98980-04010-00

$6.99

11

SCREW PAN HEAD

98580-06565-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

WASHER

9299R-06100-00

Unavailable

14

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

15

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

16

COLLAR

90387-05800-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

18

GRIP, END

GP7-U155F-00-00

Unavailable

19

CABLE,NOZZLE CONTROL 3

F0X-6153E-19-00

Unavailable

20

. END, CABLE

GH1-U046C-00-00

Unavailable

21

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

22

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

23

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

24

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

25

NUT, NYLON

9572R-06300-00

Unavailable

26

BASE, REMOCON.

F0X-U4958-00-00

Unavailable

27

RIVET, BLIND

90267-489U6-00

Unavailable

28

NUT, NYLON

9572R-06300-00

Unavailable

29

WASHER

9299R-06200-00

Unavailable

30

PIN

F0D-U152C-10-00

Unavailable

31

BRACKET, STOPPER CABLE

F0X-61467-00-00

Unavailable

32

BOLT, WITH WASHER

90119-06827-00

Unavailable

33

STOPPER, CABLE

F0X-61468-00-00

Unavailable

34

BOLT, WITH WASHER

90119-06830-00

Unavailable

35

CABLE, STEERING

F0X-U1481-10-00

Unavailable

36

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

37

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

38

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

39

SHAFT,JOINT BALL

GK5-U146F-00-00

Unavailable

40

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable

41

WASHER, PLATE

90201-06906-00

Unavailable

42

NUT

9538R-06700-00

Unavailable

43

NUT, NYLON

9572R-06300-00

Unavailable

44

BAND

90601-200U2-00

Unavailable

45

HOSE, WITH UNION

90448-25800-00

Unavailable

46

GROMMET

90480-279U1-00

Unavailable

47

BAND

90601-200U2-00

Unavailable
