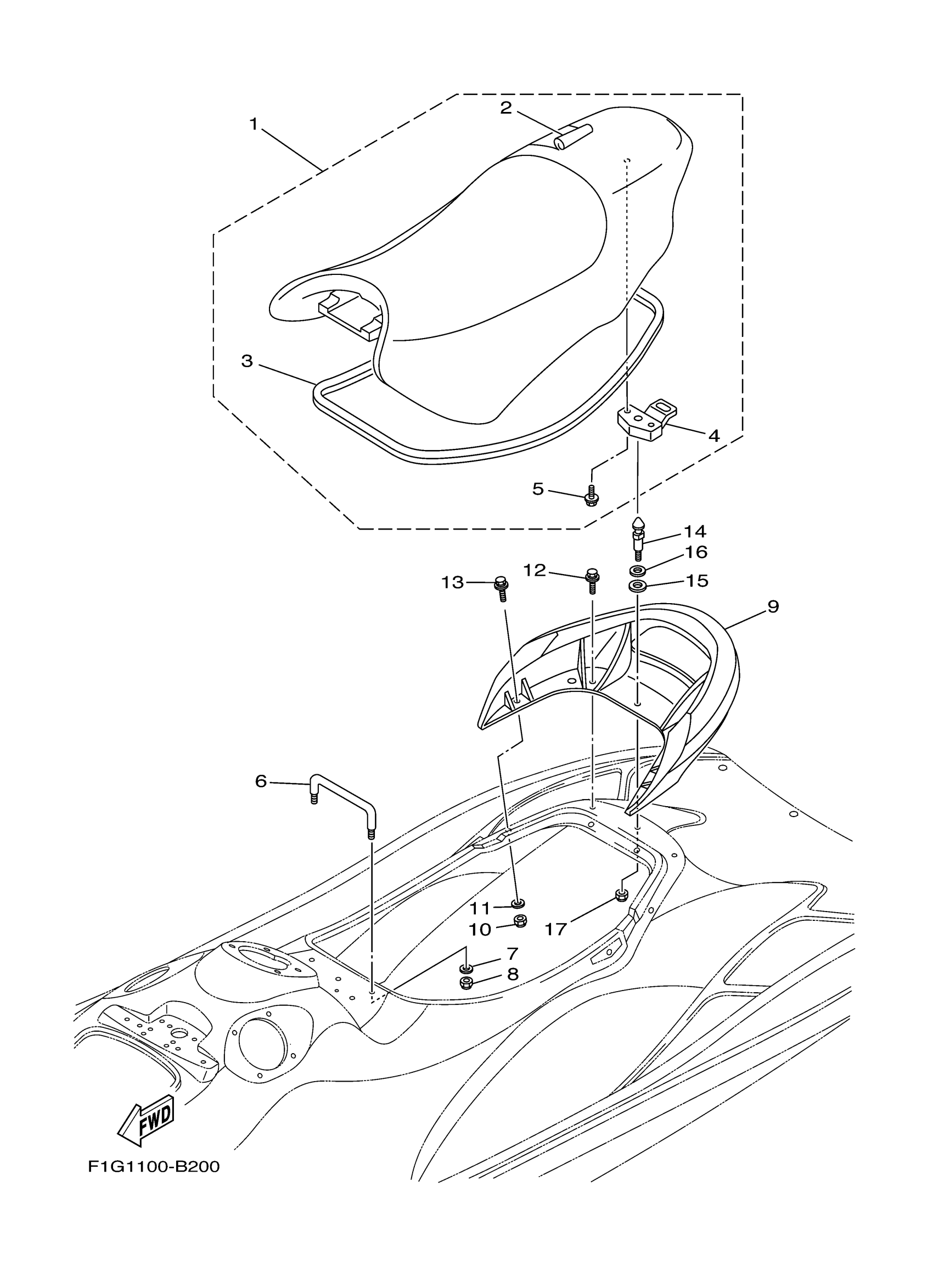

Yamaha GP800AD (WaveRunner GP800R) F0WA 2005 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY (SILVER)

F1G-U371A-30-00

Unavailable

2

. COVER, SEAT 1

F1G-U371B-30-00

Unavailable

3

PACKING

F0X-U2664-00-00

Unavailable

4

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

STAY, SEAT 1

F0X-6378C-00-00

Unavailable

7

WASHER, PLATE

90201-099U3-00

Unavailable

8

NUT, NYLON (6J8)

95780-08300-00

Unavailable

9

GRIP, HAND

F0X-U271B-00-00

Unavailable

10

NUT, NYLON (6J8)

95780-08300-00

Unavailable

11

WASHER

9299R-08600-00

Unavailable

12

BOLT, WITH WASHER

90119-08828-00

Unavailable

13

BOLT, WITH WASHER

90119-08829-00

Unavailable

14

PIN

F0X-U3774-00-00

Unavailable

15

PACKING 1

F0X-6375E-00-00

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

17

NUT, NYLON

9572R-10300-00

Unavailable
