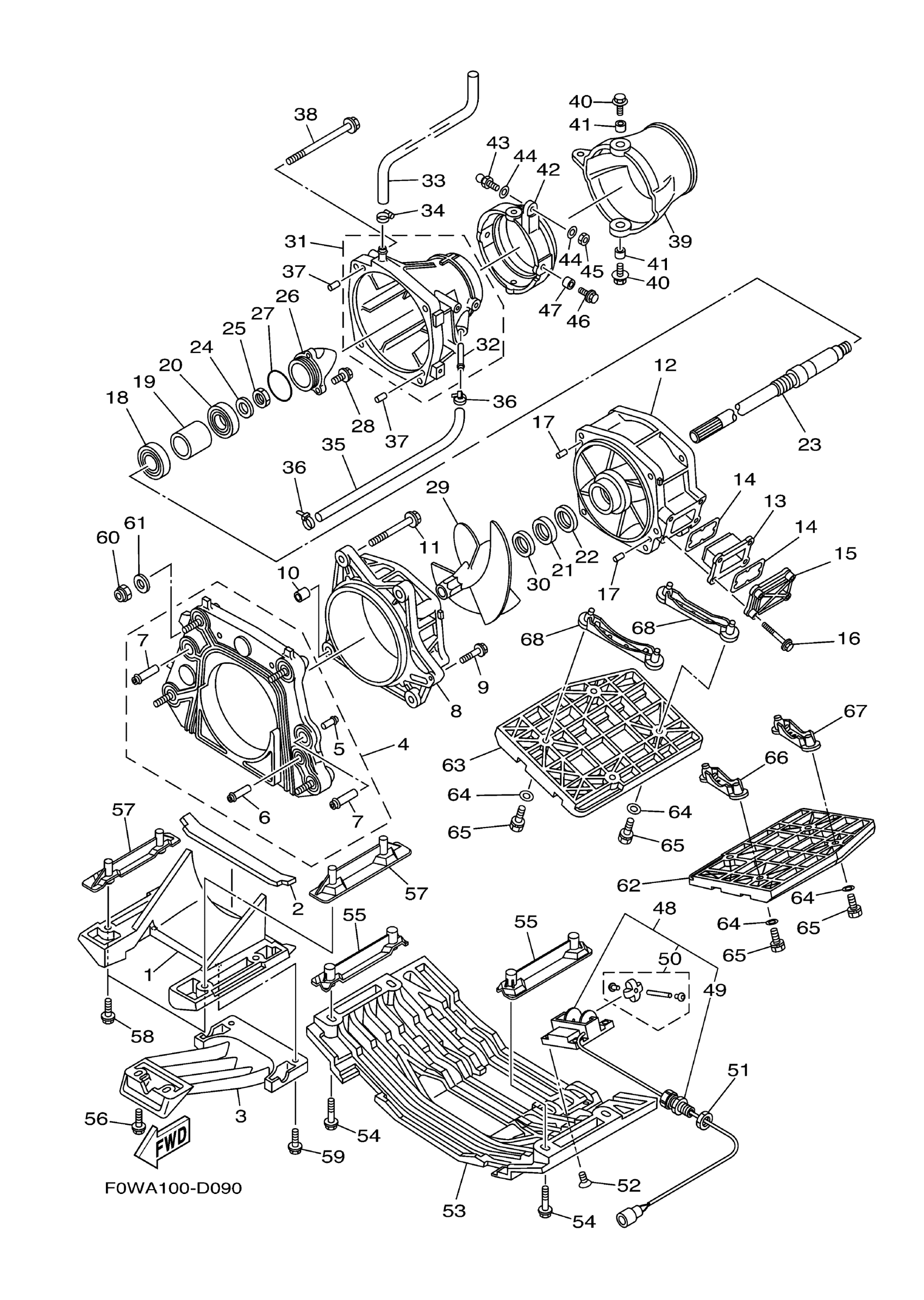

Yamaha GP800AD (WaveRunner GP800R) F0WA 2005 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

67X-51311-00-94

Unavailable

2

FELT, PACKING

67X-R1367-00-00

Unavailable

3

SCREEN, INTAKE

67X-51333-00-94

Unavailable

4

PLATE, TRANSOM

66V-G5831-02-00

Unavailable

5

. NIPPLE

65A-R1129-00-00

Unavailable

6

. NIPPLE

66V-51129-01-00

Unavailable

7

. NIPPLE

66V-51129-10-00

$15.89

8

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

9

BOLT, WITH WASHER

90119-06894-00

$1.37

10

PIN, DOWEL(4JT)

99590-14016-00

$3.41

11

BOLT, WITH WASHER

90119-10811-00

$1.37

12

DUCT, IMPELLER

66V-51315-01-00

$173.57

13

FILTER

66V-46882-00-00

$5.91

14

. O-RING

66V-42414-00-00

$5.18

15

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

16

BOLT,WITH WASHER

90119-06898-00

$3.43

17

PIN, DOWEL (614)

93606-12019-00

Unavailable

18

BEARING (6K8)

93306-205U1-00

Unavailable

19

SPACER 1

65V-45538-00-00

$29.88

20

BEARING

93306-304XB-00

$17.22

21

OIL SEAL

93101-28M66-00

Unavailable

22

OIL SEAL

93101-28002-00

$13.40

23

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

24

WASHER

9299R-16600-00

Unavailable

25

NUT

95317-16700-00

$4.55

26

CAP KIT

65A-R1326-10-KT

Unavailable

27

. O-RING

93210-464A3-00

$2.95

28

BOLT,WITH WASHER

90119-06890-00

$1.07

29

IMPELLER

68A-R1321-00-00

Unavailable

30

SPACER

66V-R1348-10-00

$12.91

31

NOZZLE

67X-51318-00-94

Unavailable

32

. NIPPLE,HOSE

63M-51334-00-00

$21.95

33

PIPE 1

67X-51673-00-00

$30.99

34

BAND, HOSE 18

90601-118UF-00

$2.07

35

HOSE (L380)

90445-14M25-00

Unavailable

36

CLAMP

90465-10098-00

$1.68

37

PIN, DOWEL (614)

93606-12019-00

Unavailable

38

BOLT, WITH WASHER

90119-10807-00

$5.44

39

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

40

BOLT, WITH WASHER

90119-08852-00

$3.79

41

COLLAR(6R7)

90387-08M06-00

Unavailable

42

RING, TRIM

66G-51190-00-94

$139.38

43

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

44

WASHER,PLATE

90201-068M4-00

Unavailable

45

NUT

9538R-06700-00

$1.01

46

BOLT, WITH WASHER

90119-08852-00

$3.79

47

COLLAR(6R7)

90387-08M06-00

Unavailable

48

SENSOR SPEED

GJ1-U8K31-03-00

$131.73

49

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

50

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63

51

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

52

SCREW, FLAT HEAD

9878R-05512-00

Unavailable

53

PLATE 2

F1G-U273B-01-00

Unavailable

54

BOLT, WITH WASHER

90119-08829-00

$3.88

55

BRACKET 2

F1G-U8572-02-00

$18.66

56

BOLT, WITH WASHER

90119-06896-00

$5.03

57

BRACKET 1

F1G-U8571-02-00

$15.07

58

BOLT, WITH WASHER

90119-08829-00

$3.88

59

BOLT,WITH WASHER

90119-06890-00

$1.07

60

NUT, NYLON

9572R-10300-00

$3.37

61

WASHER, PLATE

90201-10801-00

$3.52

62

PLATE, STEP 2

F1G-U884S-01-00

Unavailable

63

PLATE, STEP 1 (RH)

F1G-U884R-01-00

Unavailable

64

COLLAR

90387-07803-00

Unavailable

65

BOLT, WITH WASHER

90119-06892-00

$3.79

66

BED, WATER LOCK COMP. 1

F1G-6880A-00-00

Unavailable

67

PLATE, STEP 1

F0X-6885R-00-00

Unavailable

68

PLATE, STEP 2

F0X-6885S-00-00

$33.99
