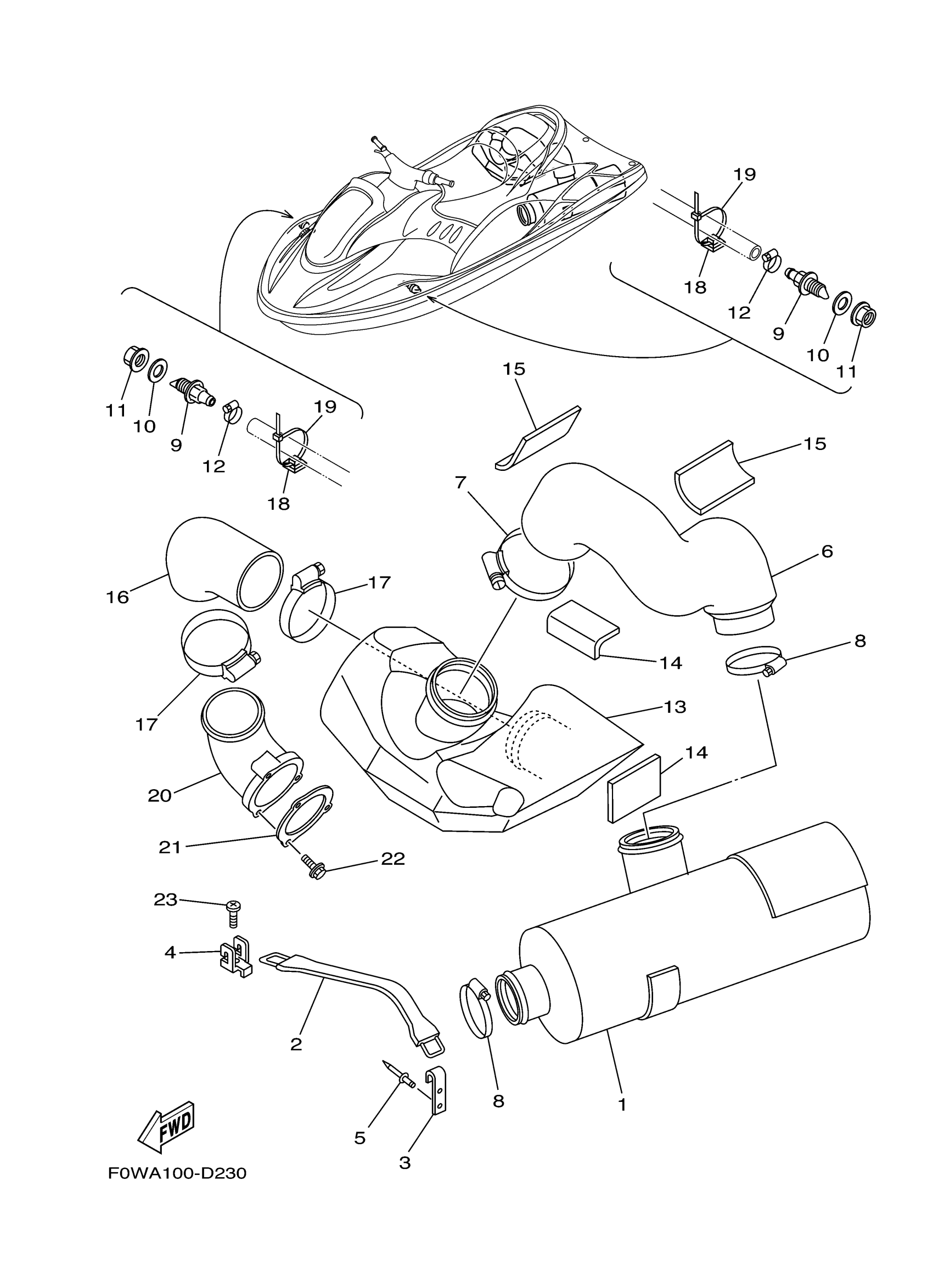

Yamaha GP800AD (WaveRunner GP800R) F0WA 2005 EXHAUST 2 Diagram

#

Description
Price

1

WATER LOCK COMP.

F0W-67550-01-00

Unavailable

2

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

3

HOOK A

GA7-65772-00-00

Unavailable

4

HOOK A

EW2-U5772-00-00

Unavailable

5

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

6

HOSE, EXHAUST

F0W-U7555-00-00

Unavailable

7

HOSE CLAMP ASSY

90450-99801-00

Unavailable

8

BAND, HOSE 75

90601-175UR-00

Unavailable

9

PILOT, WATER

F1G-6753B-00-00

Unavailable

10

GASKET

F1B-67564-00-00

Unavailable

11

NUT

F0X-62733-00-00

Unavailable

12

BAND, HOSE 18

90601-118UF-00

Unavailable

13

TANK, WATER

F0X-U4261-13-00

Unavailable

14

MAT, WATER LOCK

GP8-6755J-00-00

Unavailable

15

MAT

GU0-67593-00-00

Unavailable

16

HOSE, EXHAUST 2

F0X-U758C-00-00

Unavailable

17

BAND, HOSE 95

90601-195UD-00

Unavailable

18

BASE, CLAMP

90600-900U6-00

Unavailable

19

CLAMP(JN6)

90464-40825-00

Unavailable

20

THRU-HULL,EXHAUST

F0D-67565-01-00

Unavailable

21

PACKING

F0D-U7525-01-00

Unavailable

22

BOLT, WITH WASHER

90119-06896-00

Unavailable

23

BOLT, WITH WASHER

90119-06830-00

Unavailable
