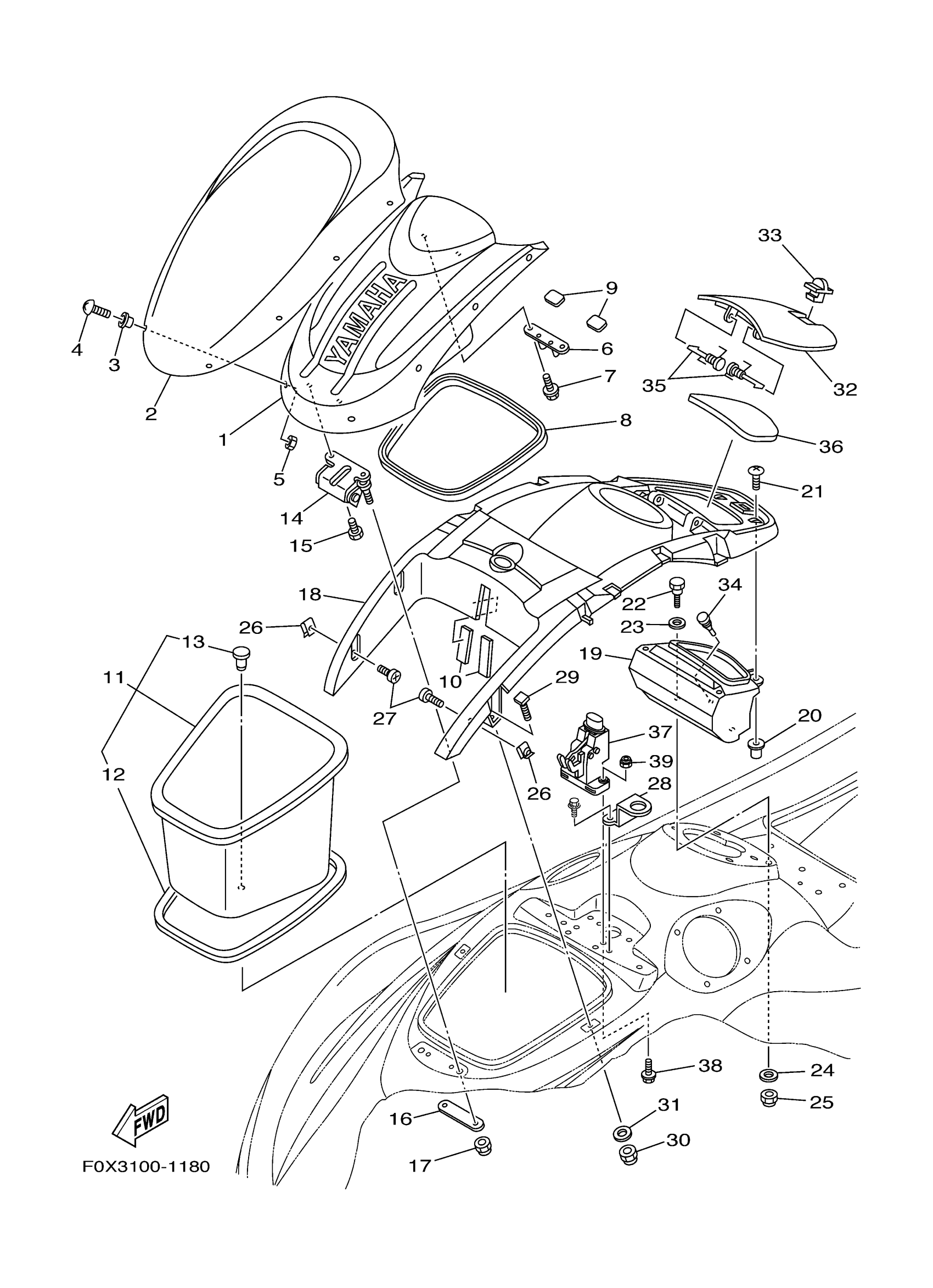

Yamaha GP800AD (WaveRunner GP800R) F0WA 2005 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F0X-U517B-00-00

Unavailable

2

VISOR

F0X-U515N-00-00

Unavailable

3

BUSH, SOLID (16G)

90381-05041-00

$9.49

4

SCREW

90149-05919-00

Unavailable

5

NUT

90179-05800-00

Unavailable

6

HOOK, LID LOCK

F0X-6517F-01-00

Unavailable

7

BOLT, WITH WASHER

90119-069UJ-00

Unavailable

8

PACKING 3

F0X-U266B-00-00

Unavailable

9

DAMPER 1

F0X-U515D-00-00

Unavailable

10

DAMPER 2

F0X-U515E-02-00

$1.99

11

BOWLOCKER ASSY

F0X-U475A-00-00

Unavailable

12

.. PACKING,6

F0X-U266E-01-00

Unavailable

13

. PLUG, BLIND

90605-502U1-00

Unavailable

14

HINGE, LID

F0X-6517D-00-00

Unavailable

15

BOLT

90101-06026-00

Unavailable

16

PLATE, HINGE LID

F0X-6518E-00-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

Unavailable

18

COVER, CENTER

F0X-U5554-00-00

Unavailable

19

BOX GLOVE

F0X-U516P-00-00

Unavailable

20

NUT

90179-05801-00

Unavailable

21

SCREW

90149-05919-00

Unavailable

22

BOLT

90109-08902-00

Unavailable

23

WASHER, PLATE

90202-10922-00

Unavailable

24

WASHER

9299R-08200-00

Unavailable

25

NUT, NYLON (6J8)

95780-08300-00

Unavailable

26

NUT, SPRING(GJ3)

90183-06902-00

Unavailable

27

BOLT

90111-06041-00

Unavailable

28

BRACKET, COVER CENTER 1

F0X-6555D-00-00

Unavailable

29

BRACKET, COVER CENTER 2

F0X-6555E-00-00

Unavailable

30

NUT, NYLON

9572R-06300-00

Unavailable

31

WASHER

9299R-06200-00

Unavailable

32

LID HATCH (YAMAHA BLACK)

F0X-U517H-31-00

Unavailable

33

LOCK

GU2-62875-02-00

Unavailable

34

. PLUG

90605-502U2-00

Unavailable

35

PIN, HINGE

F0X-6517R-01-00

Unavailable

36

PACKING CASE

F0X-U519D-02-00

Unavailable

37

LOCK, LID

F0X-6517C-01-00

Unavailable

38

BOLT, WITH WASHER

90119-06824-00

Unavailable

39

NUT, NYLON

9572R-06300-00

Unavailable
