Description

Price

1

BOLT, WITH WASHER

90119-08800-00

$4.31

2

CLAMP(62T)

90465-12M56-00

$6.64

3

HOUSING

66E-8552A-00-94

$195.57

4

COVER, CASE

66E-8552E-00-00

Unavailable

5

GASKET, TERMINAL

66E-81921-00-00

$55.87

6

BOLT

90109-05MA0-00

$12.99

7

SCREW, TAPPING

97780-60425-00

Unavailable

8

MARK 3

6R7-83623-40-00

$7.06

9

CLAMP

90465-12M53-00

$4.85

10

LABEL, CAUTION 7

60E-83627-00-00

$4.41

11

CLAMP(6E8)

90465-13M39-00

$4.47

12

GASKET

6M6-81844-00-00

$10.99

13

CAP

6M6-8132W-00-00

$11.01

14

FUSE HOLDER ASSY

66E-82150-00-00

Unavailable

15

FUSE (10A)

1E6-82151-00-00

$5.80

16

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

17

C.D.I. UNIT ASSY

66E-85540-00-00

$344.10

18

BAND

64X-85546-00-00

Unavailable

19

CLAMP

90464-06M29-00

$6.18

20

STARTER RELAY ASSY

68N-81940-00-00

$110.28

21

BOLT

97085-06010-00

$1.21

22

WASHER, SPRING

92995-06100-00

$2.87

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

RECTIFIER & REGULATOR ASSY

63M-81960-00-00

Unavailable

25

BOLT(GH1)

97080-06012-00

$2.27

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

IGNITION COIL ASSY

64X-85570-01-00

$241.10

28

. CAP, PLUG

62E-82371-11-00

$41.16

29

. CAP, PLUG

62E-82371-11-00

$41.16

30

GROMMET

90480-06M43-00

$5.69

31

CLAMP

90465-10098-00

$2.24

32

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.44

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

CLAMP, CORD

65U-81317-10-00

$6.88

35

SCREW, PAN HEAD

98580-06016-00

$2.78

36

WASHER, PLAIN (646)

92990-06600-00

Unavailable

37

CLAMP

90465-10098-00

$2.24

38

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

$3.80

39

EXTENSION, WIRE LEAD

68A-82553-10-00

$536.75

40

WIRE, LEAD

62E-82117-20-00

$86.75

41

WIRE, LEAD

68A-82117-10-00

$79.40

42

THERMO SWITCH ASSY

68A-82560-01-00

Unavailable

43

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

44

WASHER, SPRING

92995-06100-00

$2.87

45

WIRE, LEAD

61L-82117-00-00

$102.93

46

COLLAR

90387-06M05-00

$6.83

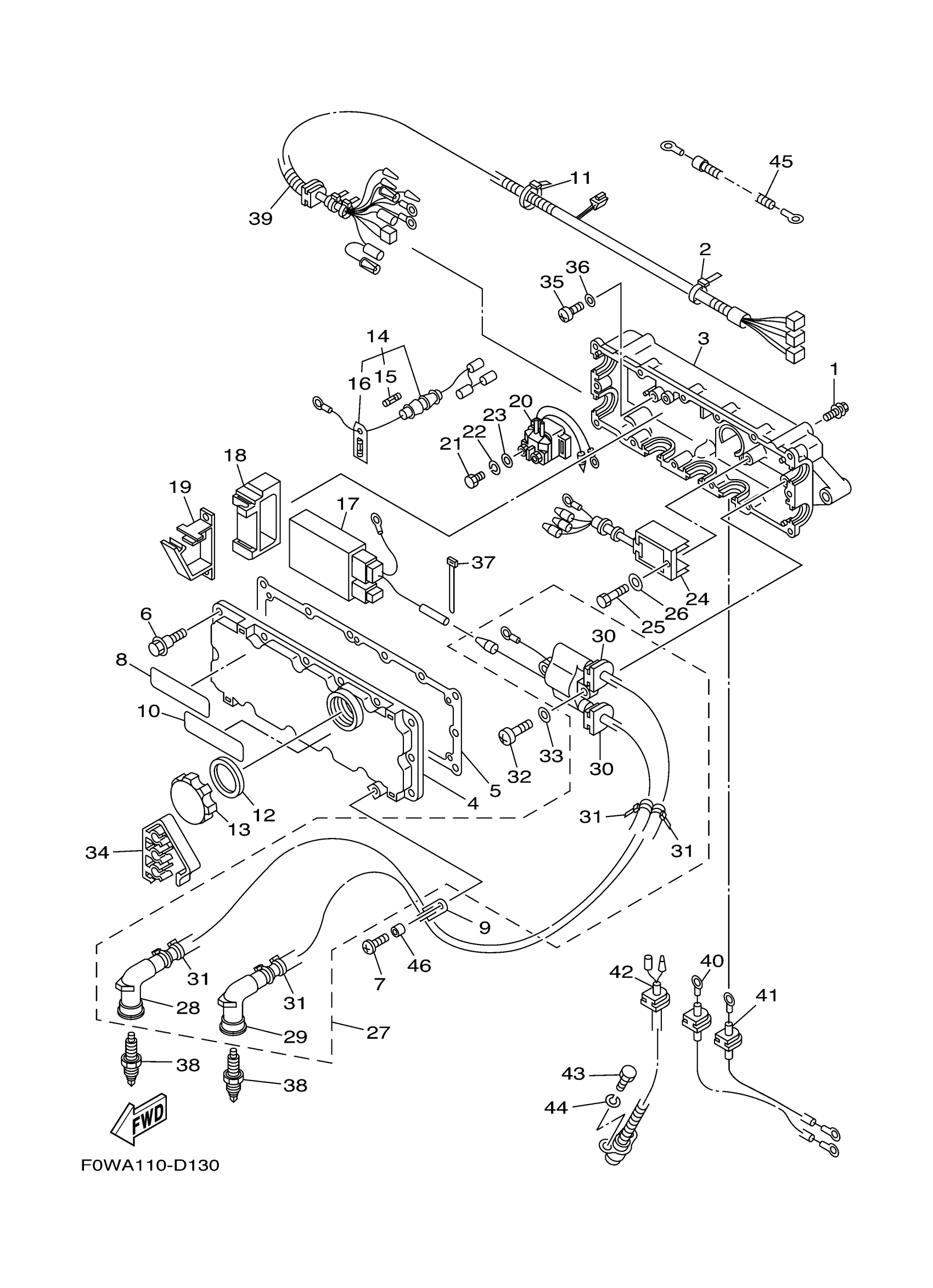

Yamaha GP800AD (WaveRunner GP800R) F0WA 2005 ELECTRICAL 1 Diagram
