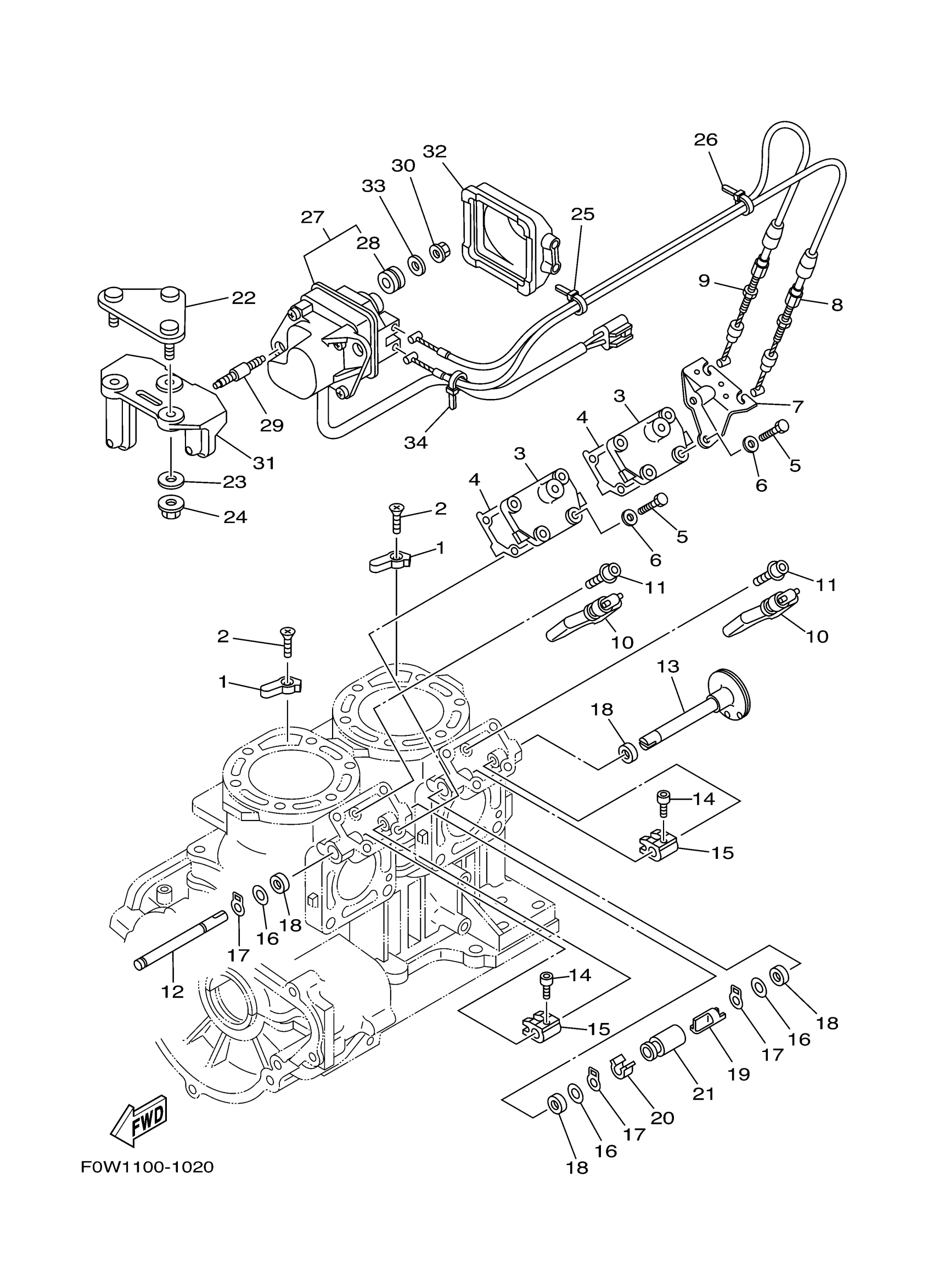

Yamaha GP800AD (WaveRunner GP800R) F0WA 2005 CYLINDER CRANKCASE 2 Diagram

#

Description
Price

1

ANODE

66E-11325-00-00

$10.63

2

SCREW, FLAT HEAD

98780-05020-00

$2.16

3

COVER

66E-1131M-01-00

Unavailable

4

GASKET, COVER

66E-1131B-02-00

$10.75

5

BOLT(62Y)

97013-06025-00

$1.33

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

BRACKET 1

66E-11998-10-00

$241.78

8

CABLE, PULLEY 1

66E-1133E-10-00

$144.76

9

CABLE, PULLEY 2

66E-1133F-10-00

$135.81

10

VALVE ASSY.

66E-1131S-10-00

$213.42

11

BOLT, HEXAGON SOCKET HEAD

90110-05016-00

$2.69

12

SHAFT 1

66E-1131V-00-00

Unavailable

13

PULLEY, SHAFT

66E-1132C-00-00

Unavailable

14

BOLT,SOCKET

91317-04008-00

$5.75

15

LEVER, LINK

60T-11832-00-00

$34.31

16

WASHER, PLATE

90201-08M09-00

Unavailable

17

CIRCLIP

93410-08M12-00

Unavailable

18

OIL SEAL

93109-08M07-00

$9.87

19

JOINT 1

66E-1131H-00-00

$4.48

20

JOINT 2

66E-1131J-10-00

$2.58

21

COVER, JOINT

66E-1131C-10-00

$3.03

22

BRACKET, YPVS

GU0-6824E-00-00

Unavailable

23

WASHER

9299R-08200-00

Unavailable

24

NUT, NYLON (6J8)

95780-08300-00

$11.48

25

BAND

90601-200U2-00

$3.29

26

BAND

90601-200U2-00

$3.29

27

SERVO MOTOR ASSY

66E-85820-20-00

$901.48

28

GROMMET 839774310000

90480-14023-00

Unavailable

29

BOLT, STUD

90116-06M67-00

Unavailable

30

NUT, NYLON

9572R-06300-00

$2.93

31

BRACKET, REFLECTOR 1

66E-85112-00-94

Unavailable

32

COVER, WIRE

66E-85825-00-00

$23.87

33

WASHER, PLATE

90201-06020-00

Unavailable

34

CLAMP

90465-10098-00

$2.24
