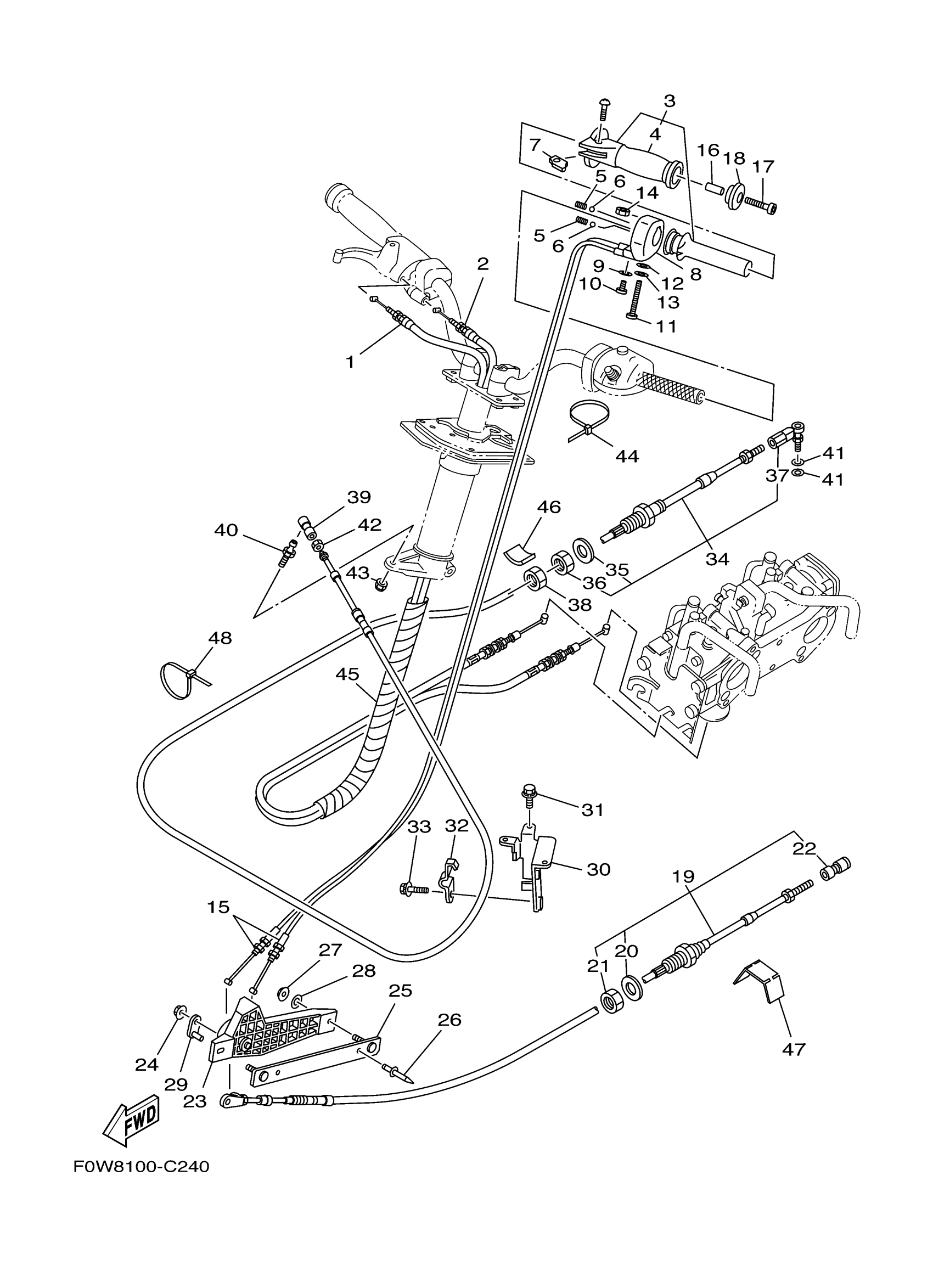

Yamaha GP800AD (WaveRunner GP800R) F0WA 2005 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

68A-67252-00-00

Unavailable

2

CABLE, CHOKE

68A-67242-00-00

Unavailable

3

GRIP, HANDLE ASSY.

GP7-U157A-00-00

Unavailable

4

. GRIP, HANDLE

GP7-U155C-00-00

Unavailable

5

SPRING

GP7-U152P-00-00

Unavailable

6

BALL

GP7-U152R-00-00

Unavailable

7

LEVER ASSY

GP7-U151M-00-00

Unavailable

8

HOUSING ASSY

GP7-U152M-00-00

Unavailable

9

WASHER, PLAIN (646)

92990-04600-00

$5.99

10

SCREW, BINDING (M01)

98980-04010-00

$6.99

11

SCREW PAN HEAD

98580-06565-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

WASHER

9299R-06100-00

Unavailable

14

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

15

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

16

COLLAR

90387-05800-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

18

GRIP, END

GP7-U155F-00-00

Unavailable

19

CABLE, NOZZLE CONTROL 3

F0W-6153E-01-00

Unavailable

20

. PACKING C

F1B-61438-00-00

Unavailable

21

NUT

F1B-6151S-01-00

Unavailable

22

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

23

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

24

NUT, NYLON

9572R-06300-00

Unavailable

25

BASE, REMOCON.

F0X-U4958-00-00

Unavailable

26

RIVET, BLIND

90267-489U6-00

Unavailable

27

NUT, NYLON

9572R-06300-00

Unavailable

28

WASHER

9299R-06200-00

Unavailable

29

PIN

F0D-U152C-10-00

Unavailable

30

BRACKET, STOPPER CABLE

F0X-61467-00-00

Unavailable

31

BOLT, WITH WASHER

90119-06827-00

Unavailable

32

STOPPER, CABLE

F0X-61468-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06830-00

Unavailable

34

CABLE, STEERING

F0W-61481-01-00

Unavailable

35

. PACKING C

F1B-61438-00-00

Unavailable

36

NUT

F1B-6151S-01-00

Unavailable

37

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

38

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

39

SHAFT,JOINT BALL

GK5-U146F-00-00

Unavailable

40

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable

41

WASHER, PLATE

90201-06906-00

Unavailable

42

NUT

9538R-06700-00

Unavailable

43

NUT, NYLON

9572R-06300-00

Unavailable

44

BAND

90601-200U2-00

Unavailable

45

HOSE, WITH UNION

90448-25800-00

Unavailable

46

PACKING, HOSE 2

GJ1-U7578-01-00

Unavailable

47

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

48

BAND

90601-200U2-00

Unavailable
