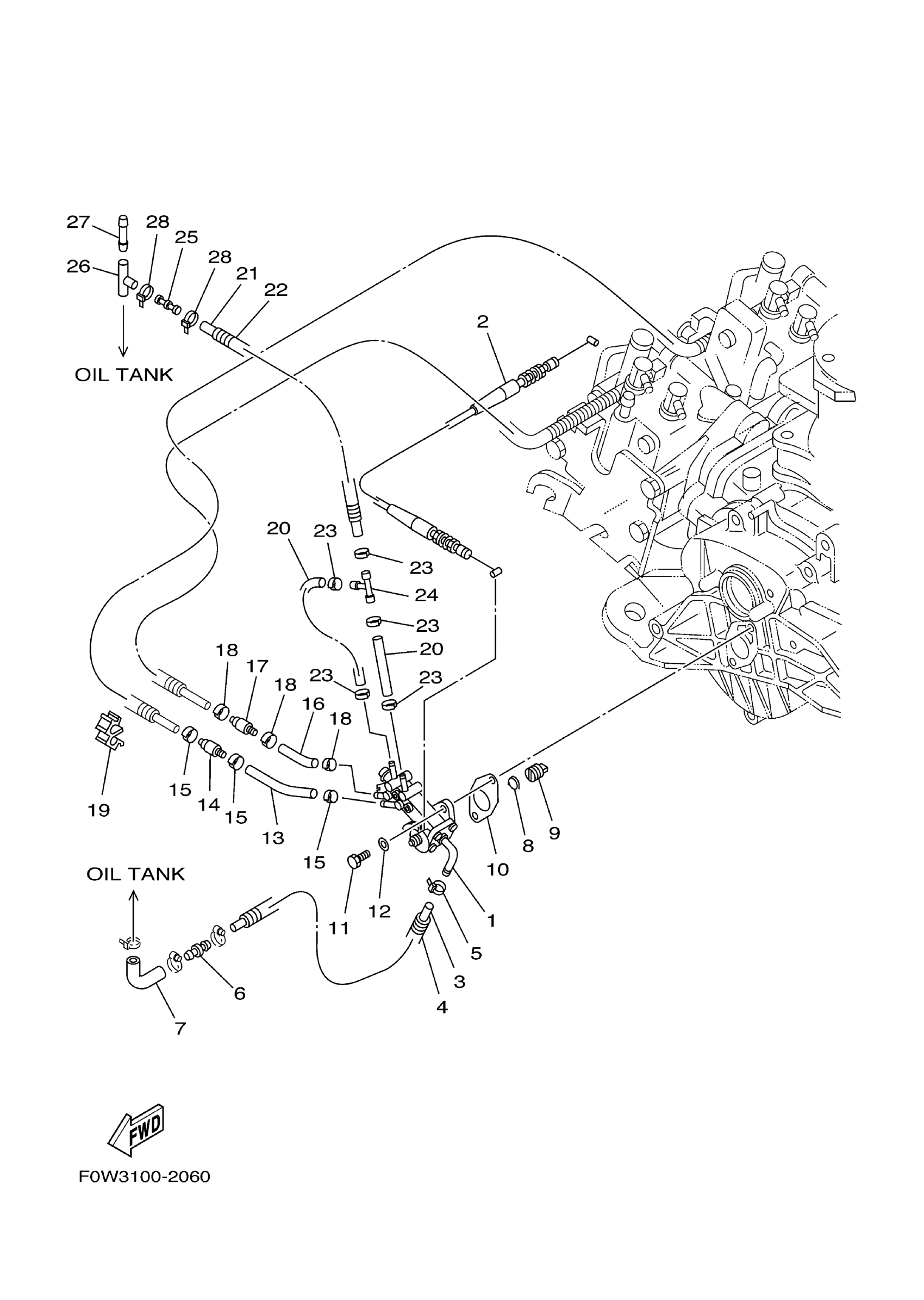

Yamaha GP800AC (GP800R) F0W8 2004 OIL PUMP Diagram
#
Description
Price
1
OIL INJECTION PUMP ASSY
66E-13200-02-00
Unavailable
2
PUMP CABLE ASSY
66E-26320-00-00
Unavailable
3
HOSE (L700)
90445-117F2-00
$30.99
4
HOSE
90446-17M72-00
$8.49
5
CLAMP
90465-10098-00
Unavailable
6
CONNECTION
66V-51142-00-00
Unavailable
7
HOSE (L118)
90445-14M00-00
$5.49
8
SPRING
66E-13469-00-00
Unavailable
9
JOINT
65U-13132-00-00
Unavailable
10
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
11
BOLT(7U8)
97080-06020-00
Unavailable
12
WASHER, PLAIN (646)
92990-06600-00
$2.80
13
HOSE (L200)
90445-07MA3-00
Unavailable
14
VALVE, CHECK
67X-13183-00-00
Unavailable
15
CLIP
90468-02001-00
Unavailable
16
HOSE (L200)
90445-07MA3-00
Unavailable
17
VALVE, CHECK
67X-13183-00-00
Unavailable
18
CLIP
90468-02001-00
Unavailable
19
CLAMP
90464-07M20-00
Unavailable
20
HOSE (L200)
90445-07MA3-00
Unavailable
21
HOSE (L770)
90445-07006-00
Unavailable
22
TUBE (L650)
90447-07002-00
Unavailable
23
CLIP
90468-02001-00
Unavailable
24
PIPE, JOINT 3
6E0-24378-00-00
Unavailable
25
JOINT
63M-13132-00-00
Unavailable
26
PIPE, JOINT 3
63M-24378-00-00
Unavailable
27
PIPE, JOINT 1
6G8-24376-00-00
Unavailable
28
CLAMP
90465-10098-00
Unavailable
