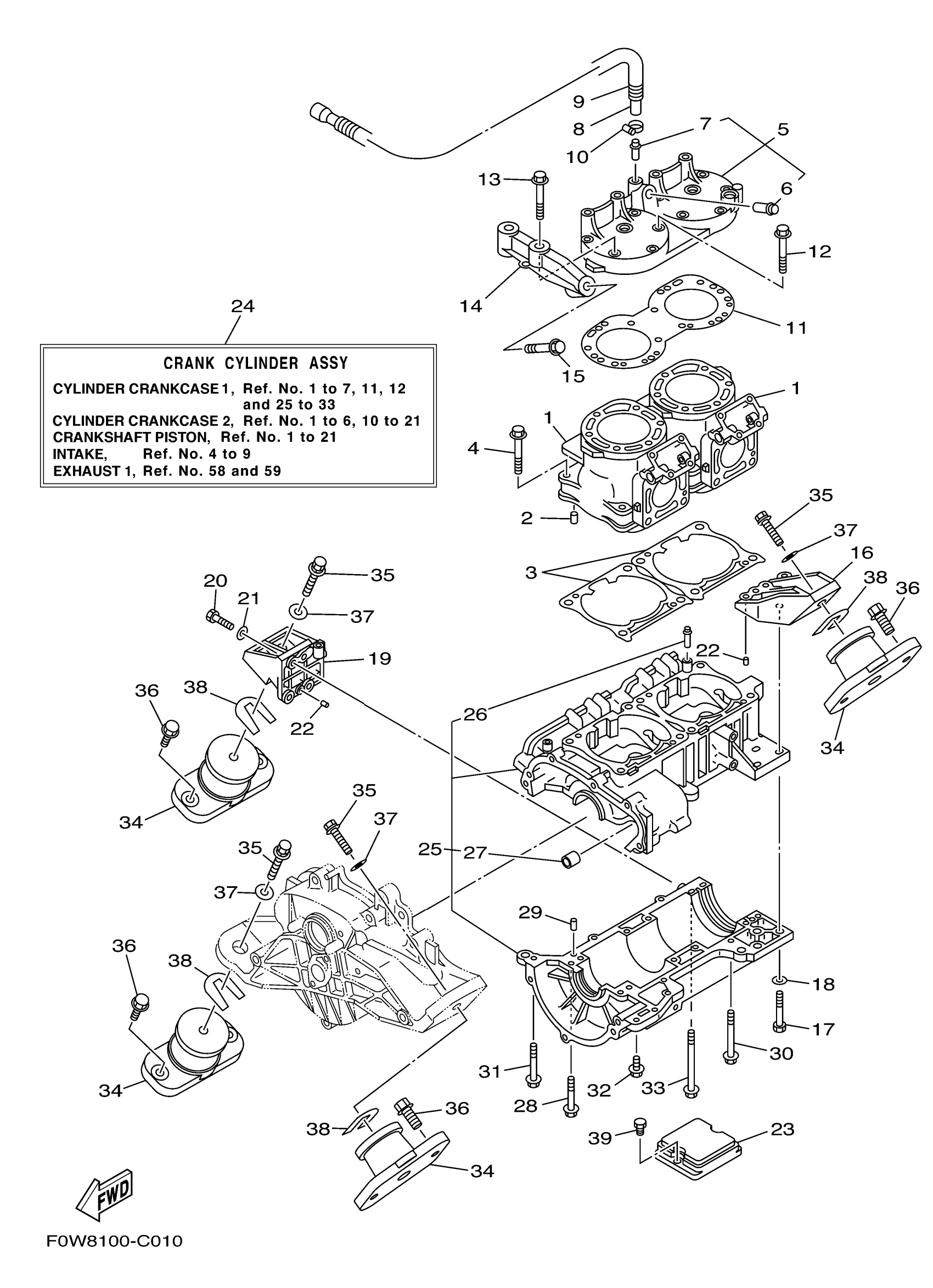

Yamaha GP800AC (GP800R) F0W8 2004 CYLINDER CRANKCASE 1 Diagram

#

Description
Price

1

CYLINDER & PISTON SET

66E-W1130-00-94

$1,006.05

2

PIN, DOWEL (614)

93606-12019-00

$3.05

3

GASKET, CYLINDER

66E-11351-02-00

$21.32

4

BOLT (6F5)

90119-10M07-00

$4.21

5

HEAD, CYLINDER 1

66E-11111-00-8S

Unavailable

6

. NIPPLE

66E-51129-00-00

Unavailable

7

. NIPPLE

6K8-51129-00-00

$9.62

8

HOSE (L1300)

90445-14M22-00

Unavailable

9

TUBE (L1040)

90446-24M94-00

Unavailable

10

HOSE CLAMP ASSY(62T)

90450-14M05-00

$14.92

11

. GASKET, CYLINDER HEAD 1

66E-11181-00-00

$53.99

12

BOLT, WITH WASHER

90119-08MA1-00

$5.00

13

BOLT, WITH WASHER

90119-08MA2-00

Unavailable

14

STAY, MUFFLER 2

66E-14781-10-00

Unavailable

15

BOLT, WITH WASHER

90119-10M00-00

$8.56

16

BRACKET, REAR UPPER 1

66E-21425-10-8S

$160.59

17

BOLT

97013-08045-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

$2.17

19

BRACKET, REAR UPPER 2

66E-21426-10-8S

$104.53

20

BOLT, HEXAGON

97013-08030-00

Unavailable

21

.. WASHER, PLATE

92990-08600-00

$2.17

22

PIN, DOWEL (614)

93606-12019-00

$3.05

23

STOPPER, UPPER MOUNT

67A-44532-00-94

$92.41

24

CRANK CYLINDER ASSY

66E-W0090-13-8S

Unavailable

25

CRANKCASE ASSY

66E-15100-10-00

$833.32

26

NIPPLE

62T-14251-10-00

$4.51

27

. BUSH, SOLID

90380-12M29-00

Unavailable

28

BOLT, WITH WASHER

90119-08M55-00

$2.95

29

PIN, DOWEL (614)

93606-12019-00

$3.05

30

BOLT, WITH WASHER

90119-06M78-00

Unavailable

31

BOLT (6F5)

90119-08M09-00

Unavailable

32

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

33

BOLT, WITH WASHER

90119-08M56-00

Unavailable

34

MOUNT RUBBER

68A-44517-00-94

$101.50

35

BOLT, WITH WASHER

90119-08856-00

$5.17

36

BOLT, WITH WASHER

90119-08829-00

$3.88

37

WASHER, PLATE

90201-099U3-00

$2.16

38

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

38

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

38

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

38

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

38

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

39

BOLT

90101-06917-00

Unavailable
